| 制造商 | Analog Devices |
| 描述 | Dual-Channel, 1.8 GHz to 2.8 GHz, Receiver Front End |
| 页数 / 页 | 15 / 3 — Data Sheet. ADRF5549. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 326 Kb |
| 文件语言 | 英语 |

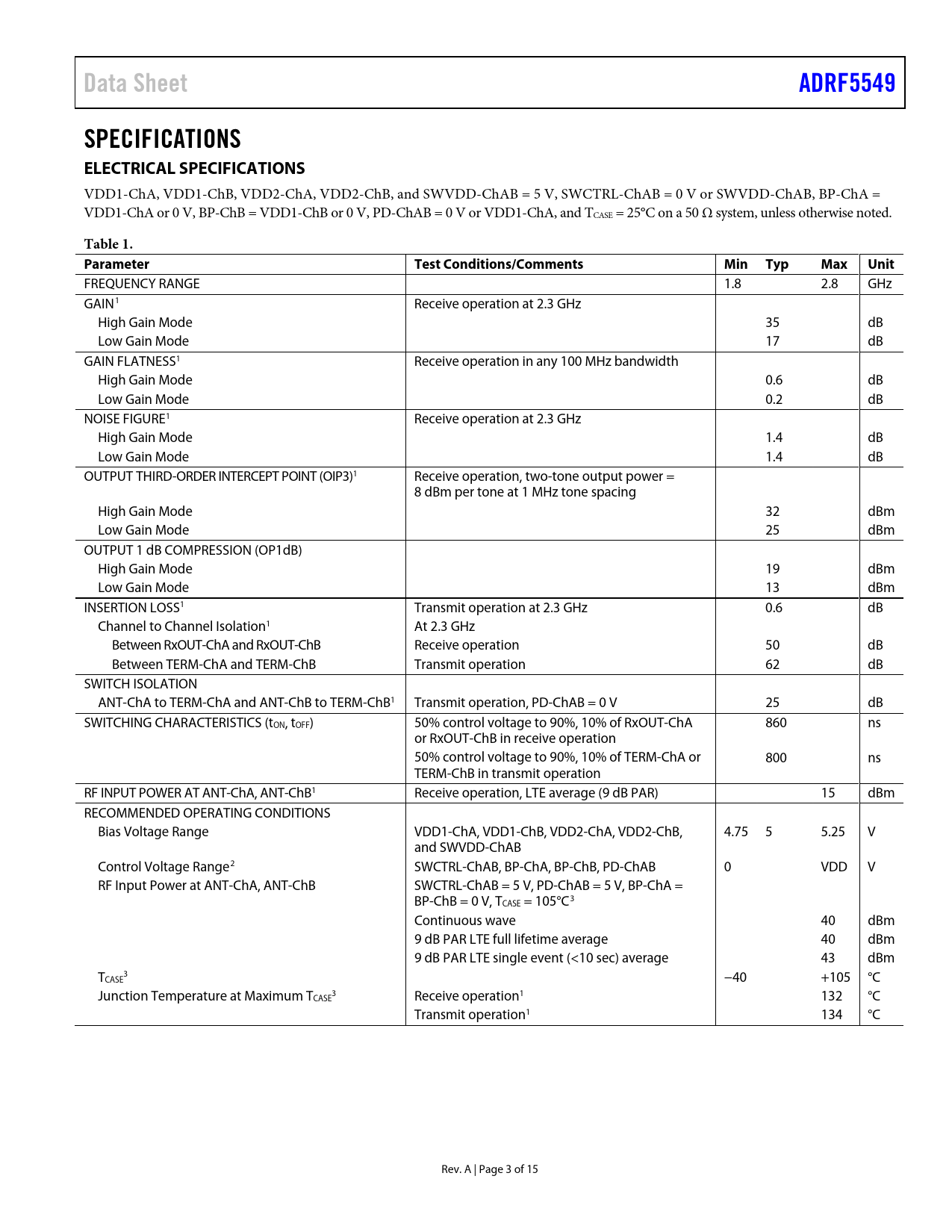

Data Sheet. ADRF5549. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min Typ. Max. Unit
该数据表的模型线
文件文字版本
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4
Data Sheet ADRF5549 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
VDD1-ChA, VDD1-ChB, VDD2-ChA, VDD2-ChB, and SWVDD-ChAB = 5 V, SWCTRL-ChAB = 0 V or SWVDD-ChAB, BP-ChA = VDD1-ChA or 0 V, BP-ChB = VDD1-ChB or 0 V, PD-ChAB = 0 V or VDD1-ChA, and TCASE = 25°C on a 50 Ω system, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 1.8 2.8 GHz GAIN1 Receive operation at 2.3 GHz High Gain Mode 35 dB Low Gain Mode 17 dB GAIN FLATNESS1 Receive operation in any 100 MHz bandwidth High Gain Mode 0.6 dB Low Gain Mode 0.2 dB NOISE FIGURE1 Receive operation at 2.3 GHz High Gain Mode 1.4 dB Low Gain Mode 1.4 dB OUTPUT THIRD-ORDER INTERCEPT POINT (OIP3)1 Receive operation, two-tone output power = 8 dBm per tone at 1 MHz tone spacing High Gain Mode 32 dBm Low Gain Mode 25 dBm OUTPUT 1 dB COMPRESSION (OP1dB) High Gain Mode 19 dBm Low Gain Mode 13 dBm INSERTION LOSS1 Transmit operation at 2.3 GHz 0.6 dB Channel to Channel Isolation1 At 2.3 GHz Between RxOUT-ChA and RxOUT-ChB Receive operation 50 dB Between TERM-ChA and TERM-ChB Transmit operation 62 dB SWITCH ISOLATION ANT-ChA to TERM-ChA and ANT-ChB to TERM-ChB1 Transmit operation, PD-ChAB = 0 V 25 dB SWITCHING CHARACTERISTICS (tON, tOFF) 50% control voltage to 90%, 10% of RxOUT-ChA 860 ns or RxOUT-ChB in receive operation 50% control voltage to 90%, 10% of TERM-ChA or 800 ns TERM-ChB in transmit operation RF INPUT POWER AT ANT-ChA, ANT-ChB1 Receive operation, LTE average (9 dB PAR) 15 dBm RECOMMENDED OPERATING CONDITIONS Bias Voltage Range VDD1-ChA, VDD1-ChB, VDD2-ChA, VDD2-ChB, 4.75 5 5.25 V and SWVDD-ChAB Control Voltage Range2 SWCTRL-ChAB, BP-ChA, BP-ChB, PD-ChAB 0 VDD V RF Input Power at ANT-ChA, ANT-ChB SWCTRL-ChAB = 5 V, PD-ChAB = 5 V, BP-ChA = BP-ChB = 0 V, TCASE = 105°C3 Continuous wave 40 dBm 9 dB PAR LTE full lifetime average 40 dBm 9 dB PAR LTE single event (<10 sec) average 43 dBm T 3 CASE −40 +105 °C Junction Temperature at Maximum T 3 CASE Receive operation1 132 °C Transmit operation1 134 °C Rev. A | Page 3 of 15 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS RECEIVE OPERATION High Gain Mode Low Gain Mode TRANSMIT OPERATION THEORY OF OPERATION SIGNAL PATH SELECT Receive Operation BIASING SEQUENCE APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
