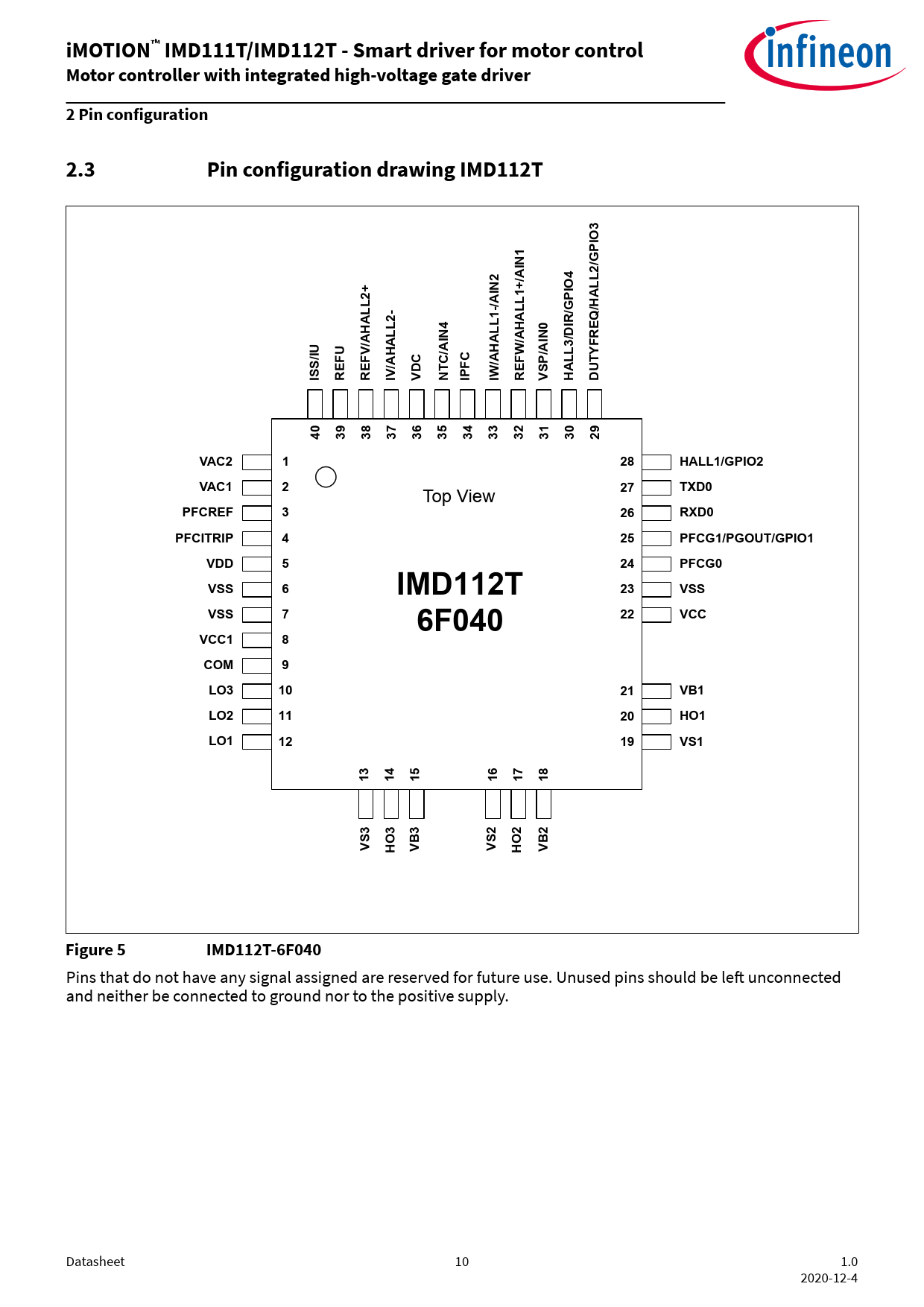

iMOTION™ IMD111T/IMD112T - Smart driver for motor control Motor controller with integrated high-voltage gate driver 2 Pin configuration 2.3 Pin configuration drawing IMD112T ISS/IU REFU REFV/AHALL2+ IV/AHALL2- VDC NTC/AIN4 IPFC IW/AHALL1-/AIN2 REFW/AHALL1+/AIN1 VSP/AIN0 HALL3/DIR/GPIO4 DUTYFREQ/HALL2/GPIO3 40 39 38 37 36 35 34 33 32 31 30 29 VAC2 1 28 HALL1/GPIO2 VAC1 2
Top View
27 TXD0 PFCREF 3 26 RXD0 PFCITRIP 4 25 PFCG1/PGOUT/GPIO1 VDD 5 24 PFCG0 VSS 6 IMD112T 23 VSS VSS 7 22 VCC 6F040 VCC1 8 COM 9 LO3 10 21 VB1 LO2 11 20 HO1 LO1 12 19 VS1 13 14 15 16 17 18 VS3 HO3 VB3 VS2 HO2 VB2 Figure 5 IMD112T-6F040
Pins that do not have any signal assigned are reserved for future use. Unused pins should be left unconnected and neither be connected to ground nor to the positive supply. Datasheet 10 1.0 2020-12-4 Document Outline Features Potential applications Product validation Description Table of contents 1 Block diagram reference 2 Pin configuration 2.1 Pin definitions and functions 2.2 Pin configuration drawing IMD111T 2.3 Pin configuration drawing IMD112T 3 Functional description 3.1 Overview 3.2 Motion Control Engine 3.3 Gate Driver 3.4 Low Side Supply (VCC, VSS and COM) 3.5 High Side Supplies (VB1,2,3 and VS1,2,3) 3.6 Low and High Side Outputs (LO1,2,3 and HO1,2,3) 3.7 Internal Voltage Regulator 3.8 Application diagrams 4 Electrical characteristics and parameters 4.1 General parameters 4.1.1 Parameter Interpretation 4.1.2 Absolute maximum ratings 4.1.3 Pin Reliability in Overload 4.1.4 Operating Conditions 4.2 DC characteristics 4.2.1 Input/Output Characteristics 4.2.2 Analog to Digital Converter (ADC) 4.2.3 Analog comparator characteristics 4.2.4 Power Supply Current 4.2.5 Flash Memory Parameters 4.2.6 Static parameters gate driver 4.2.7 Static parameters voltage regulator 4.3 AC characteristics 4.3.1 Testing Waveforms 4.3.2 On-Chip Oscillator Characteristics 4.3.3 Dynamic parameters gate driver 4.3.4 Timing diagrams 4.4 Motor Control Parameters 4.4.1 PWM Characteristics 4.4.2 Current Sensing 4.4.3 Fault Timing 4.5 Power Factor Correction (PFC) parameters 4.5.1 Boost PFC characteristics 4.5.2 Totem Pole PFC characteristics 4.5.3 PFC Current Sensing 4.6 Control Interface Parameters 4.6.1 Control Input Interfaces 4.6.2 Serial Interface Parameters 4.6.2.1 UART Interface 4.6.3 Over Temperature Input 4.6.4 Pulse Output 5 Device and package specifications 5.1 Quality declaration 5.2 SBSL and Chip-IDs 5.3 Thermal considerations 5.4 Package Outline PG-LQFP-40-1 5.5 Part marking information Revision history Disclaimer
