Datasheet PESD4V0Z2BCDF (Nexperia) - 4
| 制造商 | Nexperia |
| 描述 | Extremely low clamping low capacitance ESD protection |
| 页数 / 页 | 12 / 4 — Nexperia. PESD4V0Z2BCDF. Extremely low clamping low capacitance ESD … |
| 修订版 | 17082020 |
| 文件格式/大小 | PDF / 292 Kb |
| 文件语言 | 英语 |
Nexperia. PESD4V0Z2BCDF. Extremely low clamping low capacitance ESD protection. 9. Characteristics Table 6. Characteristics
该数据表的模型线
文件文字版本
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4

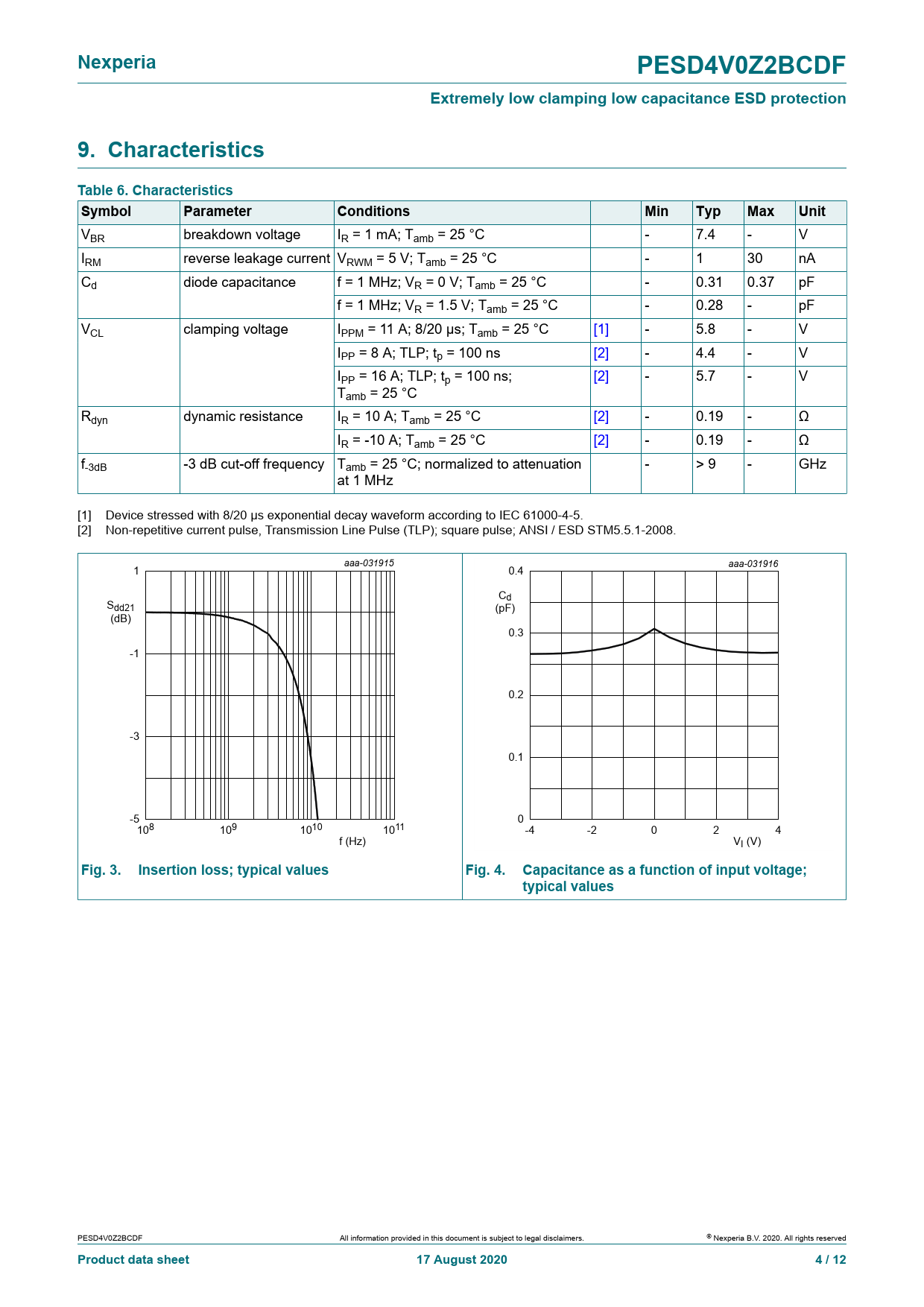

Nexperia PESD4V0Z2BCDF Extremely low clamping low capacitance ESD protection 9. Characteristics Table 6. Characteristics Symbol Parameter Conditions Min Typ Max Unit
VBR breakdown voltage IR = 1 mA; Tamb = 25 °C - 7.4 - V IRM reverse leakage current VRWM = 5 V; Tamb = 25 °C - 1 30 nA Cd diode capacitance f = 1 MHz; VR = 0 V; Tamb = 25 °C - 0.31 0.37 pF f = 1 MHz; VR = 1.5 V; Tamb = 25 °C - 0.28 - pF VCL clamping voltage IPPM = 11 A; 8/20 µs; Tamb = 25 °C [1] - 5.8 - V IPP = 8 A; TLP; tp = 100 ns [2] - 4.4 - V IPP = 16 A; TLP; tp = 100 ns; [2] - 5.7 - V Tamb = 25 °C Rdyn dynamic resistance IR = 10 A; Tamb = 25 °C [2] - 0.19 - Ω IR = -10 A; Tamb = 25 °C [2] - 0.19 - Ω f-3dB -3 dB cut-off frequency Tamb = 25 °C; normalized to attenuation - > 9 - GHz at 1 MHz [1] Device stressed with 8/20 μs exponential decay waveform according to IEC 61000-4-5. [2] Non-repetitive current pulse, Transmission Line Pulse (TLP); square pulse; ANSI / ESD STM5.5.1-2008. aaa-031915 1 aaa-031916 0.4 Cd Sdd21 (pF) (dB) 0.3 -1 0.2 -3 0.1 -5 0 108 1011 1010 109 -4 -2 0 2 4 f (Hz) VI (V)
Fig. 3. Insertion loss; typical values Fig. 4. Capacitance as a function of input voltage; typical values
PESD4V0Z2BCDF All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. All rights reserved
Product data sheet 17 August 2020 4 / 12
