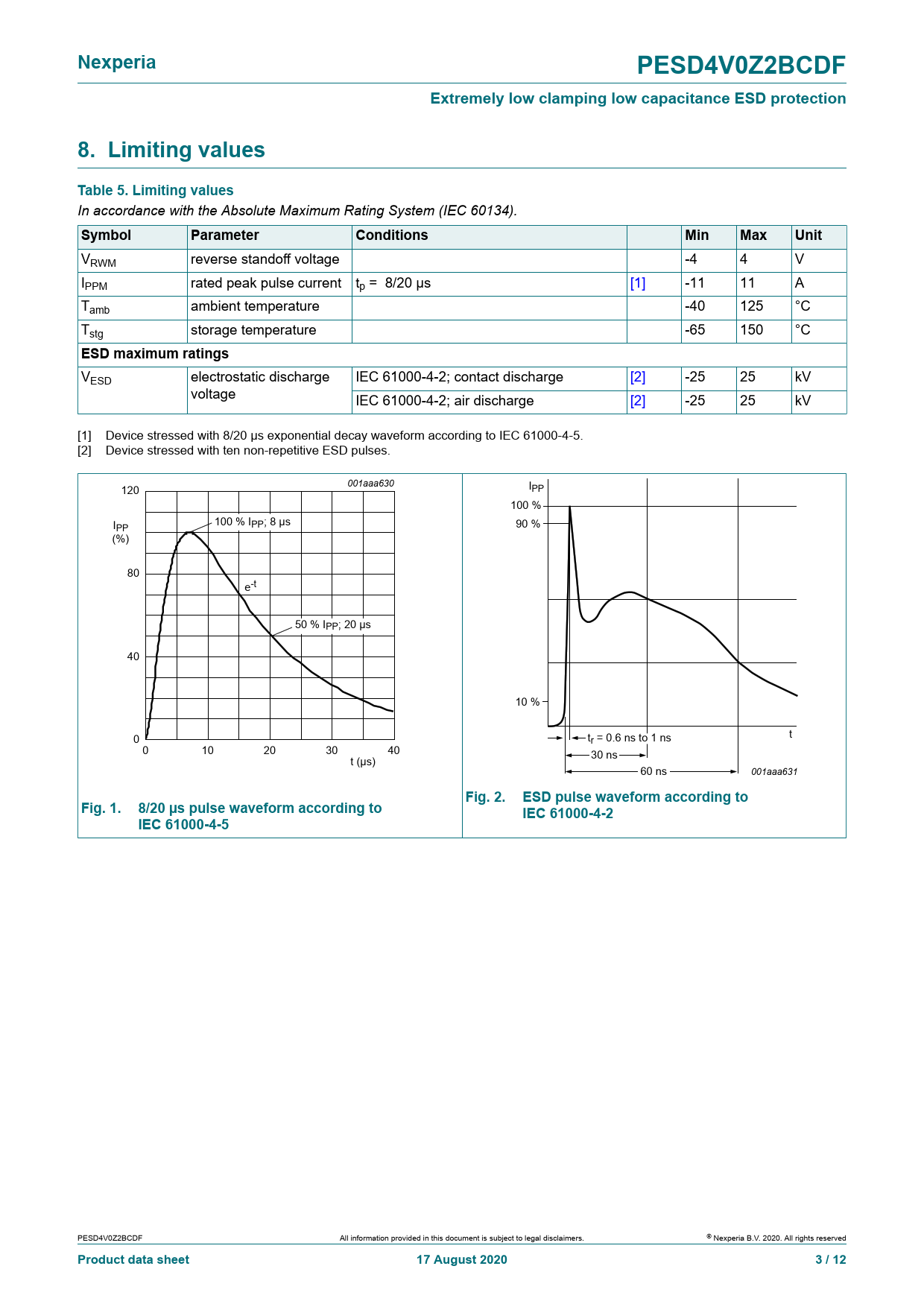

Nexperia. PESD4V0Z2BCDF. Extremely low clamping low capacitance ESD protection. 8. Limiting values Table 5. Limiting values
该数据表的模型线
文件文字版本
link to page 3 link to page 3 link to page 3
Nexperia PESD4V0Z2BCDF Extremely low clamping low capacitance ESD protection 8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VRWM reverse standoff voltage -4 4 V IPPM rated peak pulse current tp = 8/20 µs [1] -11 11 A Tamb ambient temperature -40 125 °C Tstg storage temperature -65 150 °C
ESD maximum ratings
VESD electrostatic discharge IEC 61000-4-2; contact discharge [2] -25 25 kV voltage IEC 61000-4-2; air discharge [2] -25 25 kV [1] Device stressed with 8/20 μs exponential decay waveform according to IEC 61000-4-5. [2] Device stressed with ten non-repetitive ESD pulses. 001aaa630 120 IPP 100 % I 100 % I PP PP; 8 µs 90 % (%) 80 e-t 50 % IPP; 20 µs 40 10 % 0 t tr = 0.6 ns to 1 ns 0 10 20 30 40 t (µs) 30 ns 60 ns 001aaa631
Fig. 2. ESD pulse waveform according to Fig. 1. 8/20 µs pulse waveform according to IEC 61000-4-2 IEC 61000-4-5
PESD4V0Z2BCDF All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. All rights reserved
Product data sheet 17 August 2020 3 / 12
