| 制造商 | NXP |
| 描述 | 2 x 40 W/2 ohm stereo BTL car radio power amplifier with differential inputs and diagnostic outputs |
| 页数 / 页 | 21 / 10 — NXP Semiconductors. TDA8566. 40 W/2. stereo BTL car radio power … |
| 文件格式/大小 | PDF / 132 Kb |
| 文件语言 | 英语 |
NXP Semiconductors. TDA8566. 40 W/2. stereo BTL car radio power amplifier. 11. Dynamic characteristics. Table 8
该数据表的模型线
TDA8566Q
- TDA8566Q/N1,112 TDA8566Q/N1/S420,1 TDA8566Q/N2,112 TDA8566Q/N2/S438,1 TDA8566Q/N2C,112 TDA8566Q/N2S,112
- TDA8566TH/N2,112 TDA8566TH/N2,118 TDA8566TH/N2,512 TDA8566TH/N2,518 TDA8566TH/N2C,112 TDA8566TH/N2C,118 TDA8566TH/N2S,112 TDA8566TH/N2S,118
TDA8566TH1
文件文字版本
link to page 12 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11
NXP Semiconductors TDA8566 2
×
40 W/2
Ω
stereo BTL car radio power amplifier 11. Dynamic characteristics Table 8. Dynamic characteristics
VP = 14.4 V; Tamb = 25 °C; RL = 2 Ω; fi = 1 kHz; measured in test circuit of Figure 9; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit

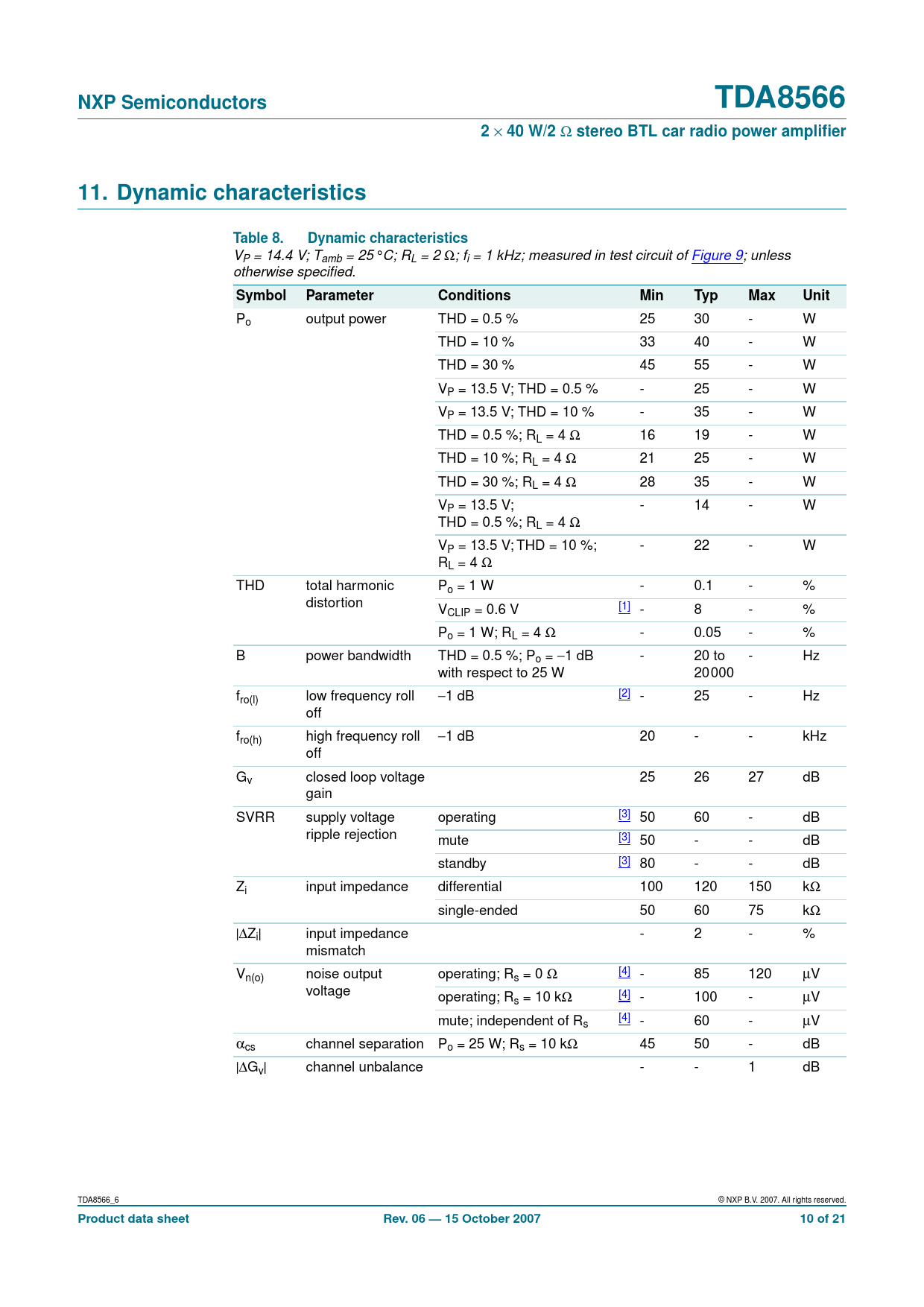

Po output power THD = 0.5 % 25 30 - W THD = 10 % 33 40 - W THD = 30 % 45 55 - W VP = 13.5 V; THD = 0.5 % - 25 - W VP = 13.5 V; THD = 10 % - 35 - W THD = 0.5 %; RL = 4 Ω 16 19 - W THD = 10 %; RL = 4 Ω 21 25 - W THD = 30 %; RL = 4 Ω 28 35 - W VP = 13.5 V; - 14 - W THD = 0.5 %; RL = 4 Ω VP = 13.5 V; THD = 10 %; - 22 - W RL = 4 Ω THD total harmonic Po = 1 W - 0.1 - % distortion VCLIP = 0.6 V [1] - 8 - % Po = 1 W; RL = 4 Ω - 0.05 - % B power bandwidth THD = 0.5 %; Po = −1 dB - 20 to - Hz with respect to 25 W 20000 fro(l) low frequency roll −1 dB [2] - 25 - Hz off fro(h) high frequency roll −1 dB 20 - - kHz off Gv closed loop voltage 25 26 27 dB gain SVRR supply voltage operating [3] 50 60 - dB ripple rejection mute [3] 50 - - dB standby [3] 80 - - dB Zi input impedance differential 100 120 150 kΩ single-ended 50 60 75 kΩ |∆Zi| input impedance - 2 - % mismatch Vn(o) noise output operating; Rs = 0 Ω [4] - 85 120 µV voltage operating; Rs = 10 kΩ [4] - 100 - µV mute; independent of R [4] s - 60 - µV αcs channel separation Po = 25 W; Rs = 10 kΩ 45 50 - dB |∆Gv| channel unbalance - - 1 dB TDA8566_6 © NXP B.V. 2007. All rights reserved.
Product data sheet Rev. 06 — 15 October 2007 10 of 21
