SHARC Processor. ADSP-21369. SUMMARY. DEDICATED AUDIO COMPONENTS. High performance 32-bit/40-bit floating-point processor

Datasheet ADSP-21369 Analog Devices, 修订版: H

该数据表的模型线

文件文字版本

link to page 60 link to page 60
SHARC Processor ADSP-21369 SUMMARY DEDICATED AUDIO COMPONENTS High performance 32-bit/40-bit floating-point processor S/PDIF-compatible digital audio receiver/transmitter optimized for high performance audio processing 4 independent asynchronous sample rate converters (SRC) Single-instruction, multiple-data (SIMD) computational 16 PWM outputs configured as four groups of four outputs architecture ROM-based security features include On-chip memory—2M bits of on-chip SRAM and 6M bits of JTAG access to memory permitted with a 64-bit key on-chip mask programmable ROM Protected memory regions that can be assigned to limit Code compatible with all other members of the SHARC family access under program control to sensitive code 400 MHz core instruction rate with unique audiocentric PLL has a wide variety of software and hardware multi- peripherals such as the digital applications interface, plier/divider ratios S/PDIF transceiver, serial ports, 8-channel asynchronous Available in 256-ball BGA_ED and 208-lead LQFP_EP sample rate converter, precision clock generators, and packages more. For complete ordering information, see Ordering Guide . Internal Memory SIMD Core Block 0 Block 1 Block 2 Block 3 RAM/ROM RAM/ROM RAM RAM Instruction 5 stage Cache Sequencer B0D B1D B2D B3D 64-BIT 64-BIT 64-BIT 64-BIT
S
DAG1/2 Timer DMD 64-BIT DMD 64-BIT PEx PEy Core Bus Internal Memory I/F Cross Bar PMD PMD 64-BIT 64-BIT IOD0 32-BIT FLAGx/IRQx/ EPD BUS 32-BIT JTAG TMREXP PERIPHERAL BUS 32-BIT IOD1 32-BIT IOD0 BUS MTM PERIPHERAL BUS EP CORE PCG TIMER UART S/PDIF PCG ASRC IDP/ SPORT CORE PWM TWI SPI/B PDAP AMI SDRAM FLAGS C-D 2-0 1-0 Tx/Rx A-D 3-0 7-0 FLAGS 3-0 7-0 DPI Routing/Pins DAI Routing/Pins External Port Pin MUX External DPI Peripherals DAI Peripherals Peripherals Port

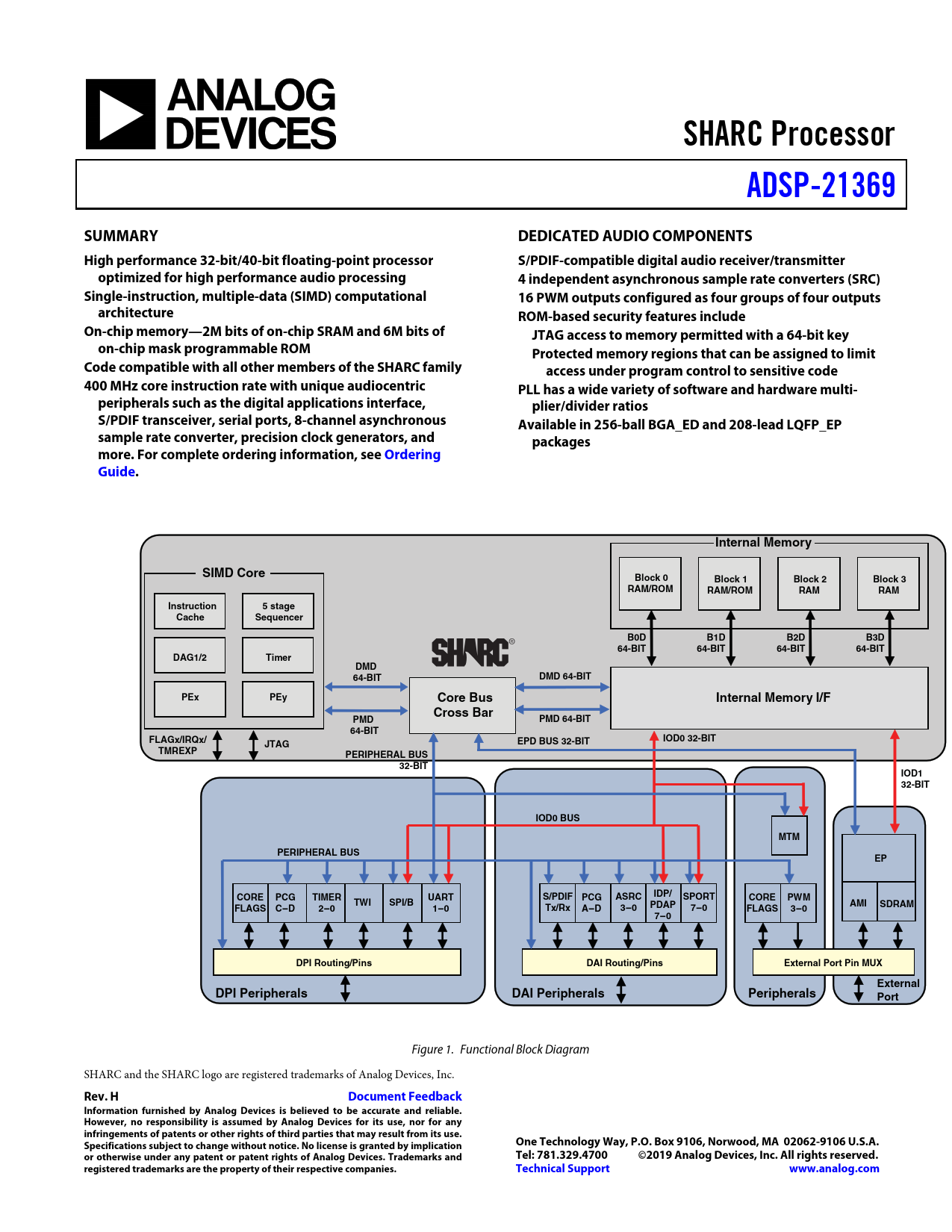

Figure 1. Functional Block Diagram SHARC and the SHARC logo are registered trademarks of Analog Devices, Inc.
