Datasheet RV1S9260A (Renesas) - 2

制造商Renesas
描述HIGH CMR, 15Mbps CMOS OUTPUT, LOW FORWARD-CURRENT(IF) 3.3V/5V OPERATION, 5-PIN SSOP WITH 8.2mm CREEPAGE DISTANCE (LSSO5) PHOTOCOUPLER
页数 / 页15 / 2 — RV1S9260A. 章題. PACKAGE. DIMENSIONS. (UNIT. :. mm). Weight. :0.075g(Typ.). …
文件格式/大小PDF / 6.8 Mb
文件语言英语

RV1S9260A. 章題. PACKAGE. DIMENSIONS. (UNIT. :. mm). Weight. :0.075g(Typ.). PHOTOCOUPLER. CONSTRUCTION. Parameter. MIN. Air. Distance. 8.2. mm. Creepage

RV1S9260A 章題 PACKAGE DIMENSIONS (UNIT : mm) Weight :0.075g(Typ.) PHOTOCOUPLER CONSTRUCTION Parameter MIN Air Distance 8.2 mm Creepage

该数据表的模型线

文件文字版本

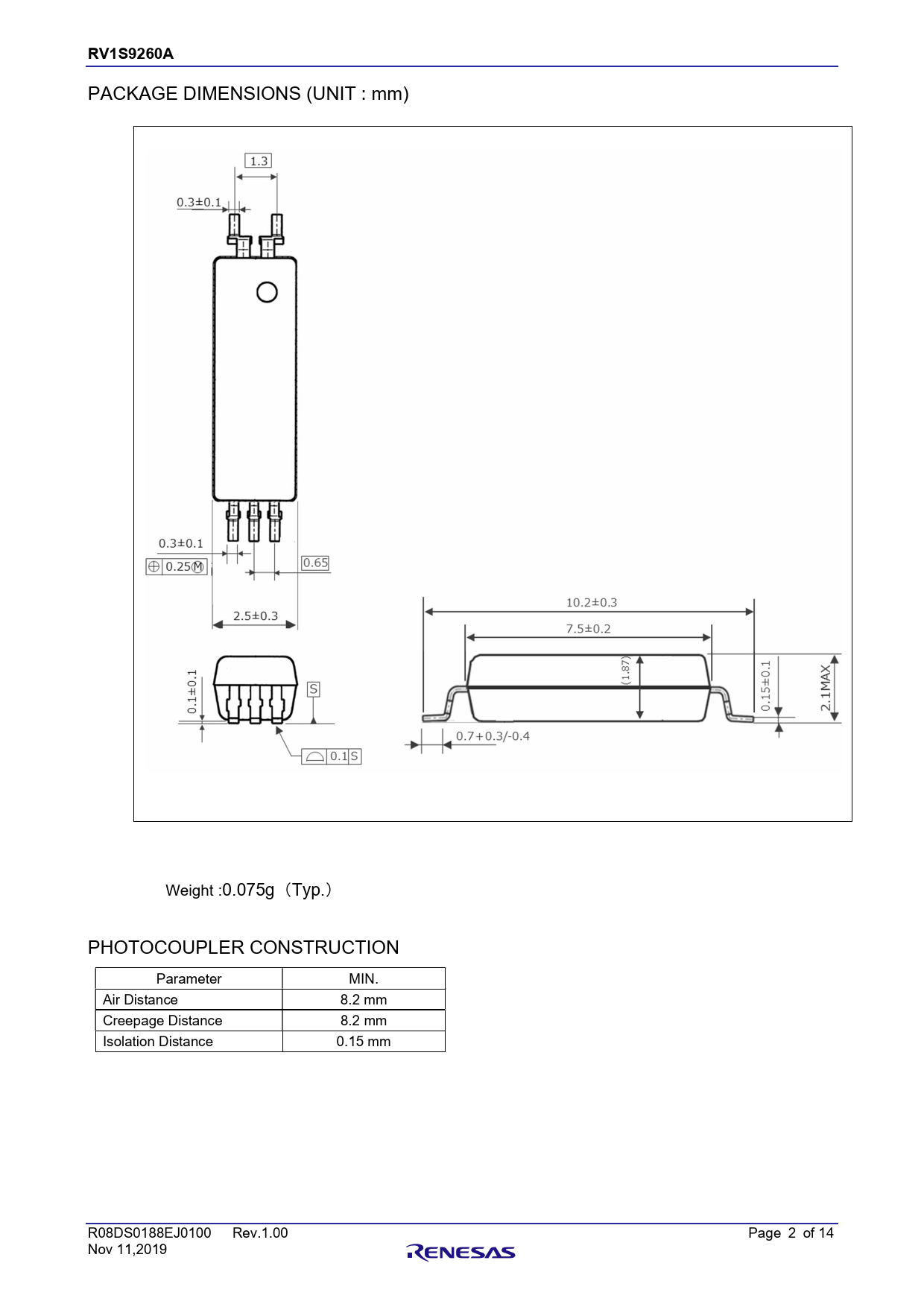

RV1S9260A 章題 PACKAGE DIMENSIONS (UNIT : mm) Weight :0.075g(Typ.) PHOTOCOUPLER CONSTRUCTION Parameter MIN. Air Distance 8.2 mm Creepage Distance 8.2 mm Isolation Distance 0.15 mm R08DS0188EJ0100 Rev.1.00 Page 2 of 14 Nov 11,2019
