Datasheet RV1S9260A (Renesas)

制造商Renesas
描述HIGH CMR, 15Mbps CMOS OUTPUT, LOW FORWARD-CURRENT(IF) 3.3V/5V OPERATION, 5-PIN SSOP WITH 8.2mm CREEPAGE DISTANCE (LSSO5) PHOTOCOUPLER
页数 / 页15 / 1 — Data. Sheet. RV1S9260A. R08DS0188EJ0100. Rev.1.00. Nov. 11,2019. HIGH. …
文件格式/大小PDF / 6.8 Mb
文件语言英语

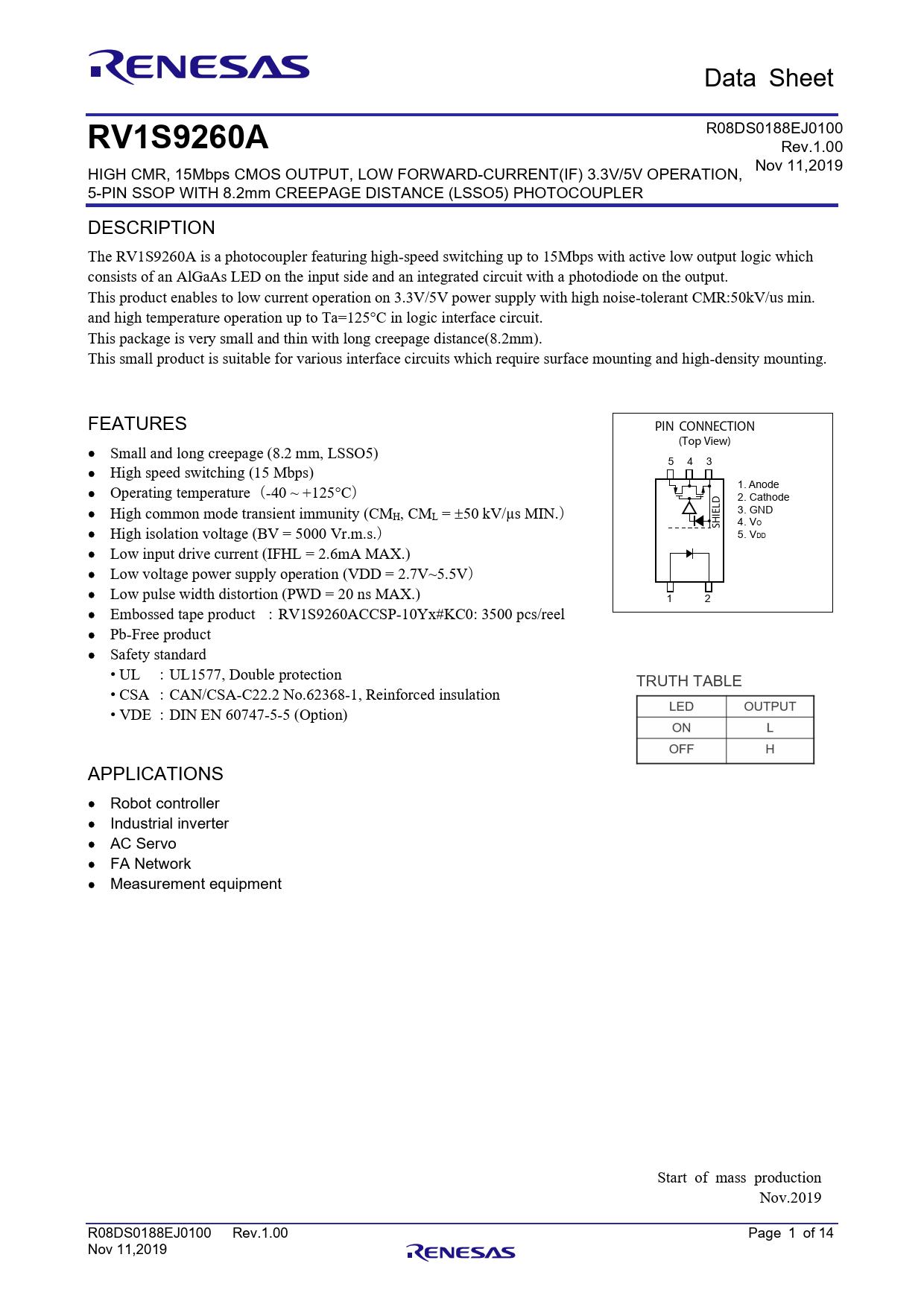

Data. Sheet. RV1S9260A. R08DS0188EJ0100. Rev.1.00. Nov. 11,2019. HIGH. CMR,. 15Mbps. CMOS. OUTPUT,. LOW. FORWARD-CURRENT(IF). 3.3V/5V. OPERATION,

Datasheet RV1S9260A Renesas

该数据表的模型线

文件文字版本

Data Sheet RV1S9260A R08DS0188EJ0100 Rev.1.00 Nov 11,2019 HIGH CMR, 15Mbps CMOS OUTPUT, LOW FORWARD-CURRENT(IF) 3.3V/5V OPERATION, 5-PIN SSOP WITH 8.2mm CREEPAGE DISTANCE (LSSO5) PHOTOCOUPLER DESCRIPTION The RV1S9260A is a photocoupler featuring high-speed switching up to 15Mbps with active low output logic which consists of an AlGaAs LED on the input side and an integrated circuit with a photodiode on the output. This product enables to low current operation on 3.3V/5V power supply with high noise-tolerant CMR:50kV/us min. and high temperature operation up to Ta=125°C in logic interface circuit. This package is very small and thin with long creepage distance(8.2mm). This small product is suitable for various interface circuits which require surface mounting and high-density mounting. FEATURES PIN CONNECTION (Top View) Small and long creepage (8.2 mm, LSSO5) 5 4 3 High speed switching (15 Mbps) 1. Anode Operating temperature(-40 ~ +125°C) 2. Cathode High common mode transient immunity (CM 3. GND H, CML = 50 kV/µs MIN.) IELD 4. V O High isolation voltage (BV = 5000 Vr.m.s.) SH 5. VDD Low input drive current (IFHL = 2.6mA MAX.) Low voltage power supply operation (VDD = 2.7V~5.5V) Low pulse width distortion (PWD = 20 ns MAX.) 1 2 Embossed tape product :RV1S9260ACCSP-10Yx#KC0: 3500 pcs/reel Pb-Free product Safety standard • UL :UL1577, Double protection TRUTH TABLE • CSA :CAN/CSA-C22.2 No.62368-1, Reinforced insulation • VDE :DIN EN 60747-5-5 (Option) APPLICATIONS Robot control er Industrial inverter AC Servo FA Network Measurement equipment Start of mass production Nov.2019 R08DS0188EJ0100 Rev.1.00 Page 1 of 14 Nov 11,2019
