Datasheet GAN063-650WSA (Nexperia) - 2
| 制造商 | Nexperia |
| 描述 | 650 V, 50 mΩ Gallium Nitride (GaN) FET |
| 页数 / 页 | 12 / 2 — Nexperia. GAN063-650WSA. 650 V, 50 mΩ Gal ium Nitride (GaN) FET. 5. … |
| 修订版 | 27112019 |
| 文件格式/大小 | PDF / 289 Kb |
| 文件语言 | 英语 |

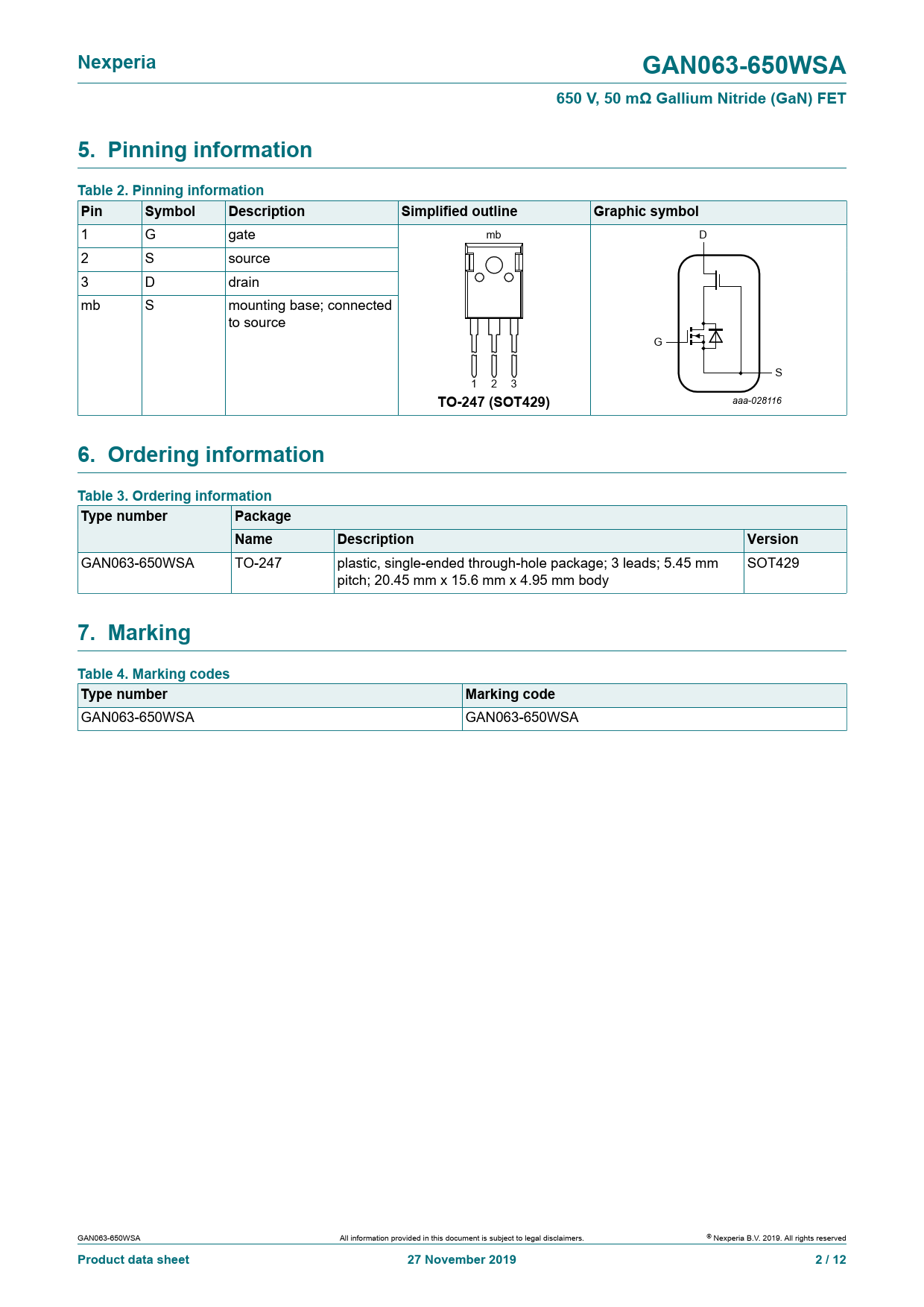

Nexperia. GAN063-650WSA. 650 V, 50 mΩ Gal ium Nitride (GaN) FET. 5. Pinning information Table 2. Pinning information. Pin. Symbol
该数据表的模型线
文件文字版本
Nexperia GAN063-650WSA 650 V, 50 mΩ Gal ium Nitride (GaN) FET 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 G gate mb D 2 S source 3 D drain mb S mounting base; connected to source G S 1 2 3
TO-247 (SOT429)
aaa-028116
6. Ordering information Table 3. Ordering information Type number Package Name Description Version
GAN063-650WSA TO-247 plastic, single-ended through-hole package; 3 leads; 5.45 mm SOT429 pitch; 20.45 mm x 15.6 mm x 4.95 mm body
7. Marking Table 4. Marking codes Type number Marking code
GAN063-650WSA GAN063-650WSA GAN063-650WSA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2019. Al rights reserved
Product data sheet 27 November 2019 2 / 12
