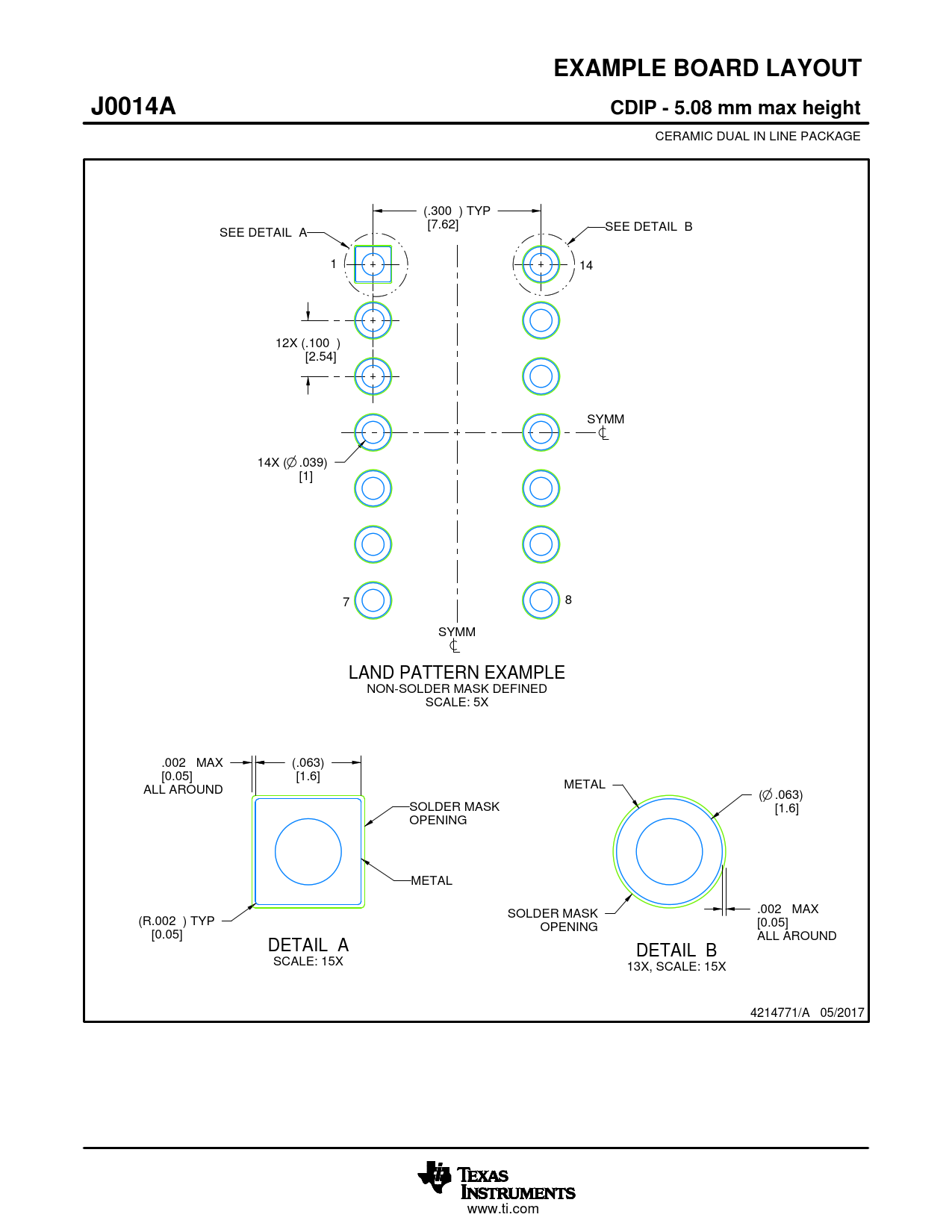

EXAMPLE BOARD LAYOUT. J0014A. CDIP - 5.08 mm max height
该数据表的模型线
文件文字版本
EXAMPLE BOARD LAYOUT J0014A CDIP - 5.08 mm max height
CERAMIC DUAL IN LINE PACKAGE (.300 ) TYP [7.62] SEE DETAIL A SEE DETAIL B 1 14 12X (.100 ) [2.54] SYMM 14X ( .039) [1] 7 8 SYMM LAND PATTERN EXAMPLE NON-SOLDER MASK DEFINED SCALE: 5X .002 MAX (.063) [0.05] [1.6] ALL AROUND METAL ( .063) SOLDER MASK [1.6] OPENING METAL .002 MAX SOLDER MASK (R.002 ) TYP [0.05] OPENING [0.05] ALL AROUND DETAIL A DETAIL B SCALE: 15X 13X, SCALE: 15X 4214771/A 05/2017 www.ti.com
CERAMIC DUAL IN LINE PACKAGE (.300 ) TYP [7.62] SEE DETAIL A SEE DETAIL B 1 14 12X (.100 ) [2.54] SYMM 14X ( .039) [1] 7 8 SYMM LAND PATTERN EXAMPLE NON-SOLDER MASK DEFINED SCALE: 5X .002 MAX (.063) [0.05] [1.6] ALL AROUND METAL ( .063) SOLDER MASK [1.6] OPENING METAL .002 MAX SOLDER MASK (R.002 ) TYP [0.05] OPENING [0.05] ALL AROUND DETAIL A DETAIL B SCALE: 15X 13X, SCALE: 15X 4214771/A 05/2017 www.ti.com
