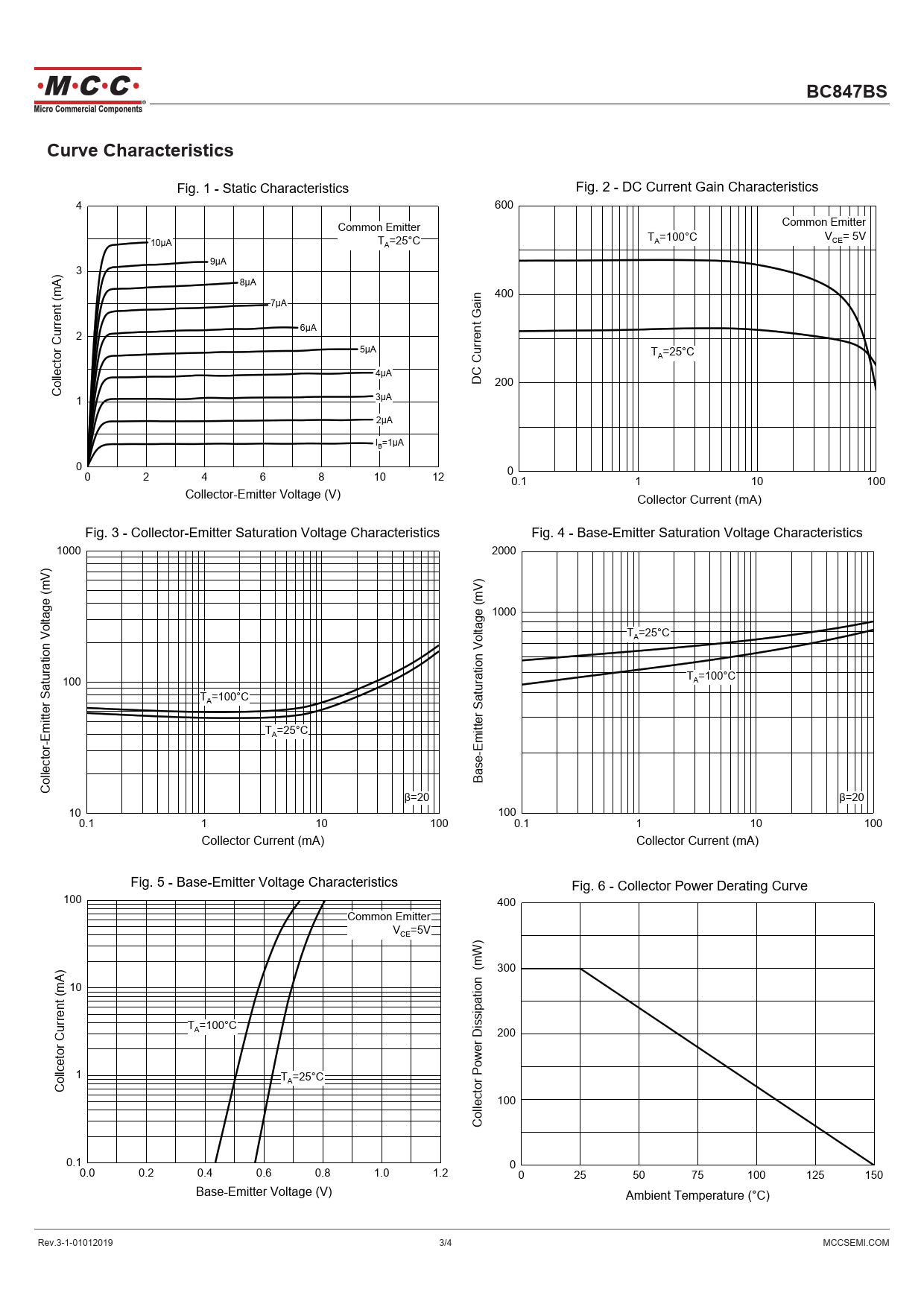

BC847BS. Curve Characteristics

BC847BS Curve Characteristics

该数据表的模型线

文件文字版本

BC847BS Curve Characteristics
Fig. 1 - Static Characteristics Fig. 2 - DC Current Gain Characteristics 4 600 Common Emitter Common Emitter T V 10μA TA=25°C A=100°C CE= 5V 9μA 3 8μA (mA) 400 7μA Gain 6μA 2 Current 5μA Current TA=25°C 4μA DC 200 Collector 1 3μA 2μA IB=1μA 0 0 2 4 6 8 10 12 00.1 1 10 100 Collector-Emitter Voltage (V) Collector Current (mA) Fig. 3 - Collector-Emitter Saturation Voltage Characteristics Fig. 4 - Base-Emitter Saturation Voltage Characteristics 1000 2000 (mV) (mV) 1000 Voltage TA=25°C Voltage 100 TA=100°C Saturation TA=100°C Saturation TA=25°C Base-Emitter Collector-Emitter β=20 β=20 10 100 0.1 1 10 100 0.1 1 10 100 Collector Current (mA) Collector Current (mA) Fig. 5 - Base-Emitter Voltage Characteristics Fig. 6 - Collector Power Derating Curve 100 400 Common Emitter VCE=5V 300 10 (mA) TA=100°C 200 Current 1 TA=25°C Collcetor 100 Collector Power Dissipation (mW) 0.1 0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 0 25 50 75 100 125 150 Base-Emitter Voltage (V) Ambient Temperature (°C) Rev.3-1-01012019 3/4 MCCSEMI.COM
