Datasheet BC856, BC857, BC858, BC859, BC860 (Infineon) - 9
| 制造商 | Infineon |
| 描述 | PNP Silicon AF Transistors |
| 页数 / 页 | 10 / 9 — Package SOT23 |
| 文件格式/大小 | PDF / 168 Kb |
| 文件语言 | 英语 |
Package SOT23
该数据表的模型线
文件文字版本

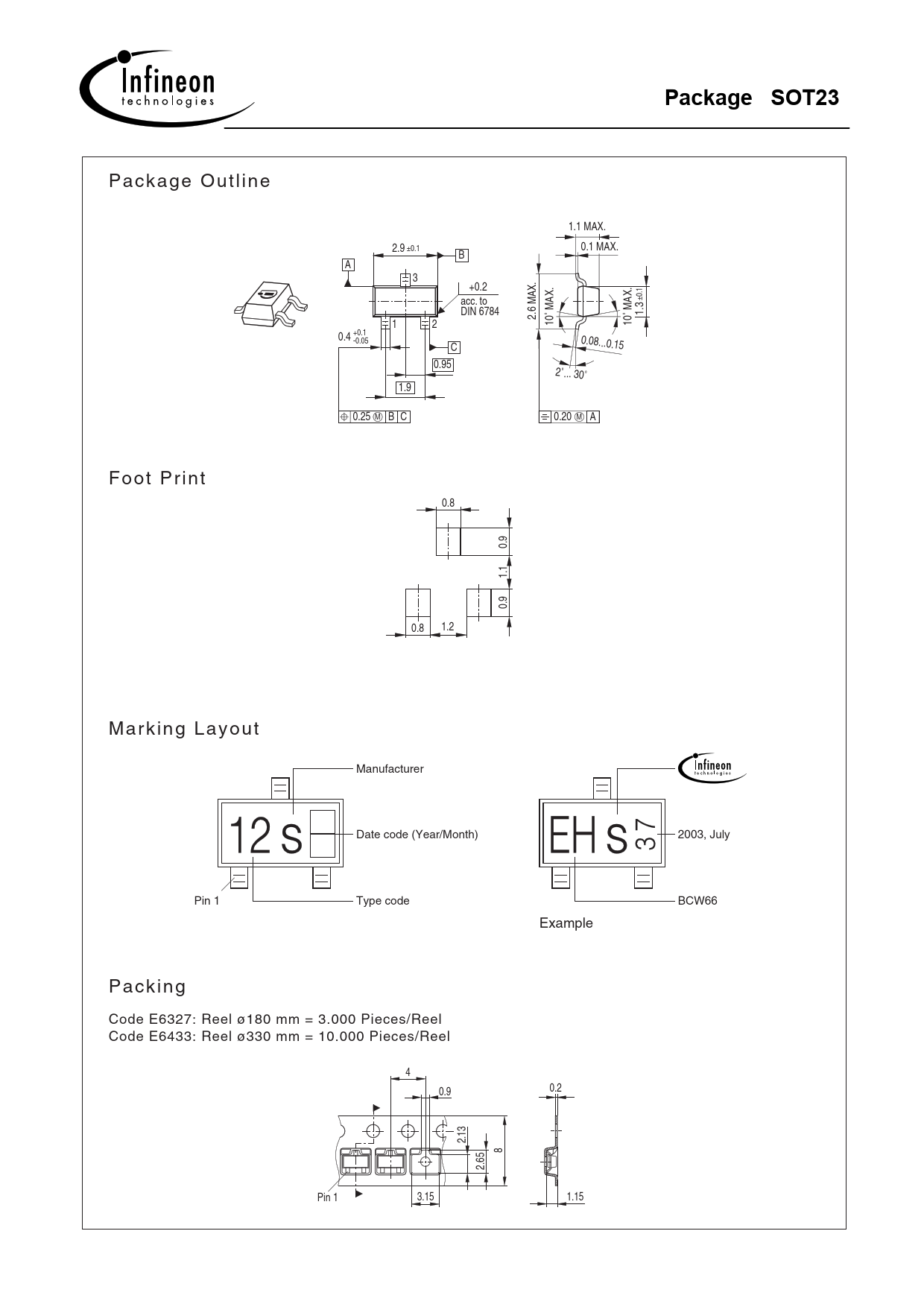

Package SOT23
P a c k a g e O u t l i n e 1.1 MAX. 2.9 ±0.1 0.1 MAX. B A 3 +0.2 acc. to ±0.1 MAX. MAX. DIN 6784 2.6 MAX. ˚ ˚ 1.3 1 2 10 10 +0.1 0.4 -0.05 0.08...0.15 C 0.95 2˚... 30˚ 1.9 0.25 M B C 0.20 M A F o o t P r i n t 0.8 0.9 1.1 0.9 0.8 1.2 M a r k i n g L a y o u t Manufacturer Date code (Year/Month) 2003, July Pin 1 Type code BCW66 Example P a c k i n g Code E6327: Reel ø180 mm = 3.000 Pieces/Reel Code E6433: Reel ø330 mm = 10.000 Pieces/Reel 4 0.9 0.2 2.13 8 2.65 Pin 1 3.15 1.15
