Datasheet BC856, BC857, BC858, BC859, BC860 (Infineon)
| 制造商 | Infineon |
| 描述 | PNP Silicon AF Transistors |
| 页数 / 页 | 10 / 1 — BC856...BC860. PNP Silicon AF Transistors. Type. Marking. Pin … |
| 文件格式/大小 | PDF / 168 Kb |
| 文件语言 | 英语 |
BC856...BC860. PNP Silicon AF Transistors. Type. Marking. Pin Configuration. Package
该数据表的模型线
文件文字版本

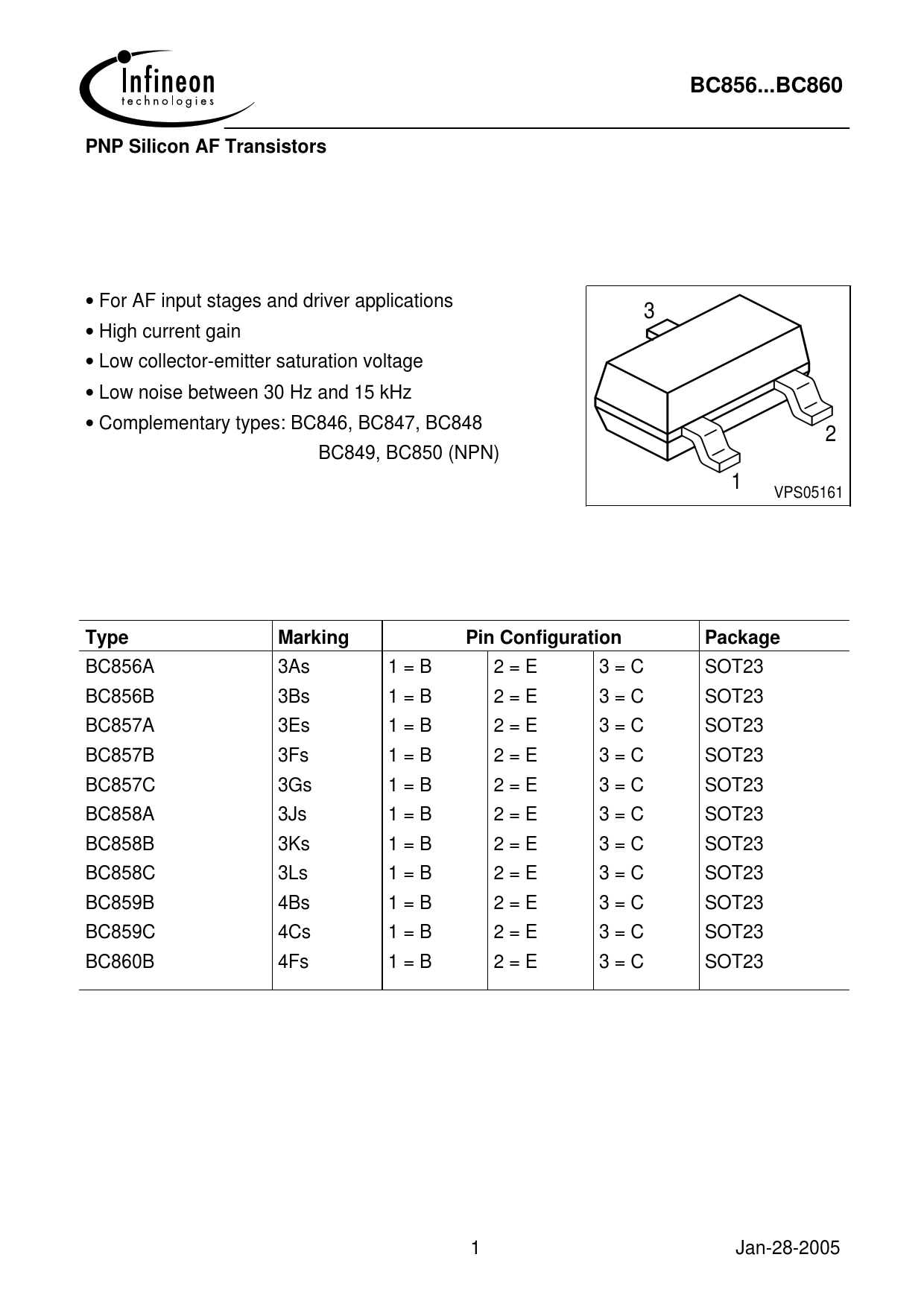

BC856...BC860 PNP Silicon AF Transistors
• For AF input stages and driver applications 3 • High current gain • Low collector-emitter saturation voltage • Low noise between 30 Hz and 15 kHz • Complementary types: BC846, BC847, BC848 2 BC849, BC850 (NPN) 1 VPS05161
Type Marking Pin Configuration Package
BC856A 3As 1 = B 2 = E 3 = C SOT23 BC856B 3Bs 1 = B 2 = E 3 = C SOT23 BC857A 3Es 1 = B 2 = E 3 = C SOT23 BC857B 3Fs 1 = B 2 = E 3 = C SOT23 BC857C 3Gs 1 = B 2 = E 3 = C SOT23 BC858A 3Js 1 = B 2 = E 3 = C SOT23 BC858B 3Ks 1 = B 2 = E 3 = C SOT23 BC858C 3Ls 1 = B 2 = E 3 = C SOT23 BC859B 4Bs 1 = B 2 = E 3 = C SOT23 BC859C 4Cs 1 = B 2 = E 3 = C SOT23 BC860B 4Fs 1 = B 2 = E 3 = C SOT23 1 Jan-28-2005
• For AF input stages and driver applications 3 • High current gain • Low collector-emitter saturation voltage • Low noise between 30 Hz and 15 kHz • Complementary types: BC846, BC847, BC848 2 BC849, BC850 (NPN) 1 VPS05161
Type Marking Pin Configuration Package
BC856A 3As 1 = B 2 = E 3 = C SOT23 BC856B 3Bs 1 = B 2 = E 3 = C SOT23 BC857A 3Es 1 = B 2 = E 3 = C SOT23 BC857B 3Fs 1 = B 2 = E 3 = C SOT23 BC857C 3Gs 1 = B 2 = E 3 = C SOT23 BC858A 3Js 1 = B 2 = E 3 = C SOT23 BC858B 3Ks 1 = B 2 = E 3 = C SOT23 BC858C 3Ls 1 = B 2 = E 3 = C SOT23 BC859B 4Bs 1 = B 2 = E 3 = C SOT23 BC859C 4Cs 1 = B 2 = E 3 = C SOT23 BC860B 4Fs 1 = B 2 = E 3 = C SOT23 1 Jan-28-2005
