Ultra-Low Pressure. Digital Sensor. SM9233/SM9235/SM9236 Series. Gauge Pressure Sensors. FEATURES. DESCRIPTION. Medical. Industrial

Datasheet SM9233, SM9235, SM9236 Silicon Microstructures

该数据表的模型线

文件文字版本

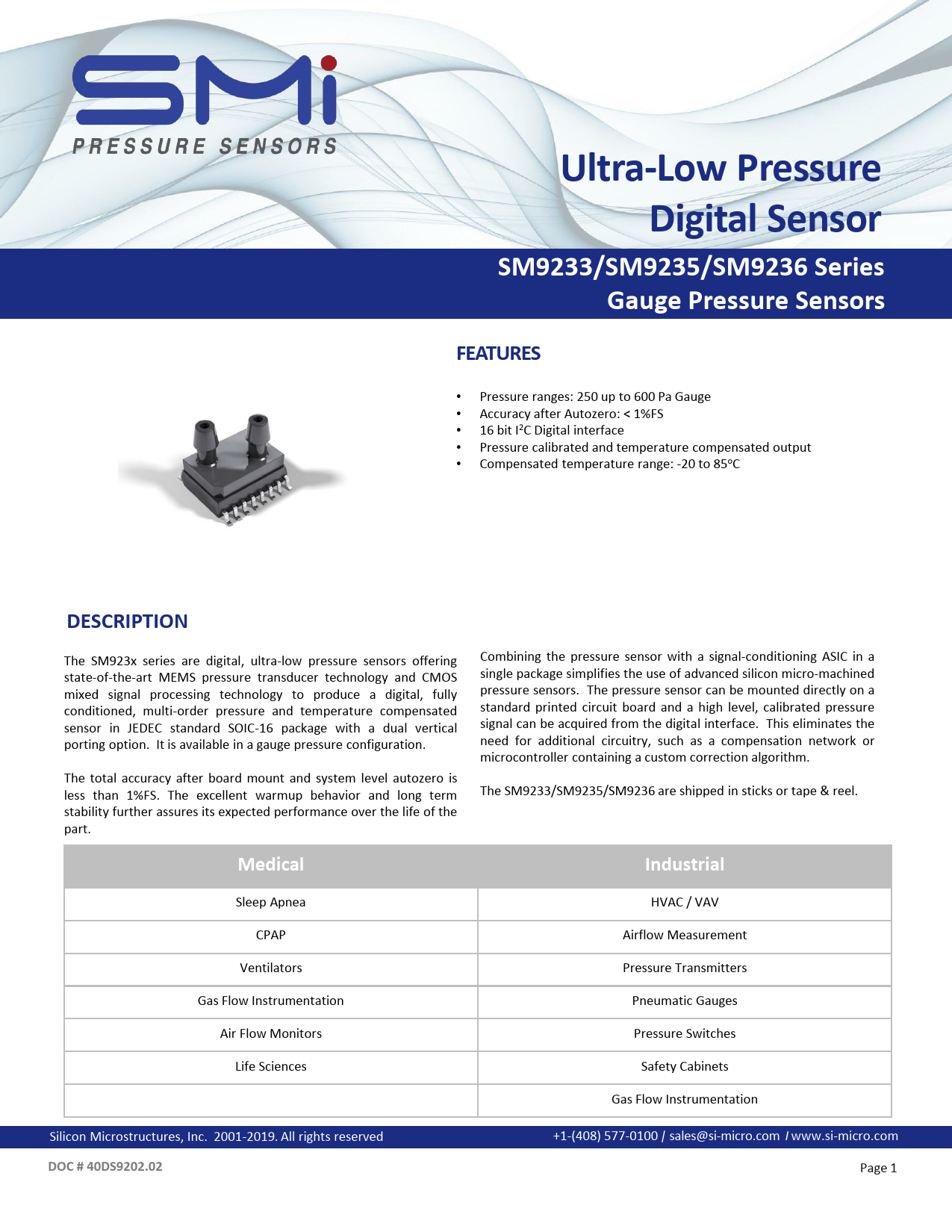

Ultra-Low Pressure
27 45 131
Digital Sensor
167
SM9233/SM9235/SM9236 Series
170

175
Gauge Pressure Sensors FEATURES
169 0

61 • Pressure ranges: 250 up to 600 Pa Gauge • Accuracy after Autozero: < 1%FS • 16 bit I2C Digital interface • Pressure calibrated and temperature compensated output • Compensated temperature range: -20 to 85oC
DESCRIPTION
The SM923x series are digital, ultra-low pressure sensors offering Combining the pressure sensor with a signal-conditioning ASIC in a state-of-the-art MEMS pressure transducer technology and CMOS single package simplifies the use of advanced silicon micro-machined mixed signal processing technology to produce a digital, fully pressure sensors. The pressure sensor can be mounted directly on a conditioned, multi-order pressure and temperature compensated standard printed circuit board and a high level, calibrated pressure sensor in JEDEC standard SOIC-16 package with a dual vertical signal can be acquired from the digital interface. This eliminates the porting option. It is available in a gauge pressure configuration. need for additional circuitry, such as a compensation network or microcontroller containing a custom correction algorithm. The total accuracy after board mount and system level autozero is less than 1%FS. The excellent warmup behavior and long term The SM9233/SM9235/SM9236 are shipped in sticks or tape & reel. stability further assures its expected performance over the life of the part.
Medical Industrial
Sleep Apnea HVAC / VAV CPAP Airflow Measurement Ventilators Pressure Transmitters Gas Flow Instrumentation Pneumatic Gauges Air Flow Monitors Pressure Switches Life Sciences Safety Cabinets Gas Flow Instrumentation Silicon Microstructures, Inc. 2001-2019. All rights reserved +1-(408) 577-0100 | sales@si-micro.com I www.si-micro.com
DOC # 40DS9202.02
Page 1
