Table 4.7. IEC 60664-1 (VDE 0884) Ratings. Specification. Parameter. Test Conditions. WB Stretched. SOIC-8
该数据表的模型线
文件文字版本

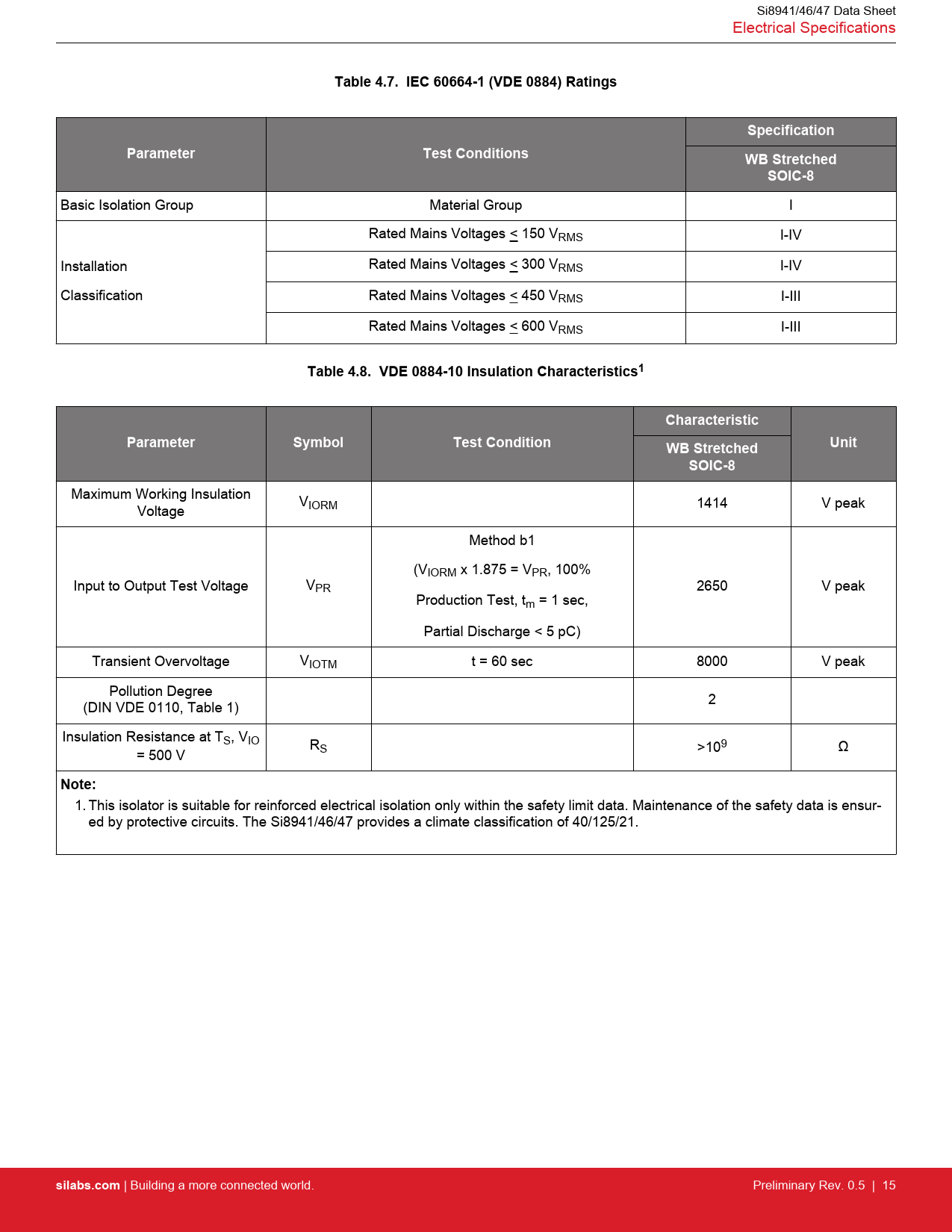

link to page 15 Si8941/46/47 Data Sheet Electrical Specifications
Table 4.7. IEC 60664-1 (VDE 0884) Ratings Specification Parameter Test Conditions WB Stretched SOIC-8
Basic Isolation Group Material Group I Rated Mains Voltages < 150 VRMS I-IV Installation Rated Mains Voltages < 300 VRMS I-IV Classification Rated Mains Voltages < 450 VRMS I-III Rated Mains Voltages < 600 VRMS I-III
Table 4.8. VDE 0884-10 Insulation Characteristics1 Characteristic Parameter Symbol Test Condition Unit WB Stretched SOIC-8
Maximum Working Insulation V Voltage IORM 1414 V peak Method b1 (VIORM x 1.875 = VPR, 100% Input to Output Test Voltage VPR 2650 V peak Production Test, tm = 1 sec, Partial Discharge < 5 pC) Transient Overvoltage VIOTM t = 60 sec 8000 V peak Pollution Degree 2 (DIN VDE 0110, Table 1) Insulation Resistance at TS, VIO R = 500 V S >109 Ω
Note:
1. This isolator is suitable for reinforced electrical isolation only within the safety limit data. Maintenance of the safety data is ensur- ed by protective circuits. The Si8941/46/47 provides a climate classification of 40/125/21.
