Blackfin. Embedded Processor. ADSP-BF531/. ADSP-BF532. /ADSP-BF533. FEATURES. PERIPHERALS

Datasheet ADSP-BF531, ADSP-BF532, ADSP-BF533 Analog Devices, 修订版: I

该数据表的模型线

文件文字版本

link to page 20 link to page 20 link to page 3 link to page 62 link to page 62
Blackfin Embedded Processor ADSP-BF531/ ADSP-BF532 /ADSP-BF533 FEATURES PERIPHERALS Up to 600 MHz high performance Blackfin processor Parallel peripheral interface PPI, supporting Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, ITU-R 656 video data formats 40-bit shifter 2 dual-channel, full duplex synchronous serial ports, sup- RISC-like register and instruction model for ease of pro- porting eight stereo I2S channels gramming and compiler-friendly support 2 memory-to-memory DMAs Advanced debug, trace, and performance monitoring 8 peripheral DMAs Wide range of operating voltages (see Operating Conditions SPI-compatible port on Page 20) Three 32-bit timer/counters with PWM support Qualified for Automotive Applications (see Automotive Prod- Real-time clock and watchdog timer ucts on Page 62 ) 32-bit core timer Programmable on-chip voltage regulator Up to 16 general-purpose I/O pins (GPIO) 160-ball CSP_BGA, 169-ball PBGA, and 176-lead LQFP UART with support for IrDA packages Event handler MEMORY Debug/JTAG interface Up to 148K bytes of on-chip memory (see Table 1 on Page 3 ) On-chip PLL capable of frequency multiplication Memory management unit providing memory protection External memory controller with glueless support for SDRAM, SRAM, flash, and ROM Flexible memory booting options from SPI and external memory VOLTAGE REGULATOR JTAG TEST AND EMULATION US B SS INTERRUPT E WATCHDOG
B
CONTROLLER CC A TIMER AL R HE RTC IP ER L1 L1 P DMA PPI INSTRUCTION DATA CONTROLLER MEMORY MEMORY GPIO S TIMER0-2 PORT BU F DMA SS EXTERNAL CE SPI DMA CORE BUS BUS C EXTERNAL ACCESS BUS A MA D UART EXTERNAL PORT FLASH, SDRAM CONTROL SPORT0-1 16 BOOT ROM

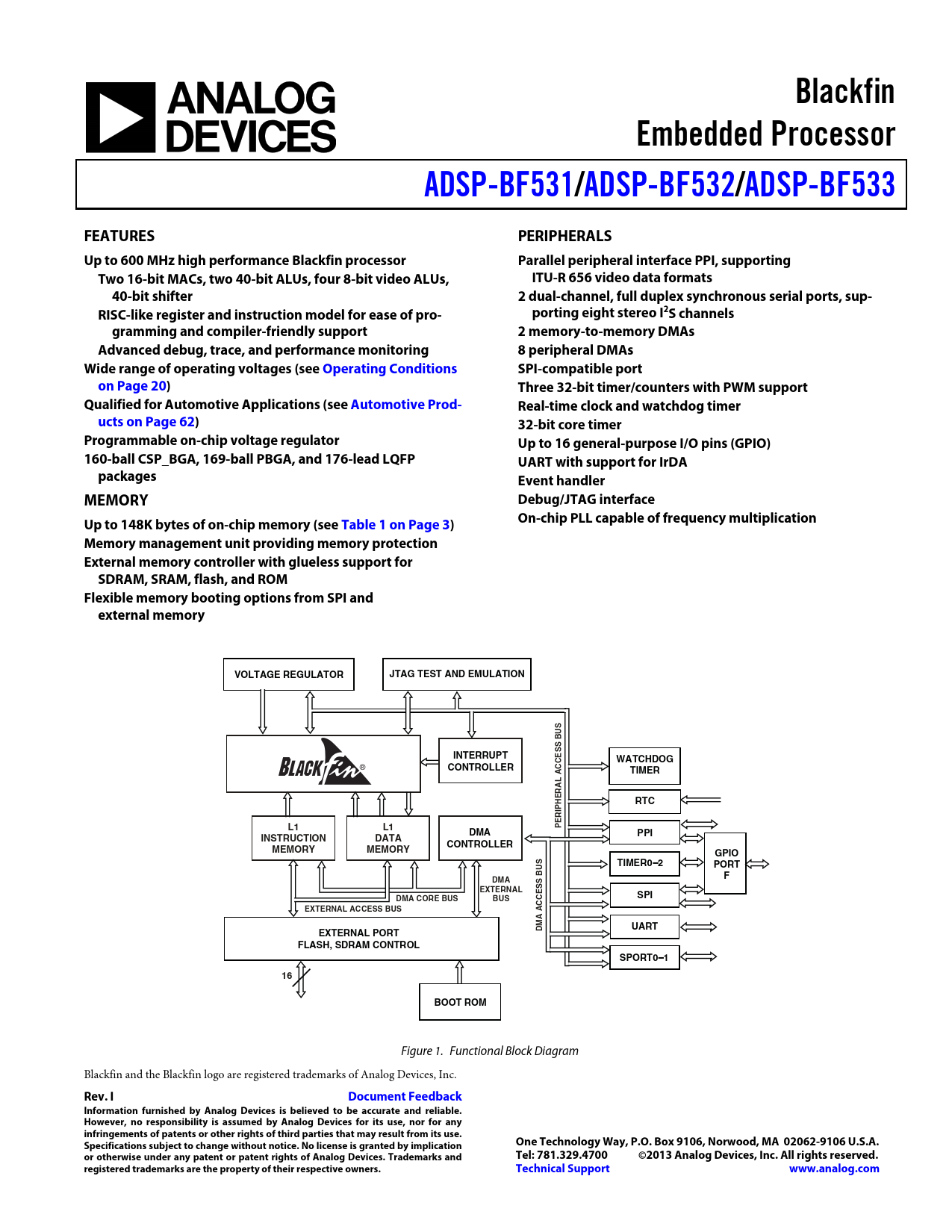

Figure 1. Functional Block Diagram Blackfin and the Blackfin logo are registered trademarks of Analog Devices, Inc.
