| 制造商 | Analog Devices |
| 描述 | Precision Dual Output, High Current, Low Noise Voltage Reference |
| 页数 / 页 | 40 / 3 — orDer inForMaTion. SPECIFIED JUNCTION. TUBE. TAPE AND REEL. PART MARKING* … |
| 文件格式/大小 | PDF / 4.2 Mb |
| 文件语言 | 英语 |

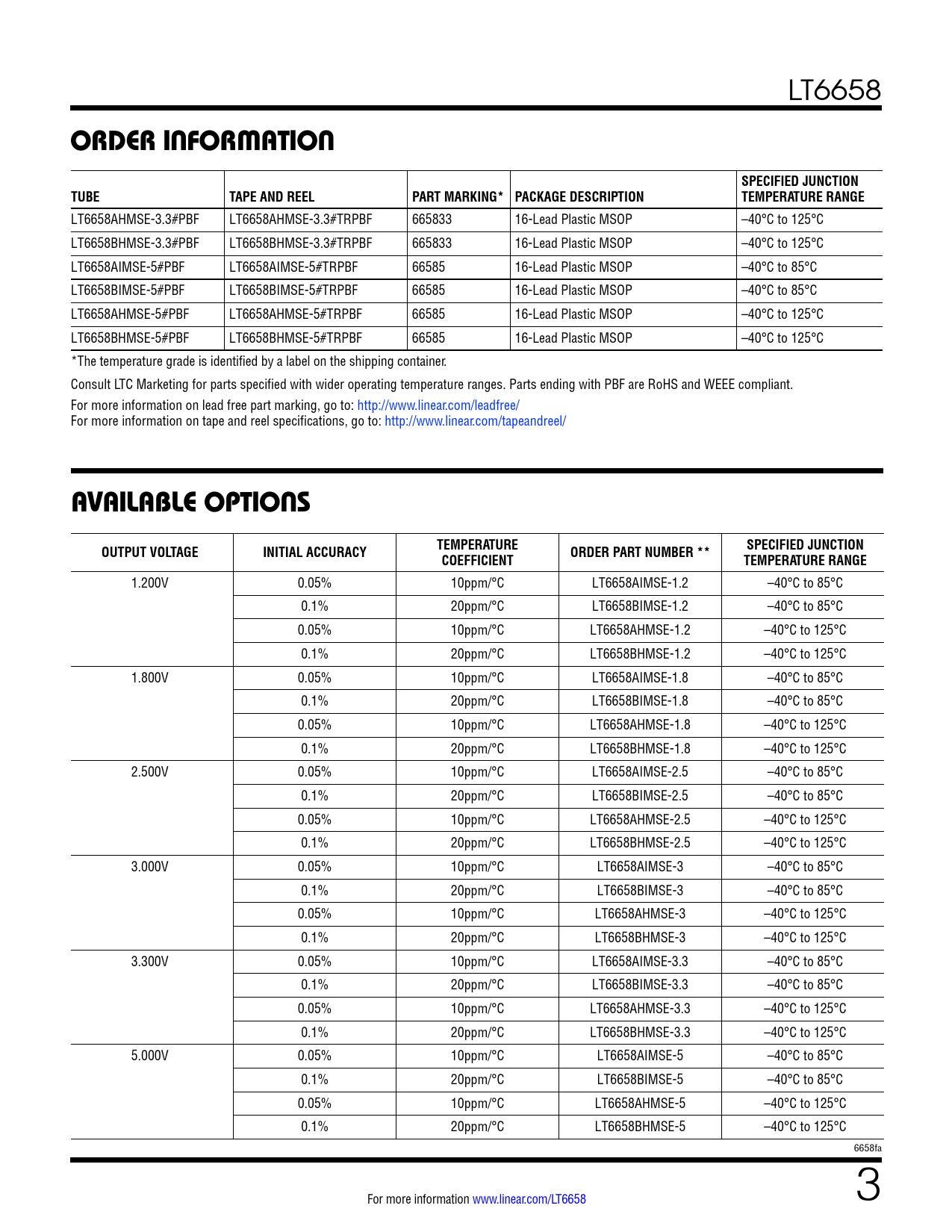

orDer inForMaTion. SPECIFIED JUNCTION. TUBE. TAPE AND REEL. PART MARKING* PACKAGE DESCRIPTION. TEMPERATURE RANGE. available opTions
文件文字版本
LT6658
orDer inForMaTion SPECIFIED JUNCTION TUBE TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6658AHMSE-3.3#PBF LT6658AHMSE-3.3#TRPBF 665833 16-Lead Plastic MSOP –40°C to 125°C LT6658BHMSE-3.3#PBF LT6658BHMSE-3.3#TRPBF 665833 16-Lead Plastic MSOP –40°C to 125°C LT6658AIMSE-5#PBF LT6658AIMSE-5#TRPBF 66585 16-Lead Plastic MSOP –40°C to 85°C LT6658BIMSE-5#PBF LT6658BIMSE-5#TRPBF 66585 16-Lead Plastic MSOP –40°C to 85°C LT6658AHMSE-5#PBF LT6658AHMSE-5#TRPBF 66585 16-Lead Plastic MSOP –40°C to 125°C LT6658BHMSE-5#PBF LT6658BHMSE-5#TRPBF 66585 16-Lead Plastic MSOP –40°C to 125°C *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Parts ending with PBF are RoHS and WEEE compliant. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
available opTions OUTPUT VOLTAGE INITIAL ACCURACY TEMPERATURE COEFFICIENT ORDER PART NUMBER ** SPECIFIED JUNCTION TEMPERATURE RANGE
1.200V 0.05% 10ppm/°C LT6658AIMSE-1.2 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-1.2 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-1.2 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-1.2 –40°C to 125°C 1.800V 0.05% 10ppm/°C LT6658AIMSE-1.8 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-1.8 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-1.8 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-1.8 –40°C to 125°C 2.500V 0.05% 10ppm/°C LT6658AIMSE-2.5 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-2.5 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-2.5 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-2.5 –40°C to 125°C 3.000V 0.05% 10ppm/°C LT6658AIMSE-3 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-3 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-3 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-3 –40°C to 125°C 3.300V 0.05% 10ppm/°C LT6658AIMSE-3.3 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-3.3 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-3.3 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-3.3 –40°C to 125°C 5.000V 0.05% 10ppm/°C LT6658AIMSE-5 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-5 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-5 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-5 –40°C to 125°C 6658fa For more information www.linear.com/LT6658 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
