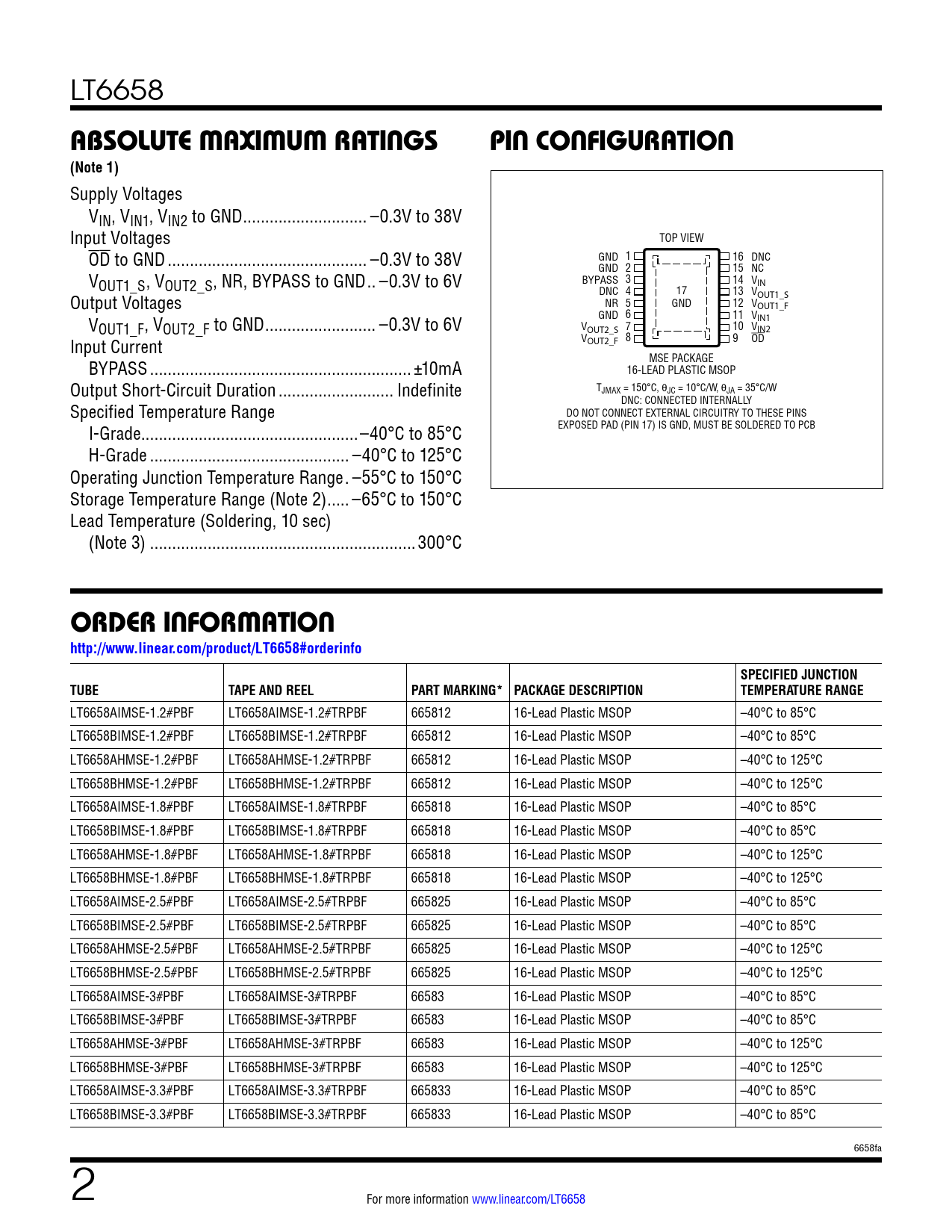

LT6658
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Supply Voltages VIN, VIN1, VIN2 to GND .. –0.3V to 38V Input Voltages TOP VIEW OD to GND ... –0.3V to 38V GND 1 16 DNC GND 2 15 NC VOUT1_S, VOUT2_S, NR, BYPASS to GND .. –0.3V to 6V BYPASS 3 14 VIN DNC 4 17 Output Voltages 13 VOUT1_S NR 5 GND 12 VOUT1_F V GND 6 11 VIN1 OUT1_F, VOUT2_F to GND ... –0.3V to 6V V 7 OUT2_S 10 VIN2 Input Current V 8 OUT2_F 9 OD BYPASS ... ±10mA MSE PACKAGE 16-LEAD PLASTIC MSOP Output Short-Circuit Duration .. Indefinite TJMAX = 150°C, θJC = 10°C/W, θJA = 35°C/W Specified Temperature Range DNC: CONNECTED INTERNALLY DO NOT CONNECT EXTERNAL CIRCUITRY TO THESE PINS I-Grade...–40°C to 85°C EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB H-Grade ... –40°C to 125°C Operating Junction Temperature Range . –55°C to 150°C Storage Temperature Range (Note 2) ... –65°C to 150°C Lead Temperature (Soldering, 10 sec) (Note 3) ..300°C
orDer inForMaTion http://www.linear.com/product/LT6658#orderinfo SPECIFIED JUNCTION TUBE TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6658AIMSE-1.2#PBF LT6658AIMSE-1.2#TRPBF 665812 16-Lead Plastic MSOP –40°C to 85°C LT6658BIMSE-1.2#PBF LT6658BIMSE-1.2#TRPBF 665812 16-Lead Plastic MSOP –40°C to 85°C LT6658AHMSE-1.2#PBF LT6658AHMSE-1.2#TRPBF 665812 16-Lead Plastic MSOP –40°C to 125°C LT6658BHMSE-1.2#PBF LT6658BHMSE-1.2#TRPBF 665812 16-Lead Plastic MSOP –40°C to 125°C LT6658AIMSE-1.8#PBF LT6658AIMSE-1.8#TRPBF 665818 16-Lead Plastic MSOP –40°C to 85°C LT6658BIMSE-1.8#PBF LT6658BIMSE-1.8#TRPBF 665818 16-Lead Plastic MSOP –40°C to 85°C LT6658AHMSE-1.8#PBF LT6658AHMSE-1.8#TRPBF 665818 16-Lead Plastic MSOP –40°C to 125°C LT6658BHMSE-1.8#PBF LT6658BHMSE-1.8#TRPBF 665818 16-Lead Plastic MSOP –40°C to 125°C LT6658AIMSE-2.5#PBF LT6658AIMSE-2.5#TRPBF 665825 16-Lead Plastic MSOP –40°C to 85°C LT6658BIMSE-2.5#PBF LT6658BIMSE-2.5#TRPBF 665825 16-Lead Plastic MSOP –40°C to 85°C LT6658AHMSE-2.5#PBF LT6658AHMSE-2.5#TRPBF 665825 16-Lead Plastic MSOP –40°C to 125°C LT6658BHMSE-2.5#PBF LT6658BHMSE-2.5#TRPBF 665825 16-Lead Plastic MSOP –40°C to 125°C LT6658AIMSE-3#PBF LT6658AIMSE-3#TRPBF 66583 16-Lead Plastic MSOP –40°C to 85°C LT6658BIMSE-3#PBF LT6658BIMSE-3#TRPBF 66583 16-Lead Plastic MSOP –40°C to 85°C LT6658AHMSE-3#PBF LT6658AHMSE-3#TRPBF 66583 16-Lead Plastic MSOP –40°C to 125°C LT6658BHMSE-3#PBF LT6658BHMSE-3#TRPBF 66583 16-Lead Plastic MSOP –40°C to 125°C LT6658AIMSE-3.3#PBF LT6658AIMSE-3.3#TRPBF 665833 16-Lead Plastic MSOP –40°C to 85°C LT6658BIMSE-3.3#PBF LT6658BIMSE-3.3#TRPBF 665833 16-Lead Plastic MSOP –40°C to 85°C 6658fa 2 For more information www.linear.com/LT6658 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
