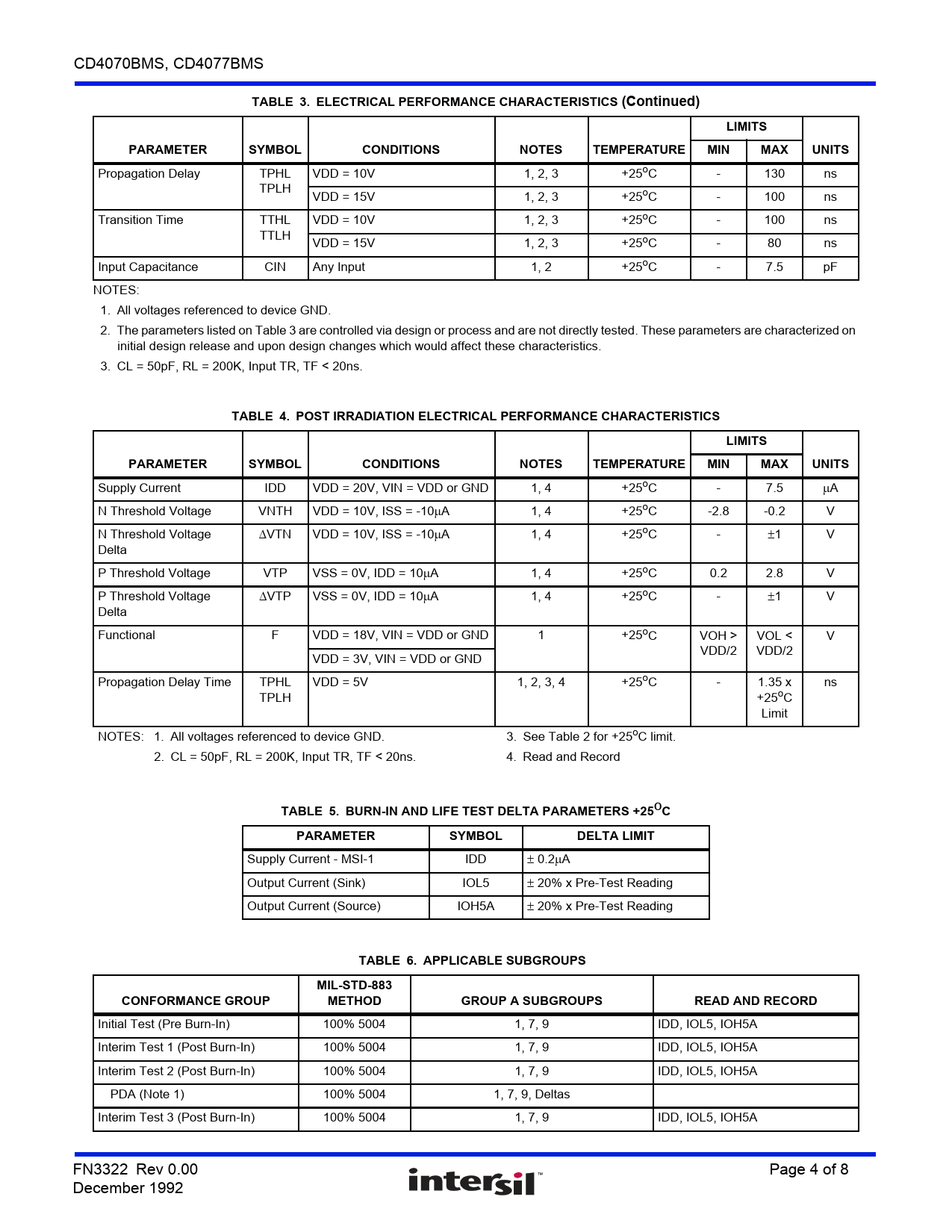

TABLE 3. ELECTRICAL PERFORMANCE CHARACTERISTICS (Continued). LIMITS. PARAMETER. SYMBOL. CONDITIONS. NOTES. TEMPERATURE. MIN. MAX. UNITS
该数据表的模型线
文件文字版本
CD4070BMS, CD4077BMS
TABLE 3. ELECTRICAL PERFORMANCE CHARACTERISTICS (Continued) LIMITS PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE MIN MAX UNITS
Propagation Delay TPHL VDD = 10V 1, 2, 3 +25oC - 130 ns TPLH VDD = 15V 1, 2, 3 +25oC - 100 ns Transition Time TTHL VDD = 10V 1, 2, 3 +25oC - 100 ns TTLH VDD = 15V 1, 2, 3 +25oC - 80 ns Input Capacitance CIN Any Input 1, 2 +25oC - 7.5 pF NOTES: 1. All voltages referenced to device GND. 2. The parameters listed on Table 3 are controlled via design or process and are not directly tested. These parameters are characterized on initial design release and upon design changes which would affect these characteristics. 3. CL = 50pF, RL = 200K, Input TR, TF < 20ns.
TABLE 4. POST IRRADIATION ELECTRICAL PERFORMANCE CHARACTERISTICS LIMITS PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE MIN MAX UNITS
Supply Current IDD VDD = 20V, VIN = VDD or GND 1, 4 +25oC - 7.5 A N Threshold Voltage VNTH VDD = 10V, ISS = -10A 1, 4 +25oC -2.8 -0.2 V N Threshold Voltage VTN VDD = 10V, ISS = -10A 1, 4 +25oC - 1 V Delta P Threshold Voltage VTP VSS = 0V, IDD = 10A 1, 4 +25oC 0.2 2.8 V P Threshold Voltage VTP VSS = 0V, IDD = 10A 1, 4 +25oC - 1 V Delta Functional F VDD = 18V, VIN = VDD or GND 1 +25oC VOH > VOL < V VDD/2 VDD/2 VDD = 3V, VIN = VDD or GND Propagation Delay Time TPHL VDD = 5V 1, 2, 3, 4 +25oC - 1.35 x ns TPLH +25oC Limit NOTES: 1. All voltages referenced to device GND. 3. See Table 2 for +25oC limit. 2. CL = 50pF, RL = 200K, Input TR, TF < 20ns. 4. Read and Record
TABLE 5. BURN-IN AND LIFE TEST DELTA PARAMETERS +25OC PARAMETER SYMBOL DELTA LIMIT
Supply Current - MSI-1 IDD 0.2A Output Current (Sink) IOL5 20% x Pre-Test Reading Output Current (Source) IOH5A 20% x Pre-Test Reading
TABLE 6. APPLICABLE SUBGROUPS MIL-STD-883 CONFORMANCE GROUP METHOD GROUP A SUBGROUPS READ AND RECORD
Initial Test (Pre Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A Interim Test 1 (Post Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A Interim Test 2 (Post Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A PDA (Note 1) 100% 5004 1, 7, 9, Deltas Interim Test 3 (Post Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A FN3322 Rev 0.00 Page 4 of 8 December 1992
TABLE 3. ELECTRICAL PERFORMANCE CHARACTERISTICS (Continued) LIMITS PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE MIN MAX UNITS
Propagation Delay TPHL VDD = 10V 1, 2, 3 +25oC - 130 ns TPLH VDD = 15V 1, 2, 3 +25oC - 100 ns Transition Time TTHL VDD = 10V 1, 2, 3 +25oC - 100 ns TTLH VDD = 15V 1, 2, 3 +25oC - 80 ns Input Capacitance CIN Any Input 1, 2 +25oC - 7.5 pF NOTES: 1. All voltages referenced to device GND. 2. The parameters listed on Table 3 are controlled via design or process and are not directly tested. These parameters are characterized on initial design release and upon design changes which would affect these characteristics. 3. CL = 50pF, RL = 200K, Input TR, TF < 20ns.
TABLE 4. POST IRRADIATION ELECTRICAL PERFORMANCE CHARACTERISTICS LIMITS PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE MIN MAX UNITS
Supply Current IDD VDD = 20V, VIN = VDD or GND 1, 4 +25oC - 7.5 A N Threshold Voltage VNTH VDD = 10V, ISS = -10A 1, 4 +25oC -2.8 -0.2 V N Threshold Voltage VTN VDD = 10V, ISS = -10A 1, 4 +25oC - 1 V Delta P Threshold Voltage VTP VSS = 0V, IDD = 10A 1, 4 +25oC 0.2 2.8 V P Threshold Voltage VTP VSS = 0V, IDD = 10A 1, 4 +25oC - 1 V Delta Functional F VDD = 18V, VIN = VDD or GND 1 +25oC VOH > VOL < V VDD/2 VDD/2 VDD = 3V, VIN = VDD or GND Propagation Delay Time TPHL VDD = 5V 1, 2, 3, 4 +25oC - 1.35 x ns TPLH +25oC Limit NOTES: 1. All voltages referenced to device GND. 3. See Table 2 for +25oC limit. 2. CL = 50pF, RL = 200K, Input TR, TF < 20ns. 4. Read and Record
TABLE 5. BURN-IN AND LIFE TEST DELTA PARAMETERS +25OC PARAMETER SYMBOL DELTA LIMIT
Supply Current - MSI-1 IDD 0.2A Output Current (Sink) IOL5 20% x Pre-Test Reading Output Current (Source) IOH5A 20% x Pre-Test Reading
TABLE 6. APPLICABLE SUBGROUPS MIL-STD-883 CONFORMANCE GROUP METHOD GROUP A SUBGROUPS READ AND RECORD
Initial Test (Pre Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A Interim Test 1 (Post Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A Interim Test 2 (Post Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A PDA (Note 1) 100% 5004 1, 7, 9, Deltas Interim Test 3 (Post Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A FN3322 Rev 0.00 Page 4 of 8 December 1992
