Datasheet ADIS16362 (Analog Devices)

制造商Analog Devices
描述Six Degrees of Freedom Inertial Sensor
页数 / 页21 / 1 — Six Degrees of Freedom Inertial Sensor. Data Sheet. ADIS16362. FEATURES. …
修订版F
文件格式/大小PDF / 372 Kb
文件语言英语

Six Degrees of Freedom Inertial Sensor. Data Sheet. ADIS16362. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet ADIS16362 Analog Devices, 修订版: F

该数据表的模型线

文件文字版本

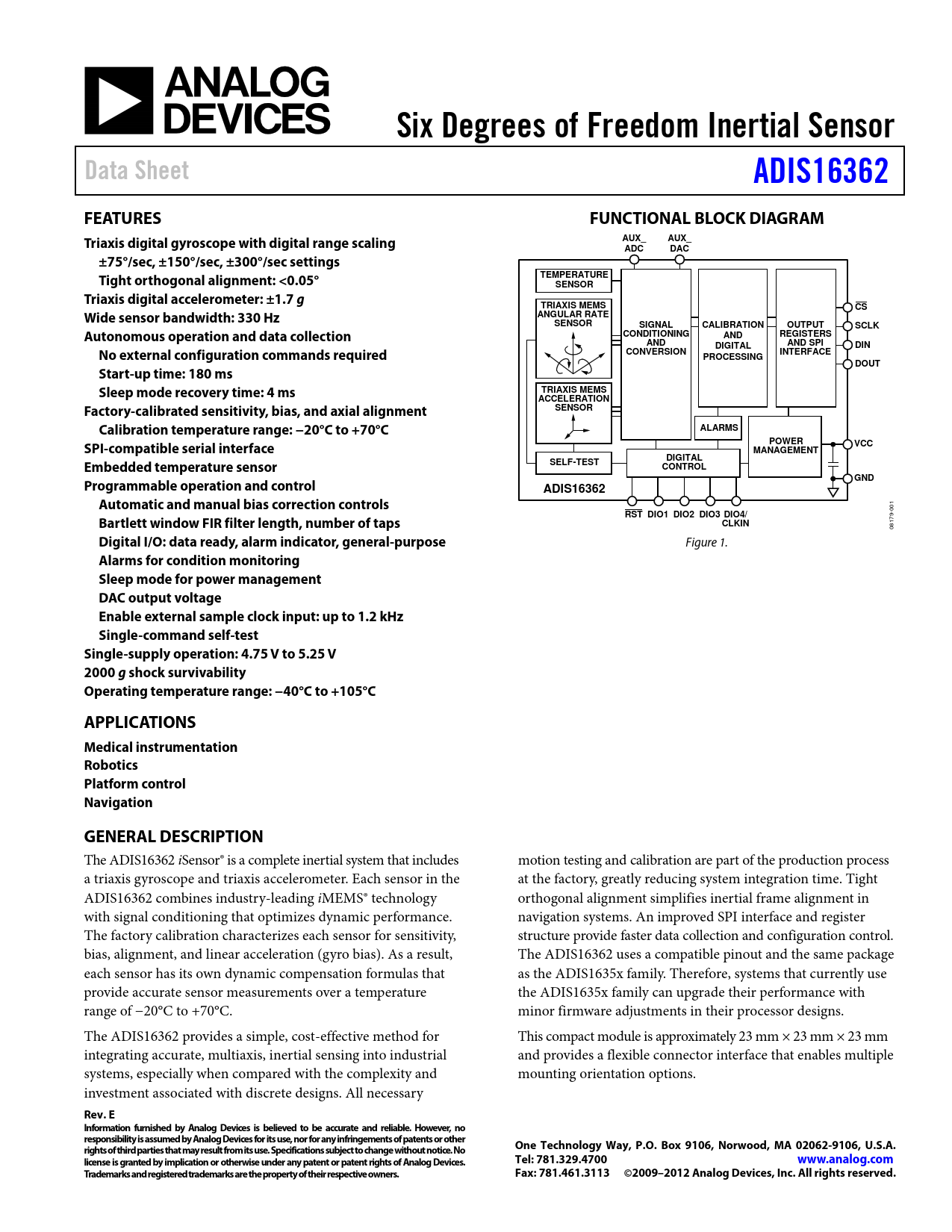

Six Degrees of Freedom Inertial Sensor Data Sheet ADIS16362 FEATURES FUNCTIONAL BLOCK DIAGRAM Triaxis digital gyroscope with digital range scaling AUX_ AUX_ ADC DAC ±75°/sec, ±150°/sec, ±300°/sec settings Tight orthogonal alignment: <0.05° TEMPERATURE SENSOR Triaxis digital accelerometer: ±1.7 g TRIAXIS MEMS CS Wide sensor bandwidth: 330 Hz ANGULAR RATE SENSOR SIGNAL CALIBRATION OUTPUT SCLK Autonomous operation and data collection CONDITIONING AND REGISTERS AND DIGITAL AND SPI DIN No external configuration commands required CONVERSION INTERFACE PROCESSING DOUT Start-up time: 180 ms Sleep mode recovery time: 4 ms TRIAXIS MEMS ACCELERATION Factory-calibrated sensitivity, bias, and axial alignment SENSOR Calibration temperature range: −20°C to +70°C ALARMS SPI-compatible serial interface POWER VCC MANAGEMENT DIGITAL Embedded temperature sensor SELF-TEST CONTROL Programmable operation and control GND ADIS16362 Automatic and manual bias correction controls
001
RST DIO1 DIO2 DIO3 DIO4/ Bartlett window FIR filter length, number of taps CLKIN
08179-
Digital I/O: data ready, alarm indicator, general-purpose
Figure 1.
Alarms for condition monitoring Sleep mode for power management DAC output voltage Enable external sample clock input: up to 1.2 kHz Single-command self-test Single-supply operation: 4.75 V to 5.25 V 2000 g shock survivability Operating temperature range: −40°C to +105°C APPLICATIONS Medical instrumentation Robotics Platform control Navigation GENERAL DESCRIPTION
The ADIS16362 iSensor® is a complete inertial system that includes motion testing and calibration are part of the production process a triaxis gyroscope and triaxis accelerometer. Each sensor in the at the factory, greatly reducing system integration time. Tight ADIS16362 combines industry-leading iMEMS® technology orthogonal alignment simplifies inertial frame alignment in with signal conditioning that optimizes dynamic performance. navigation systems. An improved SPI interface and register The factory calibration characterizes each sensor for sensitivity, structure provide faster data collection and configuration control. bias, alignment, and linear acceleration (gyro bias). As a result, The ADIS16362 uses a compatible pinout and the same package each sensor has its own dynamic compensation formulas that as the ADIS1635x family. Therefore, systems that currently use provide accurate sensor measurements over a temperature the ADIS1635x family can upgrade their performance with range of −20°C to +70°C. minor firmware adjustments in their processor designs. The ADIS16362 provides a simple, cost-effective method for This compact module is approximately 23 mm × 23 mm × 23 mm integrating accurate, multiaxis, inertial sensing into industrial and provides a flexible connector interface that enables multiple systems, especially when compared with the complexity and mounting orientation options. investment associated with discrete designs. All necessary
Rev. E Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2009–2012 Analog Devices, Inc. All rights reserved.
