STANDARD. 5962-88630. MICROCIRCUIT DRAWING

STANDARD 5962-88630 MICROCIRCUIT DRAWING

该数据表的模型线

文件文字版本

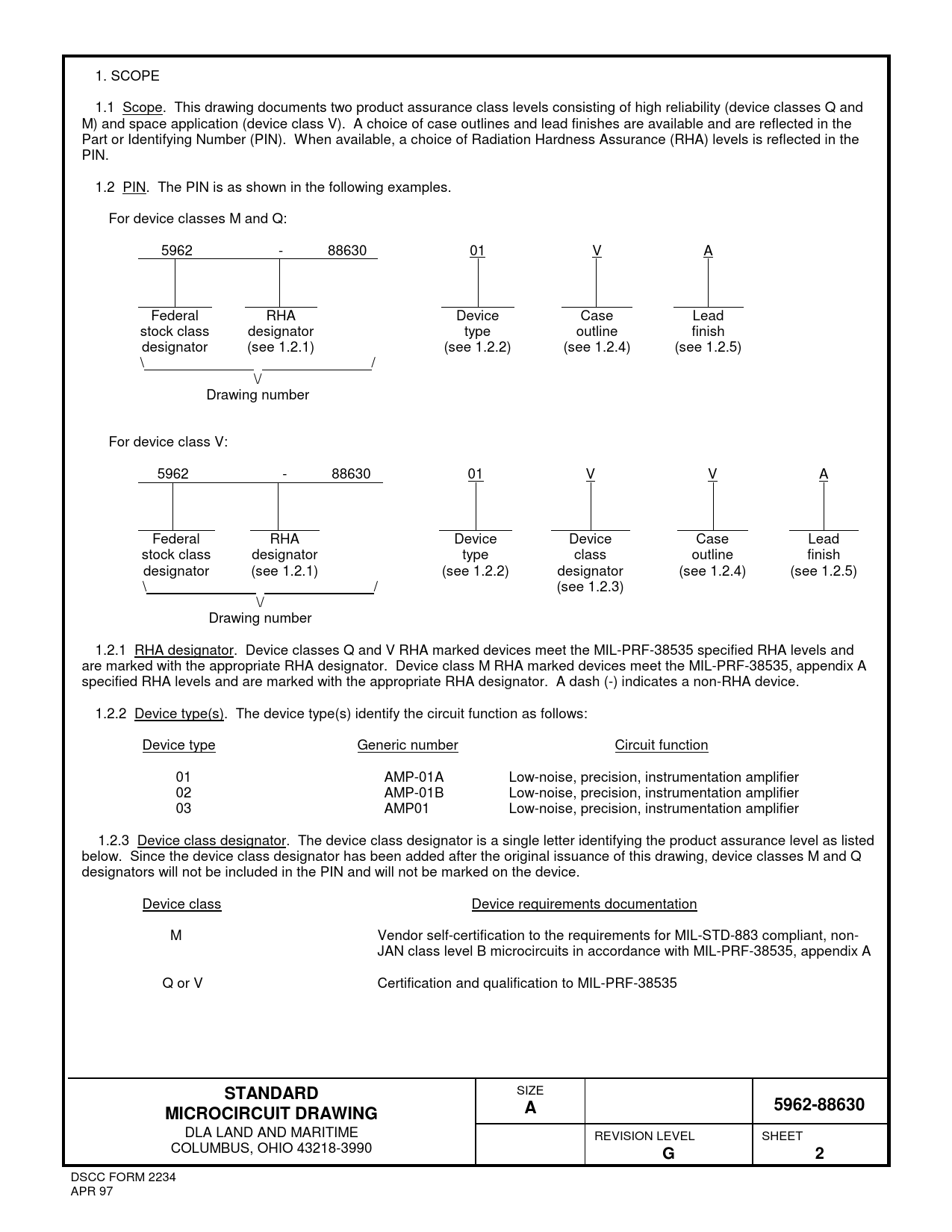

1. SCOPE 1.1 Scope. This drawing documents two product assurance class levels consisting of high reliability (device classes Q and M) and space application (device class V). A choice of case outlines and lead finishes are available and are reflected in the Part or Identifying Number (PIN). When available, a choice of Radiation Hardness Assurance (RHA) levels is reflected in the PIN. 1.2 PIN. The PIN is as shown in the following examples. For device classes M and Q: 5962 - 88630 01 V A Federal RHA Device Case Lead stock class designator type outline finish designator (see 1.2.1) (see 1.2.2) (see 1.2.4) (see 1.2.5) \ / \/ Drawing number For device class V: 5962 - 88630 01 V V A Federal RHA Device Device Case Lead stock class designator type class outline finish designator (see 1.2.1) (see 1.2.2) designator (see 1.2.4) (see 1.2.5) \ / (see 1.2.3) \/ Drawing number 1.2.1 RHA designator. Device classes Q and V RHA marked devices meet the MIL-PRF-38535 specified RHA levels and are marked with the appropriate RHA designator. Device class M RHA marked devices meet the MIL-PRF-38535, appendix A specified RHA levels and are marked with the appropriate RHA designator. A dash (-) indicates a non-RHA device. 1.2.2 Device type(s). The device type(s) identify the circuit function as follows: Device type Generic number Circuit function 01 AMP-01A Low-noise, precision, instrumentation amplifier 02 AMP-01B Low-noise, precision, instrumentation amplifier 03 AMP01 Low-noise, precision, instrumentation amplifier 1.2.3 Device class designator. The device class designator is a single letter identifying the product assurance level as listed below. Since the device class designator has been added after the original issuance of this drawing, device classes M and Q designators will not be included in the PIN and will not be marked on the device. Device class Device requirements documentation M Vendor self-certification to the requirements for MIL-STD-883 compliant, non- JAN class level B microcircuits in accordance with MIL-PRF-38535, appendix A Q or V Certification and qualification to MIL-PRF-38535
STANDARD
SIZE
5962-88630 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990
G 2
