STANDARD. 5962-88630. MICROCIRCUIT DRAWING

STANDARD 5962-88630 MICROCIRCUIT DRAWING

该数据表的模型线

文件文字版本

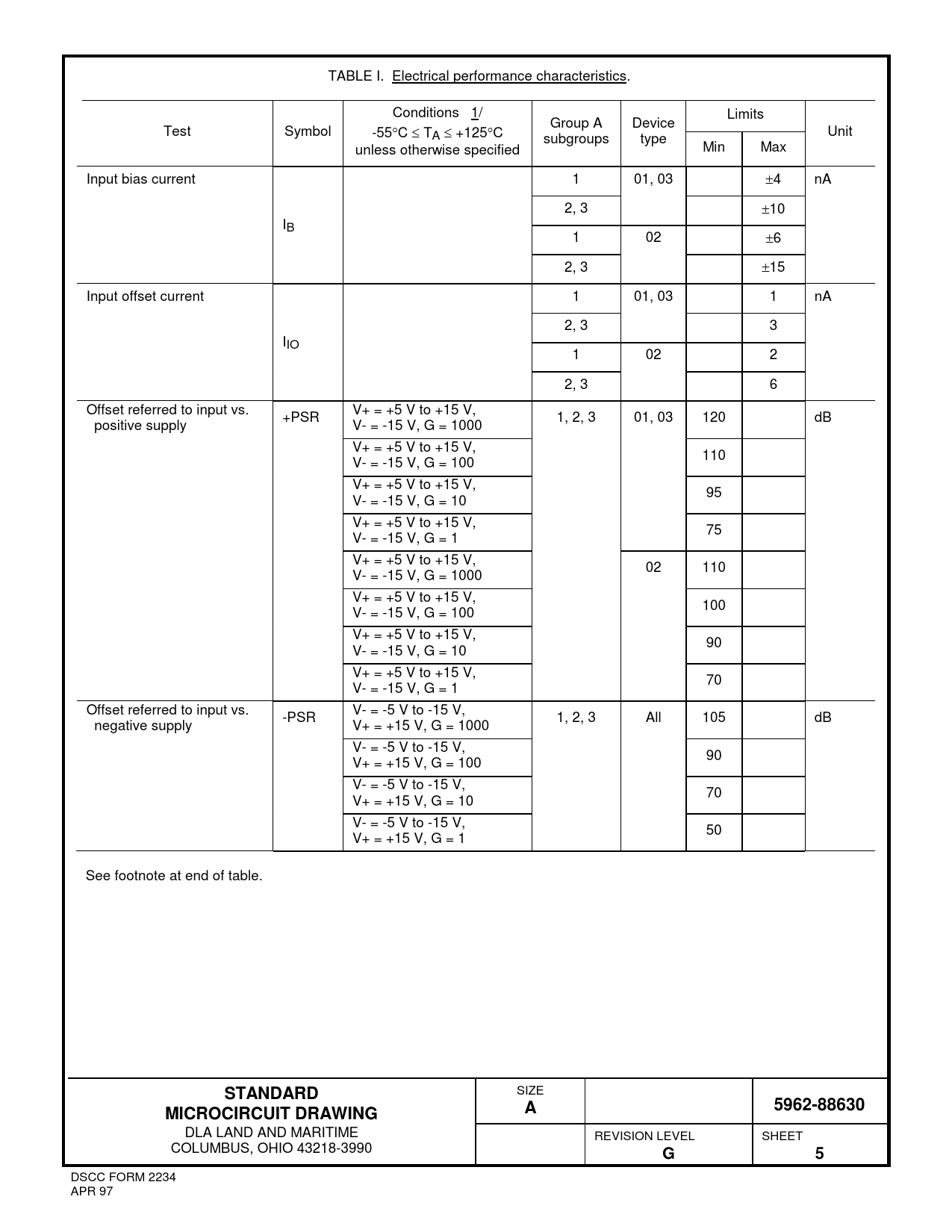

TABLE I. Electrical performance characteristics. Conditions 1/ Limits Group A Device Test Symbol -55°C ≤ TA ≤ +125°C Unit subgroups type unless otherwise specified Min Max Input bias current 1 01, 03 ±4 nA 2, 3 ±10 IB 1 02 ±6 2, 3 ±15 Input offset current 1 01, 03 1 nA 2, 3 3 IIO 1 02 2 2, 3 6 Offset referred to input vs. V+ = +5 V to +15 V, +PSR 1, 2, 3 01, 03 120 dB positive supply V- = -15 V, G = 1000 V+ = +5 V to +15 V, 110 V- = -15 V, G = 100 V+ = +5 V to +15 V, 95 V- = -15 V, G = 10 V+ = +5 V to +15 V, 75 V- = -15 V, G = 1 V+ = +5 V to +15 V, 02 110 V- = -15 V, G = 1000 V+ = +5 V to +15 V, 100 V- = -15 V, G = 100 V+ = +5 V to +15 V, 90 V- = -15 V, G = 10 V+ = +5 V to +15 V, 70 V- = -15 V, G = 1 Offset referred to input vs. V- = -5 V to -15 V, -PSR 1, 2, 3 All 105 dB negative supply V+ = +15 V, G = 1000 V- = -5 V to -15 V, 90 V+ = +15 V, G = 100 V- = -5 V to -15 V, 70 V+ = +15 V, G = 10 V- = -5 V to -15 V, 50 V+ = +15 V, G = 1 See footnote at end of table.
STANDARD
SIZE
5962-88630 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990
G 5
