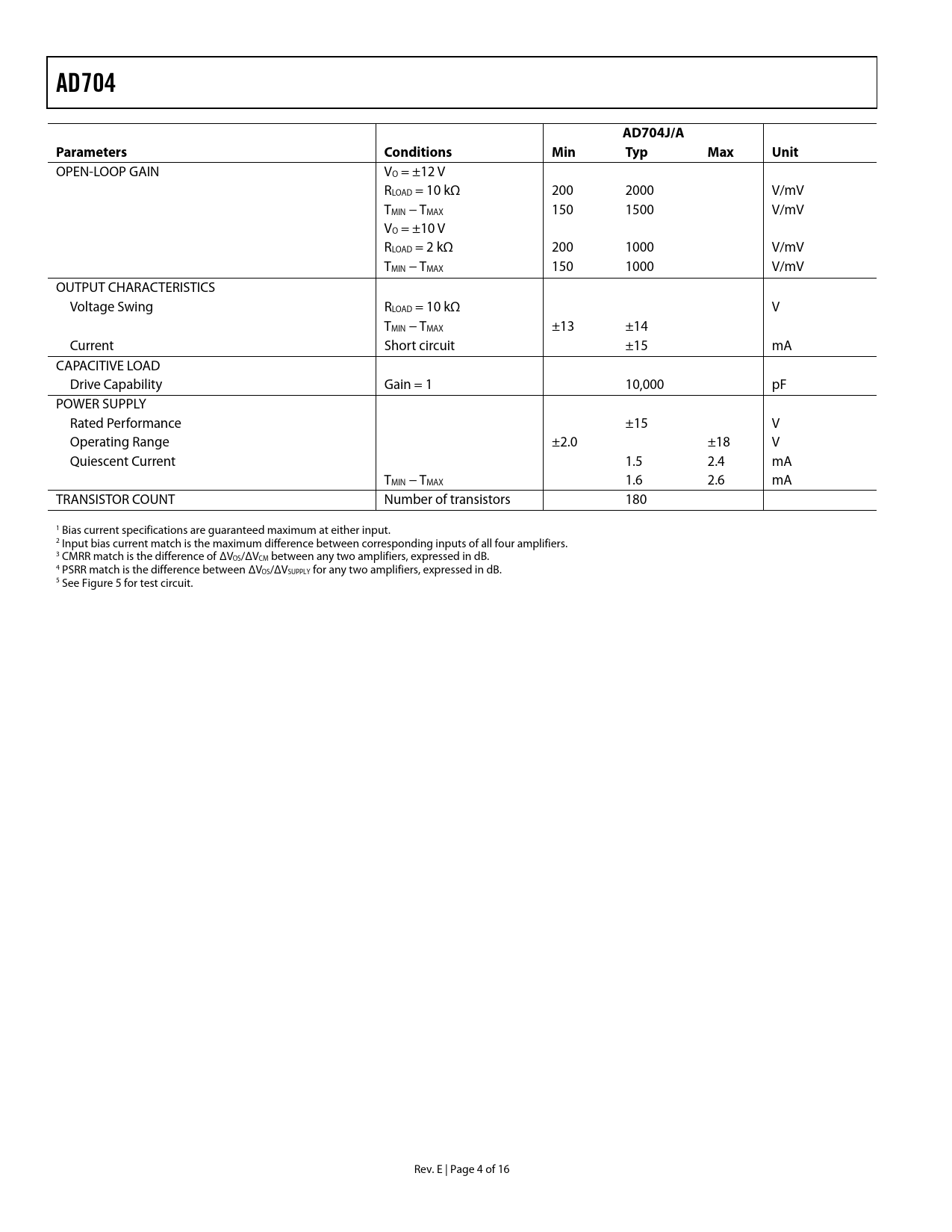

AD704 AD704J/A Parameters Conditions Min Typ Max Unit
OPEN-LOOP GAIN VO = ±12 V RLOAD = 10 kΩ 200 2000 V/mV TMIN − TMAX 150 1500 V/mV VO = ±10 V RLOAD = 2 kΩ 200 1000 V/mV TMIN − TMAX 150 1000 V/mV OUTPUT CHARACTERISTICS Voltage Swing RLOAD = 10 kΩ V TMIN − TMAX ±13 ±14 Current Short circuit ±15 mA CAPACITIVE LOAD Drive Capability Gain = 1 10,000 pF POWER SUPPLY Rated Performance ±15 V Operating Range ±2.0 ±18 V Quiescent Current 1.5 2.4 mA TMIN − TMAX 1.6 2.6 mA TRANSISTOR COUNT Number of transistors 180 1 Bias current specifications are guaranteed maximum at either input. 2 Input bias current match is the maximum difference between corresponding inputs of all four amplifiers. 3 CMRR match is the difference of ΔVOS/ΔVCM between any two amplifiers, expressed in dB. 4 PSRR match is the difference between ΔVOS/ΔVSUPPLY for any two amplifiers, expressed in dB. 5 See Figure 5 for test circuit. Rev. E | Page 4 of 16 Document Outline Features Applications General Description Connection Diagrams Revision History Specifications Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Theory of Operation Outline Dimensions Ordering Guide
