| 描述 | Picoampere Input Current Quad Bipolar Op Amp |
| 页数 / 页 | 17 / 1 — Picoampere Input Current Quad. Bipolar Op Amp. AD704. FEATURES. … |
| 修订版 | E |
| 文件格式/大小 | PDF / 275 Kb |
| 文件语言 | 英语 |

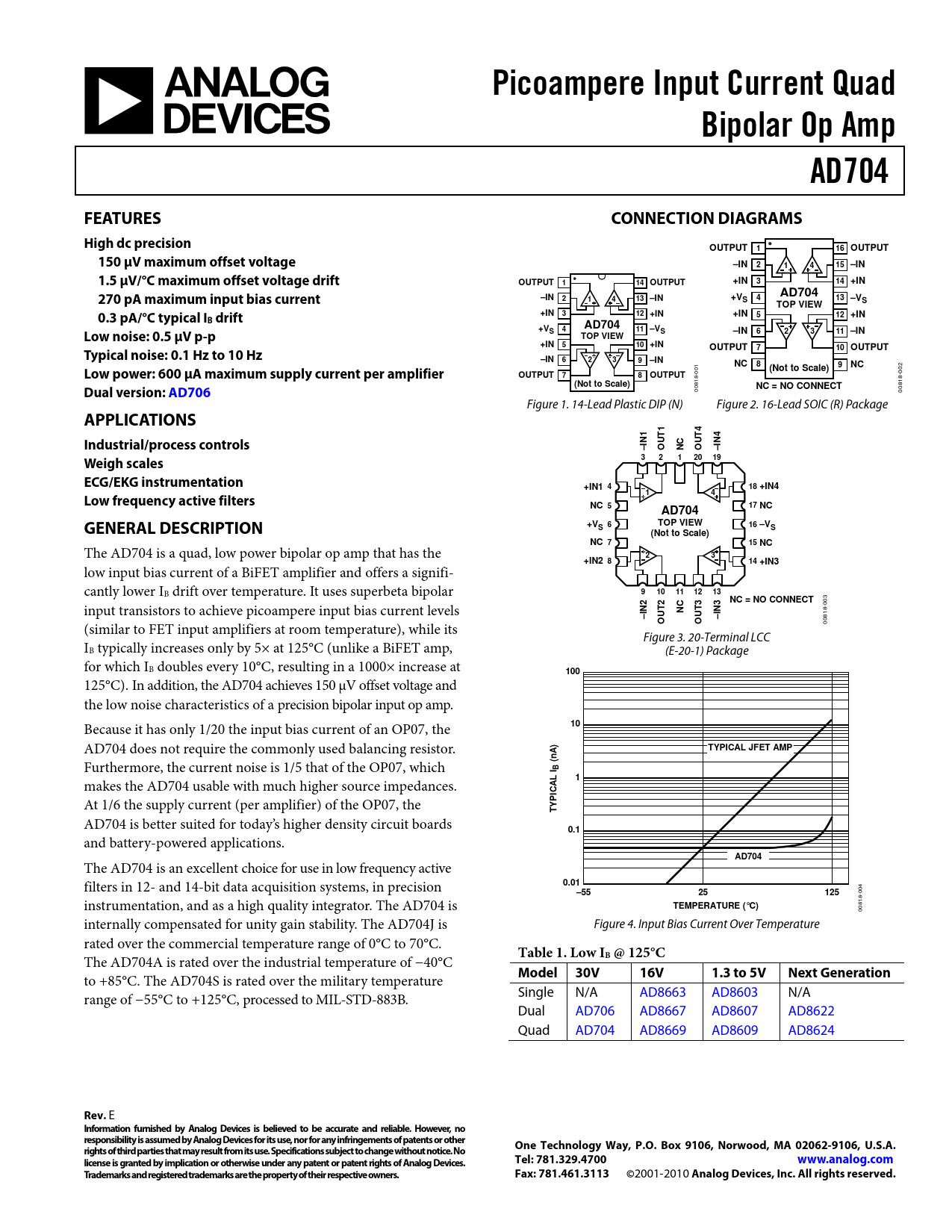

Picoampere Input Current Quad. Bipolar Op Amp. AD704. FEATURES. CONNECTION DIAGRAMS. High dc precision. OUTPUT. 16 OUTPUT
该数据表的模型线
AD704
文件文字版本
Picoampere Input Current Quad Bipolar Op Amp AD704 FEATURES CONNECTION DIAGRAMS High dc precision OUTPUT 1 16 OUTPUT 150 µV maximum offset voltage –IN 2 1 4 15 –IN 1.5 µV/°C maximum offset voltage drift OUTPUT 1 14 OUTPUT +IN 3 14 +IN 270 pA maximum input bias current AD704 –IN 2 1 4 13 –IN +VS 4 13 –VS TOP VIEW 0.3 pA/°C typical I +IN 3 12 +IN +IN 5 12 +IN B drift AD704 Low noise: 0.5 µV p-p +VS 4 11 –VS –IN 6 2 3 11 –IN TOP VIEW +IN 5 10 +IN Typical noise: 0.1 Hz to 10 Hz OUTPUT 7 10 OUTPUT –IN 6 2 3 9 –IN NC 8 9 NC Low power: 600 µA maximum supply current per amplifier (Not to Scale)
