Datasheet TLV2370, TLV2371, TLV2372, TLV2373, TLV2374, TLV2375 (Texas Instruments) - 8

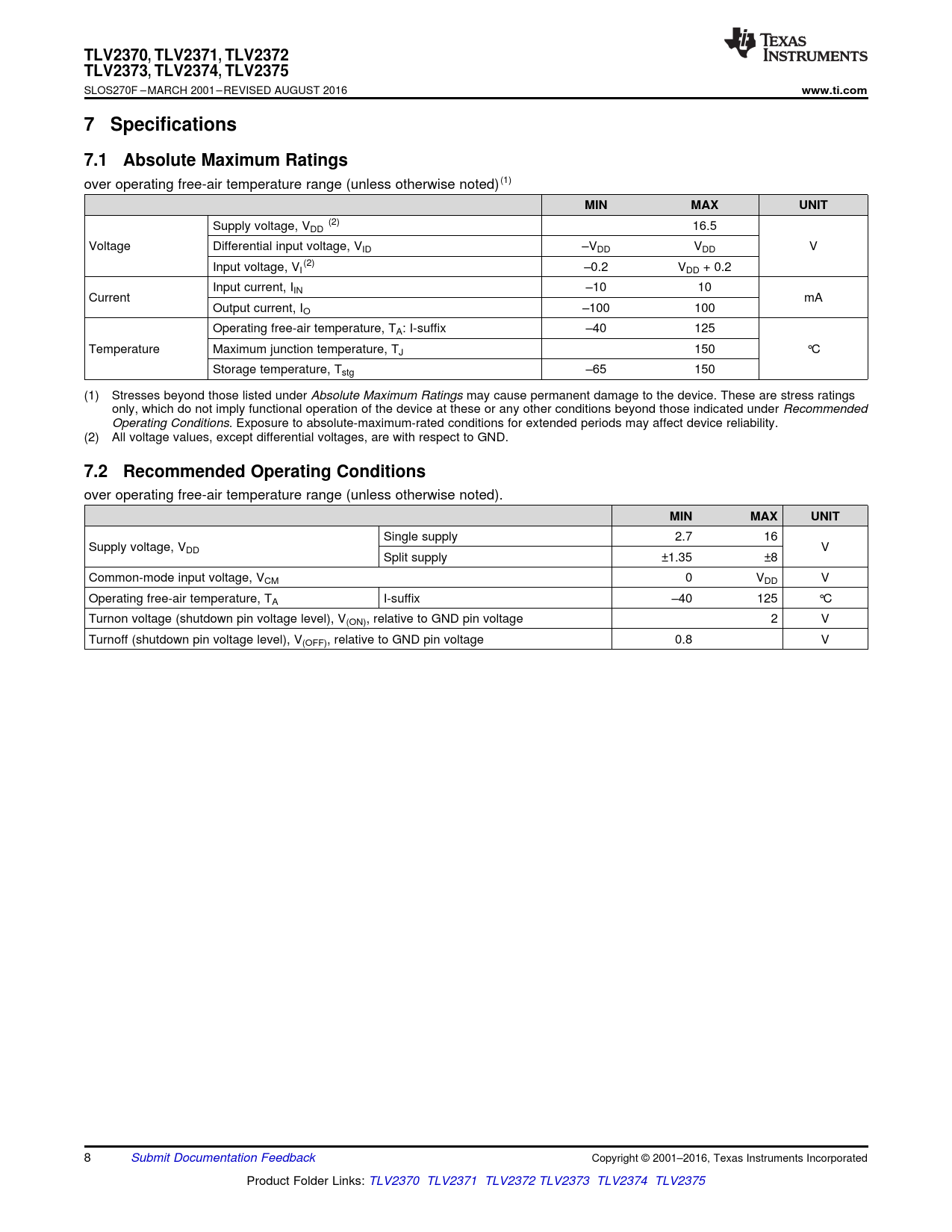

TLV2370, TLV2371, TLV2372 TLV2373, TLV2374, TLV2375
SLOS270F – MARCH 2001 – REVISED AUGUST 2016
www.ti.com 7 Specifications 7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage, V (2) DD 16.5 Voltage Differential input voltage, V V ID –VDD VDD Input voltage, V (2) I –0.2 VDD + 0.2 Input current, IIN –10 10 Current mA Output current, IO –100 100 Operating free-air temperature, TA: I-suffix –40 125 Temperature Maximum junction temperature, T °C J 150 Storage temperature, Tstg –65 150 (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) All voltage values, except differential voltages, are with respect to GND.
7.2 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted).
MIN MAX UNIT
Single supply 2.7 16 Supply voltage, VDD V Split supply ±1.35 ±8 Common-mode input voltage, VCM 0 VDD V Operating free-air temperature, TA I-suffix –40 125 °C Turnon voltage (shutdown pin voltage level), V(ON), relative to GND pin voltage 2 V Turnoff (shutdown pin voltage level), V(OFF), relative to GND pin voltage 0.8 V 8 Submit Documentation Feedback Copyright © 2001–2016, Texas Instruments Incorporated Product Folder Links: TLV2370 TLV2371 TLV2372 TLV2373 TLV2374 TLV2375 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Device Comparison Tables 6 Pin Configuration and Functions 7 Specifications 7.1 Absolute Maximum Ratings 7.2 Recommended Operating Conditions 7.3 Thermal Information: TLV2370 7.4 Thermal Information: TLV2371 7.5 Thermal Information: TLV2372 7.6 Thermal Information: TLV2373 7.7 Thermal Information: TLV2374 7.8 Thermal Information: TLV2375 7.9 Electrical Characteristics 7.10 Typical Characteristics 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Rail-to-Rail Input Operation 8.3.2 Driving a Capacitive Load 8.3.3 Offset Voltage 8.3.4 General Configurations 8.3.5 Shutdown Function 8.4 Device Functional Modes 9 Application and Implementation 9.1 Application Information 9.2 Typical Application 9.2.1 Design Requirements 9.2.2 Detailed Design Procedure 9.2.3 Application Curve 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Example 11.3 Power Dissipation Considerations 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation 12.2 Related Links 12.3 Receiving Notification of Documentation Updates 12.4 Community Resources 12.5 Trademarks 12.6 Electrostatic Discharge Caution 12.7 Glossary 13 Mechanical, Packaging, and Orderable Information
