A C T ™ 1 S e r i e s F P G A s. P a c k a g e P i n A s s i g n m e n t s (continued). 84-Pin CQFP. 84-Pin. CQFP. Pin
文件文字版本

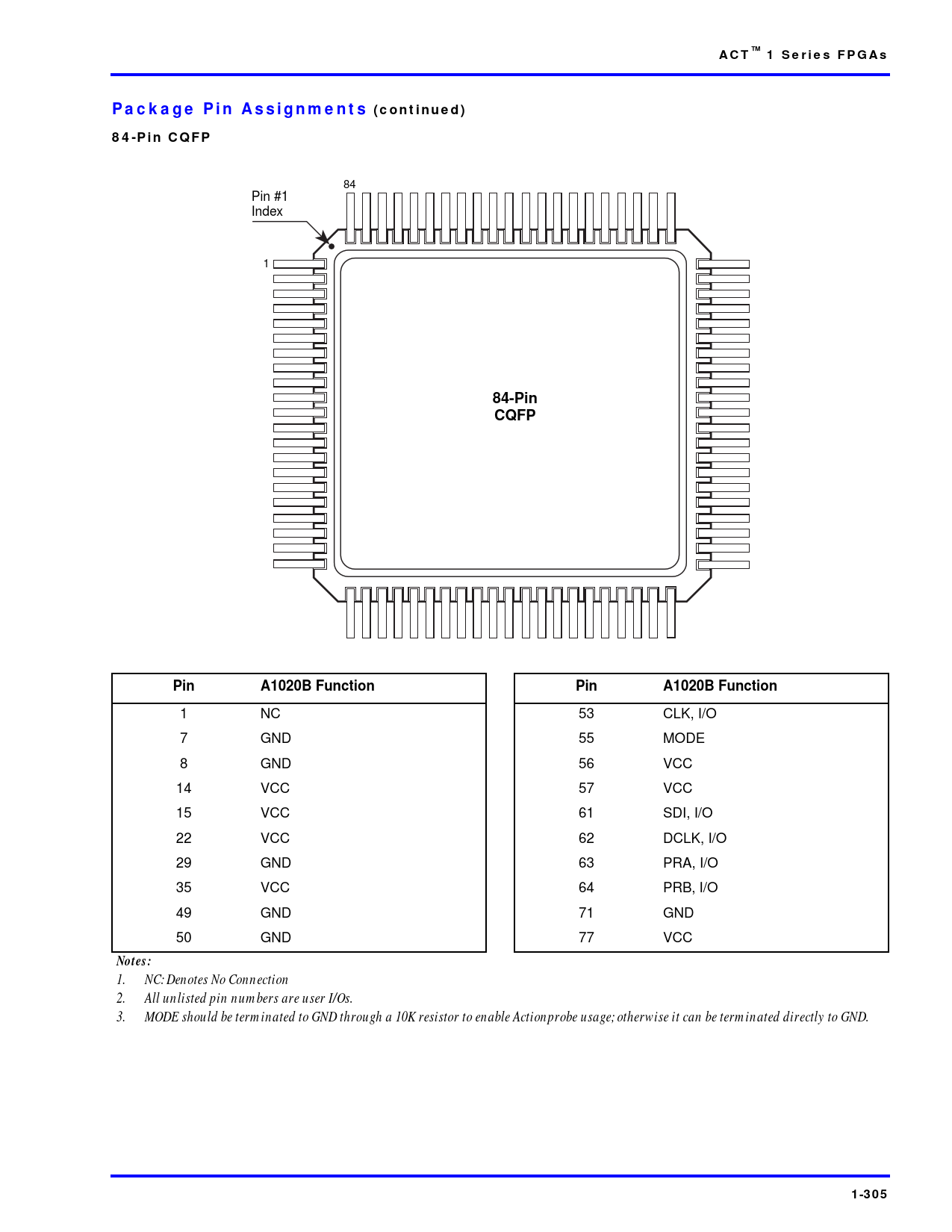

A C T ™ 1 S e r i e s F P G A s P a c k a g e P i n A s s i g n m e n t s (continued) 84-Pin CQFP
84 Pin #1 Index 1
84-Pin CQFP Pin A1020B Function Pin A1020B Function
1 NC 53 CLK, I/O 7 GND 55 MODE 8 GND 56 VCC 14 VCC 57 VCC 15 VCC 61 SDI, I/O 22 VCC 62 DCLK, I/O 29 GND 63 PRA, I/O 35 VCC 64 PRB, I/O 49 GND 71 GND 50 GND 77 VCC
Notes:
1. NC: Denotes No Connection 2. All unlisted pin numbers are user I/Os. 3. MODE should be terminated to GND through a 10K resistor to enable Actionprobe usage; otherwise it can be terminated directly to GND.
1-305
