| 制造商 | Bourns |
| 描述 | 16 mm Incremental Encoder |
| 页数 / 页 | 4 / 3 — PEC16 - 16 mm Incremental Encoder. Product Dimensions. PEC16-2xxxF-Nxxxx. … |
| 文件格式/大小 | PDF / 646 Kb |
| 文件语言 | 英语 |
PEC16 - 16 mm Incremental Encoder. Product Dimensions. PEC16-2xxxF-Nxxxx. PEC16-4xxxF-Nxxxx. Panel Hole Detail. Hardware. NUT. WASHER
该数据表的模型线
- PEC16-2015F-N0024 PEC16-2015F-S0012 PEC16-2015F-S0024 PEC16-2020F-N0024 PEC16-2020F-S0012 PEC16-2020F-S0024 PEC16-2025F-N0024 PEC16-2030F-N0024 PEC16-2115F-N0012 PEC16-2115F-S0012 PEC16-2120F-N0012 PEC16-2120F-S0012 PEC16-2125F-N0012 PEC16-2130F-N0012 PEC16-2215F-N0024 PEC16-2215F-S0024 PEC16-2220F-N0024 PEC16-2220F-S0012 PEC16-2220F-S0024 PEC16-2225F-N0024 PEC16-2230F-N0024 PEC16-4015F-N0024 PEC16-4015F-S0012 PEC16-4015F-S0024 PEC16-4020F-N0012 PEC16-4020F-N0024 PEC16-4020F-S0012 PEC16-4020F-S0024 PEC16-4025F-N0024 PEC16-4030F-N0024 PEC16-4115F-N0012 PEC16-4115F-S0012 PEC16-4120F-N0012 PEC16-4120F-S0012 PEC16-4125F-N0012 PEC16-4130F-N0012 PEC16-4215F-N0024 PEC16-4215F-S0024 PEC16-4220F-N0024 PEC16-4220F-S0012 PEC16-4220F-S0024 PEC16-4225F-N0024 PEC16-4230F-N0024 PEC16-42AAF-S0024
文件文字版本

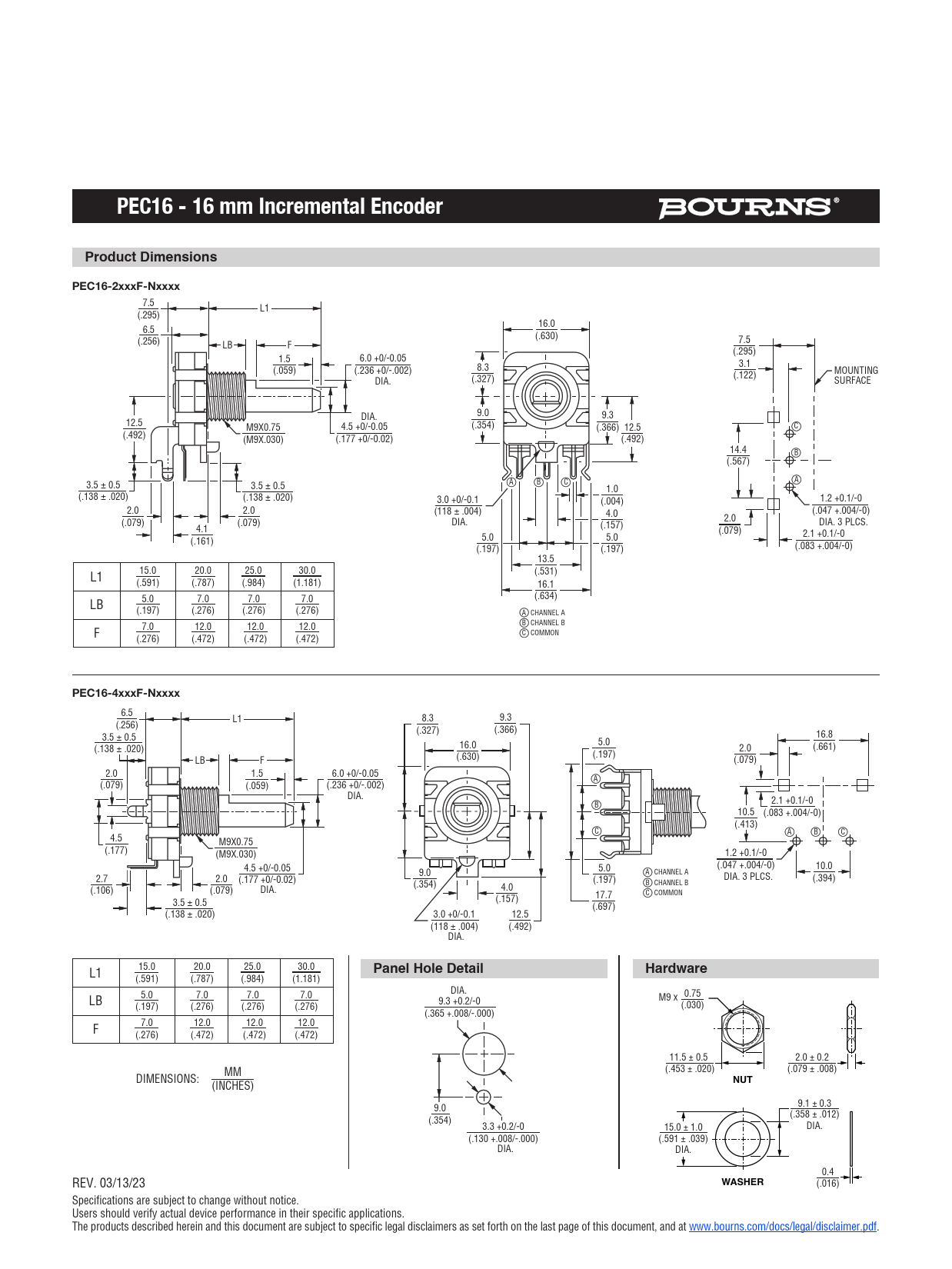

PEC16 - 16 mm Incremental Encoder Product Dimensions PEC16-2xxxF-Nxxxx
7.5 L1 (.295) 6.5 16.0 (.256) (.630) 7.5 LB F (.295) 1.5 6.0 +0/-0.05 3.1 (.059) 8.3 (.236 +0/-.002) (.122) MOUNTING DIA. (.327) SURFACE 9.0 DIA. 9.3 12.5 M9X0.75 4.5 +0/-0.05 (.354) (.366) 12.5 C (.492) (M9X.030) (.177 +0/-0.02) (.492) 14.4 B (.567) LM1 17.5 20.0 25.0 30.0 3.5 A ± 0.5 (.688) (.787) 3.5 ± (.984) 0.5 (1.181) A B C 1.0 (.138 ± .020) 7.0 (.138 12.0 ± .020) 12.0 3.0 +0/-0.1 (.004) 1.2 +0.1/-0 l 5.0 2.0(.197) (.276) 2.0 (.472) (.472) (118 ± .004) 4.0 (.047 +.004/-0) (.079) (.079) DIA. 2.0 (.157) DIA. 3 PLCS. 4.1 (.079) 5.0 5.0 2.1 +0.1/-0 (.161) (.197) (.197) (.083 +.004/-0) 13.5 15.0 20.0 25.0 30.0 (.531) L1 (.591) (.787) (.984) (1.181) 16.1 (.634) LB 5.0 7.0 7.0 7.0 (.197) (.276) (.276) (.276) A CHANNEL A B CHANNEL B F 7.0 12.0 12.0 12.0 C COMMON (.276) (.472) (.472) (.472)
PEC16-4xxxF-Nxxxx
6.5 L1 8.3 9.3 (.256) (.327) (.366) 3.5 ± 0.5 16.8 5.0 (.138 ± .020) 16.0 2.0 (.661) (.630) (.197) LB F (.079) 2.0 1.5 6.0 +0/-0.05 A (.079) (.059) (.236 +0/-.002) DIA. 2.1 +0.1/-0 B 10.5 (.083 +.004/-0) (.413) C A B C 4.5 M9X0.75 (.177) (M9X.030) 1.2 +0.1/-0 20.0 25.0 30.0 (.047 +.004/-0) 4.5 +0/-0.05 5.0 10.0 LM1 17.5 9.0 A CHANNEL A 2.7 (.688) (.787) 2.0 (.984) (1.181) DIA. 3 PLCS. (.177 +0/-0.02) (.197) (.394) (.354) DIA. 4.0 B CHANNEL B (.106) (.079) 7.0 12.0 12.0 17.7 C COMMON l 5.0 3.5 ± 0.5 (.157) (.197) (.276) (.472) (.472) (.697) (.138 ± .020) 3.0 +0/-0.1 12.5 (118 ± .004) (.492) DIA. 15.0 20.0 25.0 30.0 L1
Panel Hole Detail Hardware
(.591) (.787) (.984) (1.181) DIA. LB 5.0 7.0 7.0 7.0 0.75 M9 x (.197) (.276) (.276) (.276) 9.3 +0.2/-0 (.030) (.365 +.008/-.000) F 7.0 12.0 12.0 12.0 (.276) (.472) (.472) (.472) 11.5 ± 0.5 2.0 ± 0.2 (.453 ± .020) (.079 ± .008) DIMENSIONS: MM (INCHES)
NUT
9.0 9.1 ± 0.3 (.358 ± .012) (.354) 3.3 +0.2/-0 15.0 ± 1.0 DIA. (.130 +.008/-.000) (.591 ± .039) DIA. DIA. 0.4 REV. 03/13/23
WASHER
(.016) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
