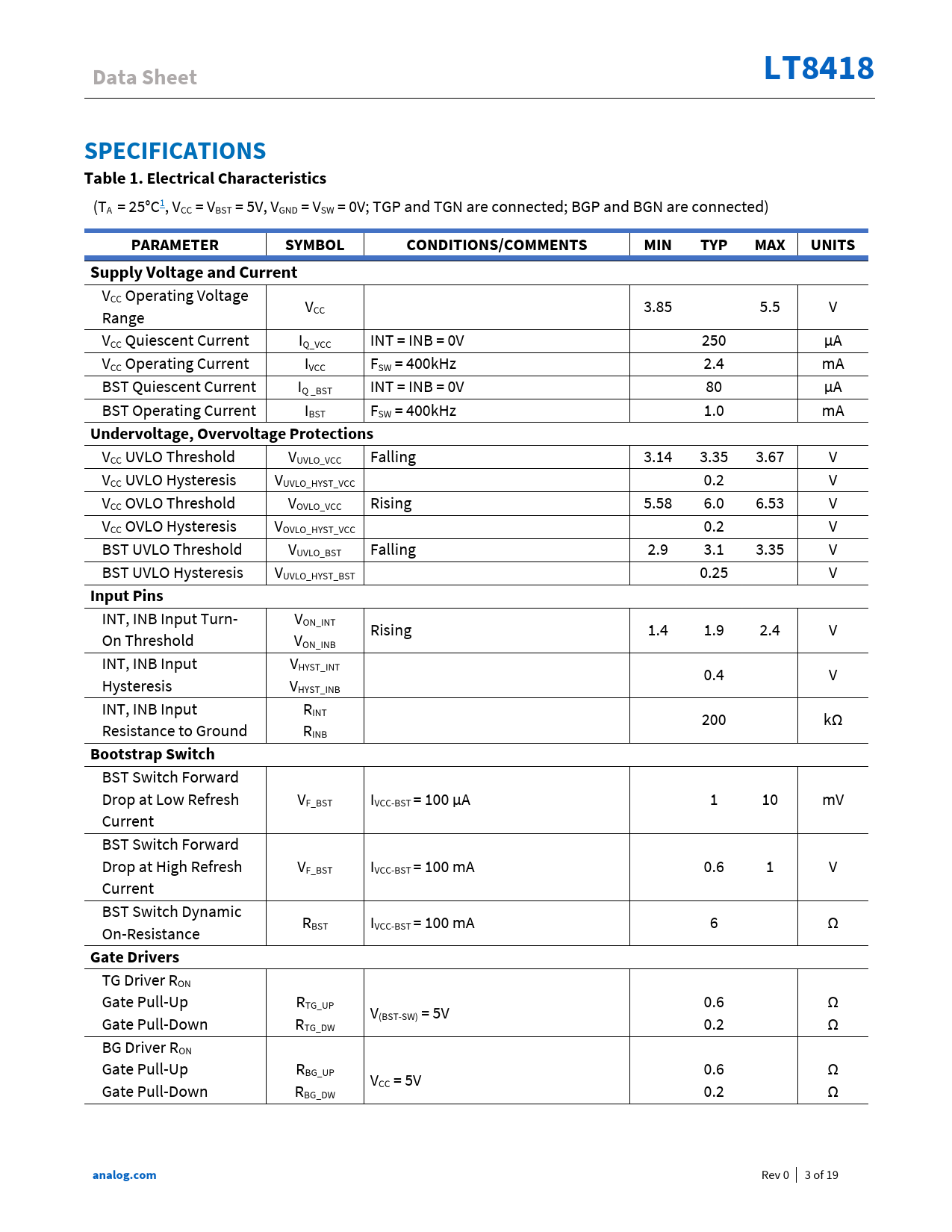

Data Sheet LT8418 SPECIFICATIONS Table 1. Electrical Characteristics
(TA = 25°C1, VCC = VBST = 5V, VGND = VSW = 0V; TGP and TGN are connected; BGP and BGN are connected)
PARAMETER SYMBOL CONDITIONS/COMMENTS MIN TYP MAX UNITS Supply Voltage and Current
VCC Operating Voltage V Range CC 3.85 5.5 V VCC Quiescent Current IQ_VCC INT = INB = 0V 250 µA VCC Operating Current IVCC FSW = 400kHz 2.4 mA BST Quiescent Current IQ _BST INT = INB = 0V 80 µA BST Operating Current IBST FSW = 400kHz 1.0 mA
Undervoltage, Overvoltage Protections
VCC UVLO Threshold VUVLO_VCC Falling 3.14 3.35 3.67 V VCC UVLO Hysteresis VUVLO_HYST_VCC 0.2 V VCC OVLO Threshold VOVLO_VCC Rising 5.58 6.0 6.53 V VCC OVLO Hysteresis VOVLO_HYST_VCC 0.2 V BST UVLO Threshold VUVLO_BST Falling 2.9 3.1 3.35 V BST UVLO Hysteresis VUVLO_HYST_BST 0.25 V
Input Pins
INT, INB Input Turn- VON_INT Rising 1.4 1.9 2.4 V On Threshold VON_INB INT, INB Input VHYST_INT 0.4 V Hysteresis VHYST_INB INT, INB Input RINT 200 kΩ Resistance to Ground RINB
Bootstrap Switch
BST Switch Forward Drop at Low Refresh VF_BST IVCC-BST = 100 µA 1 10 mV Current BST Switch Forward Drop at High Refresh VF_BST IVCC-BST = 100 mA 0.6 1 V Current BST Switch Dynamic R On-Resistance BST IVCC-BST = 100 mA 6 Ω
Gate Drivers
TG Driver RON Gate Pull-Up RTG_UP 0.6 Ω V Gate Pull-Down R (BST-SW) = 5V TG_DW 0.2 Ω BG Driver RON Gate Pull-Up RBG_UP 0.6 Ω V Gate Pull-Down R CC = 5V BG_DW 0.2 Ω
analog.com
