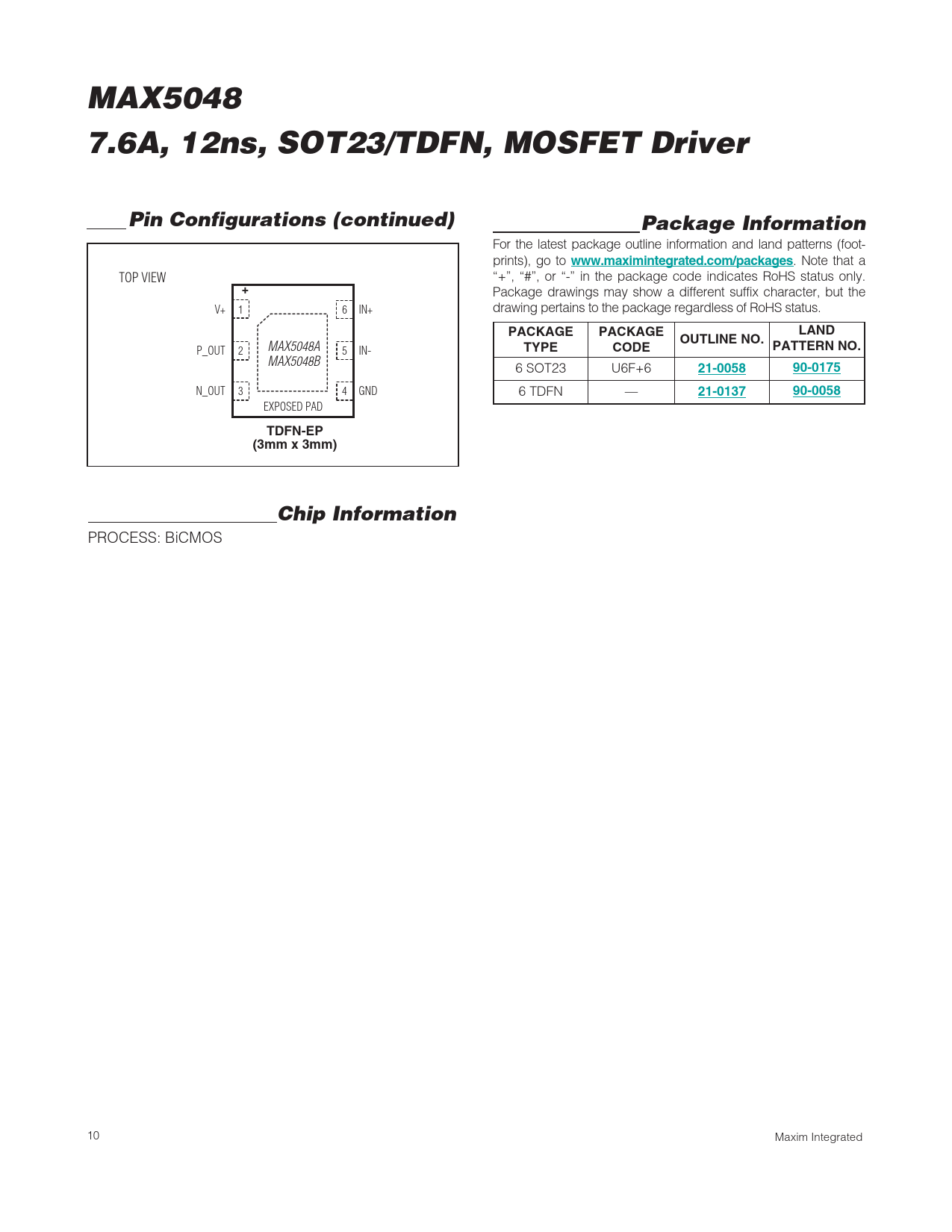

MAX5048 7.6A, 12ns, SOT23/TDFN, MOSFET Driver Pin Configurations (continued) Package Information
For the latest package outline information and land patterns (foot- prints), go to
www.maximintegrated.com/packages
. Note that a TOP VIEW “+”, “#”, or “-” in the package code indicates RoHS status only.
+
Package drawings may show a different suffix character, but the V+ 1 6 IN+ drawing pertains to the package regardless of RoHS status.
PACKAGE PACKAGE LAND OUTLINE NO.
P_OUT MAX5048A 2 5 IN-
TYPE CODE PATTERN NO.
MAX5048B 6 SOT23 U6F+6
21-0058 90-0175
N_OUT 3 4 GND 6 TDFN —
21-0137 90-0058
EXPOSED PAD
TDFN-EP (3mm x 3mm) Chip Information
PROCESS: BiCMOS 10 Maxim Integrated
