Datasheet CD4584(LX) (Lingxing Microelectronics) - 5
| 制造商 | Lingxing Microelectronics |
| 描述 | HEX Schmitt Trigger |
| 页数 / 页 | 12 / 5 — Electrical Parameter. 3.1. Absolute Maximum Ratings. Parameter. Symbol. … |
| 文件格式/大小 | PDF / 784 Kb |
| 文件语言 | 英语 |
Electrical Parameter. 3.1. Absolute Maximum Ratings. Parameter. Symbol. Conditions. Min. Max. Unit. 3.2. Recommended Operating Conditions
该数据表的模型线
文件文字版本

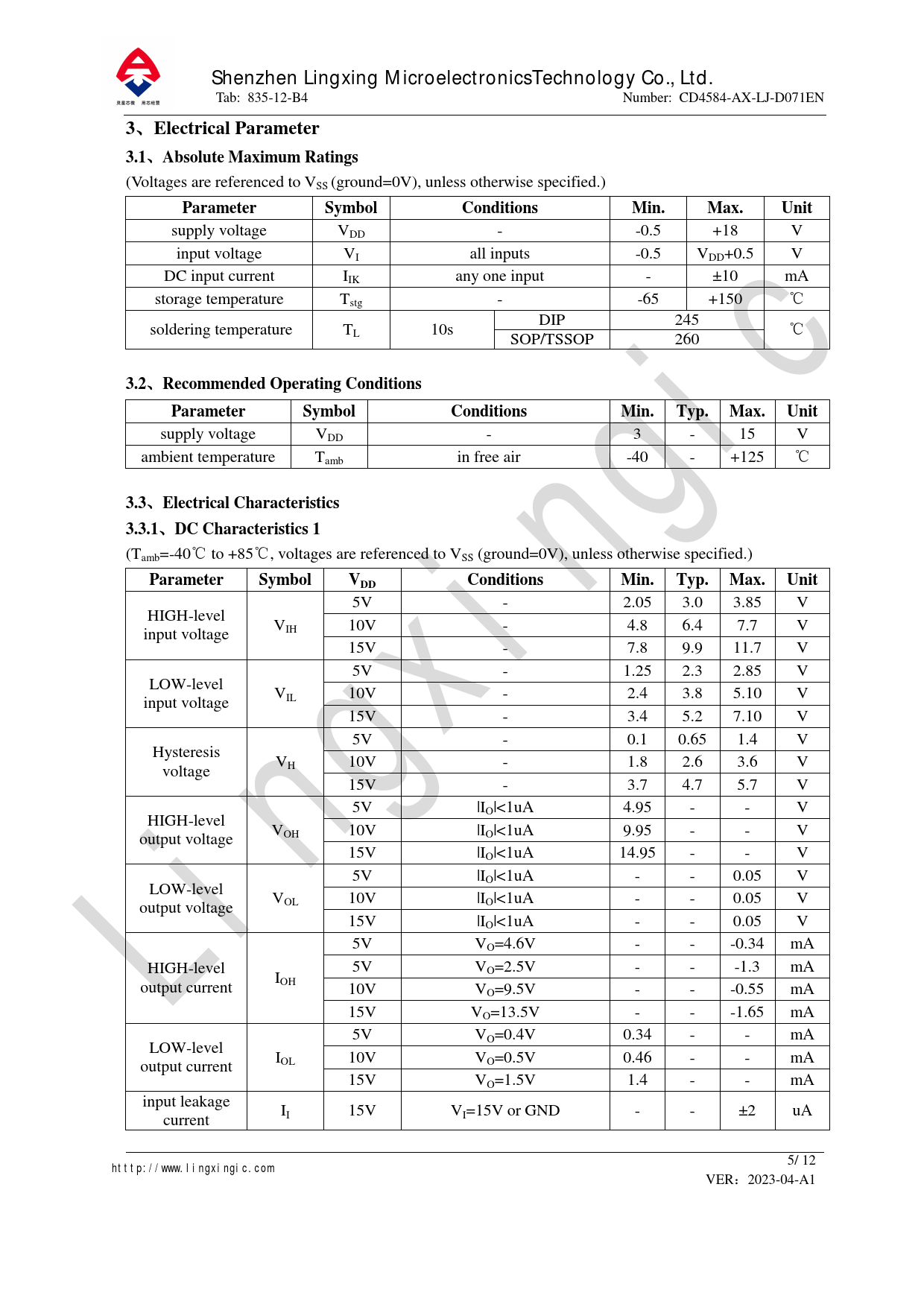

深圳市灵星芯微电子科技有限公司 Shenzhen Lingxing MicroelectronicsTechnology Co., Ltd. Tab: 835-12-B4 Number: CD4584-AX-LJ-D071EN
3
、
Electrical Parameter 3.1
、
Absolute Maximum Ratings
(Voltages are referenced to VSS (ground=0V), unless otherwise specified.)
Parameter Symbol Conditions Min. Max. Unit
supply voltage VDD - -0.5 +18 V input voltage VI all inputs -0.5 VDD+0.5 V DC input current IIK any one input - ±10 mA storage temperature Tstg - -65 +150 ℃ DIP 245 soldering temperature T ℃ L 10s SOP/TSSOP 260
3.2
、
Recommended Operating Conditions Parameter Symbol Conditions Min. Typ. Max. Unit
supply voltage VDD - 3 - 15 V ambient temperature Tamb in free air -40 - +125 ℃
3.3
、
Electrical Characteristics 3.3.1
、
DC Characteristics 1
(Tamb=-40℃ to +85℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.)
Parameter Symbol VDD Conditions Min. Typ. Max. Unit
5V - 2.05 3.0 3.85 V HIGH-level V 10V - 4.8 6.4 7.7 V input voltage IH 15V - 7.8 9.9 11.7 V 5V - 1.25 2.3 2.85 V LOW-level V 10V - 2.4 3.8 5.10 V input voltage IL 15V - 3.4 5.2 7.10 V 5V - 0.1 0.65 1.4 V Hysteresis V 10V - 1.8 2.6 3.6 V voltage H 15V - 3.7 4.7 5.7 V 5V |IO|<1uA 4.95 - - V HIGH-level V 10V |I output voltage OH O|<1uA 9.95 - - V 15V |IO|<1uA 14.95 - - V 5V |IO|<1uA - - 0.05 V LOW-level V 10V |I output voltage OL O|<1uA - - 0.05 V 15V |IO|<1uA - - 0.05 V 5V VO=4.6V - - -0.34 mA Lingxingic HIGH-level 5V VO=2.5V - - -1.3 mA I output current OH 10V VO=9.5V - - -0.55 mA 15V VO=13.5V - - -1.65 mA 5V VO=0.4V 0.34 - - mA LOW-level I 10V V output current OL O=0.5V 0.46 - - mA 15V VO=1.5V 1.4 - - mA input leakage I current I 15V VI=15V or GND - - ±2 uA 5/ 12 htttp://www.lingxingic.com VER：2023-04-A1
