Datasheet CMZ5921B - CMZ5956B (Central Semiconductor)
| 制造商 | Central Semiconductor |
| 描述 | 75V Surface mount Diode-Zener Single in SMA package |
| 页数 / 页 | 2 / 1 — CMZ5921B. THRU. CMZ5956B. SURFACE MOUNT. SILICON ZENER DIODE. 1.5 WATT, … |
| 文件格式/大小 | PDF / 161 Kb |
| 文件语言 | 英语 |

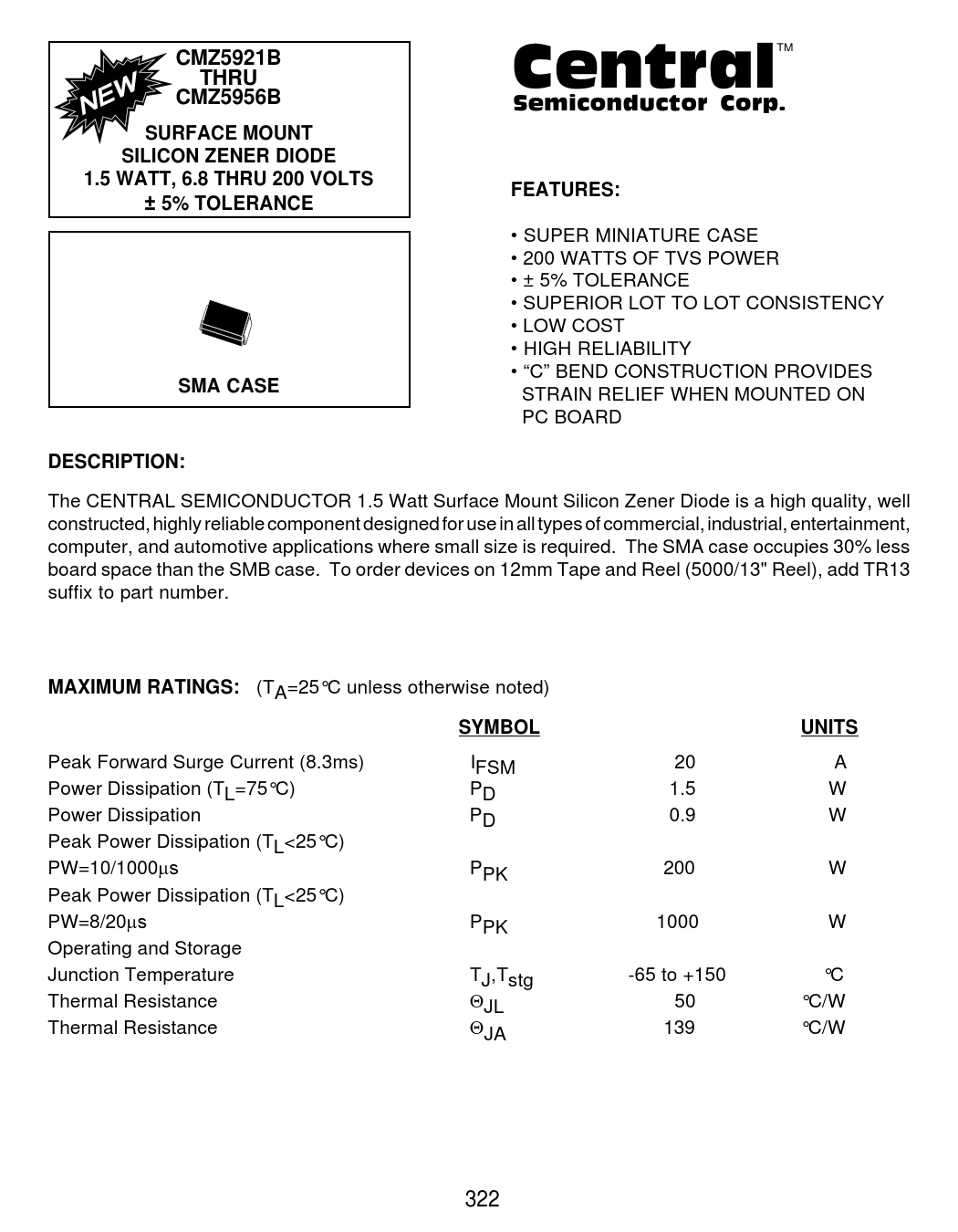

CMZ5921B. THRU. CMZ5956B. SURFACE MOUNT. SILICON ZENER DIODE. 1.5 WATT, 6.8 THRU 200 VOLTS. FEATURES:. ± 5% TOLERANCE. SMA CASE
该数据表的模型线
文件文字版本
CMZ5921B THRU CMZ5956B
CentralTM NEW Semiconductor Corp.
SURFACE MOUNT SILICON ZENER DIODE 1.5 WATT, 6.8 THRU 200 VOLTS FEATURES: ± 5% TOLERANCE
• SUPER MINIATURE CASE • 200 WATTS OF TVS POWER • ± 5% TOLERANCE • SUPERIOR LOT TO LOT CONSISTENCY • LOW COST • HIGH RELIABILITY • “C” BEND CONSTRUCTION PROVIDES
SMA CASE
STRAIN RELIEF WHEN MOUNTED ON PC BOARD
DESCRIPTION:
The CENTRAL SEMICONDUCTOR 1.5 Watt Surface Mount Silicon Zener Diode is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications where small size is required. The SMA case occupies 30% less board space than the SMB case. To order devices on 12mm Tape and Reel (5000/13" Reel), add TR13 suffix to part number.
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
SYMBOL UNITS
Peak Forward Surge Current (8.3ms) IFSM 20 A Power Dissipation (TL=75°C) PD 1.5 W Power Dissipation PD 0.9 W Peak Power Dissipation (TL<25°C) PW=10/1000ms PPK 200 W Peak Power Dissipation (TL<25°C) PW=8/20ms PPK 1000 W Operating and Storage Junction Temperature TJ,Tstg -65 to +150 °C Thermal Resistance QJL 50 °C/W Thermal Resistance QJA 139 °C/W 322
CentralTM NEW Semiconductor Corp.
SURFACE MOUNT SILICON ZENER DIODE 1.5 WATT, 6.8 THRU 200 VOLTS FEATURES: ± 5% TOLERANCE
• SUPER MINIATURE CASE • 200 WATTS OF TVS POWER • ± 5% TOLERANCE • SUPERIOR LOT TO LOT CONSISTENCY • LOW COST • HIGH RELIABILITY • “C” BEND CONSTRUCTION PROVIDES
SMA CASE
STRAIN RELIEF WHEN MOUNTED ON PC BOARD
DESCRIPTION:
The CENTRAL SEMICONDUCTOR 1.5 Watt Surface Mount Silicon Zener Diode is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications where small size is required. The SMA case occupies 30% less board space than the SMB case. To order devices on 12mm Tape and Reel (5000/13" Reel), add TR13 suffix to part number.
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
SYMBOL UNITS
Peak Forward Surge Current (8.3ms) IFSM 20 A Power Dissipation (TL=75°C) PD 1.5 W Power Dissipation PD 0.9 W Peak Power Dissipation (TL<25°C) PW=10/1000ms PPK 200 W Peak Power Dissipation (TL<25°C) PW=8/20ms PPK 1000 W Operating and Storage Junction Temperature TJ,Tstg -65 to +150 °C Thermal Resistance QJL 50 °C/W Thermal Resistance QJA 139 °C/W 322
