Datasheet HWZT-RS (Abracon) - 2
| 制造商 | Abracon |
| 描述 | Ceramic resonator 12 MHz t/h |
| 页数 / 页 | 3 / 2 — LOW PROFILE LEADED CERAMIC RESONATOR. HWZT-RS. RoHS/RoHS II Compliant. … |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |
LOW PROFILE LEADED CERAMIC RESONATOR. HWZT-RS. RoHS/RoHS II Compliant. FEATURES:. APPLICATIONS:. STANDARD SPECIFICATIONS:
该数据表的模型线
文件文字版本

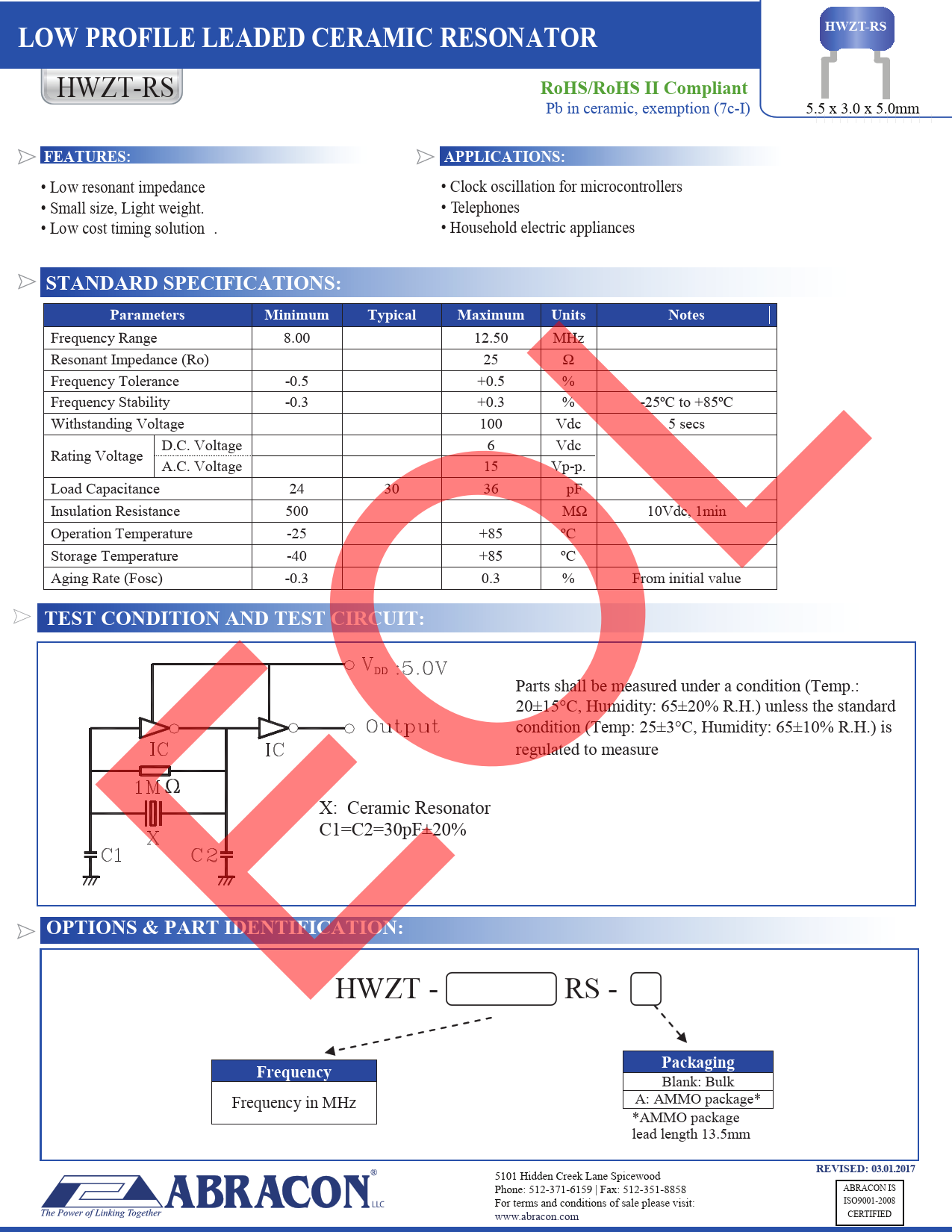

LOW PROFILE LEADED CERAMIC RESONATOR HWZT-RS
HWZT-RS
RoHS/RoHS II Compliant
Pb in ceramic, exemption (7c-I) 5.5 x 3.0 x 5.0mm | | | | | | | | | | | | | | |
FEATURES: APPLICATIONS:
• Low resonant impedance • Clock oscillation for microcontrollers • Small size, Light weight. • Telephones • Low cost timing solution . • Household electric appliances
STANDARD SPECIFICATIONS: Parameters Minimum Typical Maximum Units Notes
Frequency Range 8.00 12.50 MHz Resonant Impedance (Ro) 25 Ω Frequency Tolerance -0.5 +0.5 % Frequency Stability -0.3 +0.3 % -25ºC to +85ºC Withstanding Voltage 100 Vdc 5 secs D.C. Voltage 6 Vdc Rating Voltage A.C. Voltage 15 Vp-p. Load Capacitance 24 30 36 pF Insulation Resistance 500 MΩ 10Vdc, 1min Operation Temperature -25 +85 ºC Storage Temperature -40 +85 ºC Aging Rate (Fosc) -0.3 0.3 % From initial value
TEST CONDITION AND TEST CIRCUIT:
Parts shall be measured under a condition (Temp.: 20±15°C, Humidity: 65±20% R.H.) unless the standard condition (Temp: 25±3°C, Humidity: 65±10% R.H.) is regulated to measure X: Ceramic Resonator C1=C2=30pF±20% EOL
OPTIONS & PART IDENTIFICATION:
HWZT - RS -
Frequency Packaging
Blank: Bulk Frequency in MHz A: AMMO package* *AMMO package lead length 13.5mm
REVISED: 03.01.2017
5101 Hidden Creek Lane Spicewood Phone: 512-371-6159 | Fax: 512-351-8858 ABRACON IS
LLC
For terms and conditions of sale please visit: ISO9001-2008 www.abracon.com CERTIFIED Document Outline EOL-ECN #3521 HWZT-RS.pdf HWZT_RS.pdf
HWZT-RS
RoHS/RoHS II Compliant
Pb in ceramic, exemption (7c-I) 5.5 x 3.0 x 5.0mm | | | | | | | | | | | | | | |
FEATURES: APPLICATIONS:
• Low resonant impedance • Clock oscillation for microcontrollers • Small size, Light weight. • Telephones • Low cost timing solution . • Household electric appliances
STANDARD SPECIFICATIONS: Parameters Minimum Typical Maximum Units Notes
Frequency Range 8.00 12.50 MHz Resonant Impedance (Ro) 25 Ω Frequency Tolerance -0.5 +0.5 % Frequency Stability -0.3 +0.3 % -25ºC to +85ºC Withstanding Voltage 100 Vdc 5 secs D.C. Voltage 6 Vdc Rating Voltage A.C. Voltage 15 Vp-p. Load Capacitance 24 30 36 pF Insulation Resistance 500 MΩ 10Vdc, 1min Operation Temperature -25 +85 ºC Storage Temperature -40 +85 ºC Aging Rate (Fosc) -0.3 0.3 % From initial value
TEST CONDITION AND TEST CIRCUIT:
Parts shall be measured under a condition (Temp.: 20±15°C, Humidity: 65±20% R.H.) unless the standard condition (Temp: 25±3°C, Humidity: 65±10% R.H.) is regulated to measure X: Ceramic Resonator C1=C2=30pF±20% EOL
OPTIONS & PART IDENTIFICATION:
HWZT - RS -
Frequency Packaging
Blank: Bulk Frequency in MHz A: AMMO package* *AMMO package lead length 13.5mm
REVISED: 03.01.2017
5101 Hidden Creek Lane Spicewood Phone: 512-371-6159 | Fax: 512-351-8858 ABRACON IS
LLC
For terms and conditions of sale please visit: ISO9001-2008 www.abracon.com CERTIFIED Document Outline EOL-ECN #3521 HWZT-RS.pdf HWZT_RS.pdf
