Datasheet RTDW (Bourns) - 2
| 制造商 | Bourns |
| 描述 | Riedon Precision Wirewound Temperature Sensors |
| 页数 / 页 | 3 / 2 — RTDW Series – Riedon™ Precision Wirewound Temperature Sensors by Bourns. … |
| 文件格式/大小 | PDF / 645 Kb |
| 文件语言 | 英语 |
RTDW Series – Riedon™ Precision Wirewound Temperature Sensors by Bourns. How To Order. Packaging Specifications
该数据表的模型线
- RTDW1B-100RF8 RTDW1B-1KF8 RTDW1B-500RF8 RTDW1N-100RF8 RTDW1N-1KF8 RTDW1N-500RF8 RTDW1R-100RF8 RTDW1R-1KF8 RTDW1R-500RF8 RTDW2B-100RF8 RTDW2B-1KF8 RTDW2B-500RF8 RTDW2N-100RF8 RTDW2N-1KF8 RTDW2N-500RF8 RTDW2R-100RF8 RTDW2R-1KF8 RTDW2R-500RF8 RTDW3B-100RF8 RTDW3B-1KF8 RTDW3B-500RF8 RTDW3N-100RF8 RTDW3N-1KF8 RTDW3N-500RF8 RTDW3R-100RF8 RTDW3R-1KF8 RTDW3R-500RF8
文件文字版本
filename ../../../../../../../Users/yummyimac/Library/Caches/Adobe InDesign/Version 18.0/en_US/InDesign ClipboardScrap1.pdf

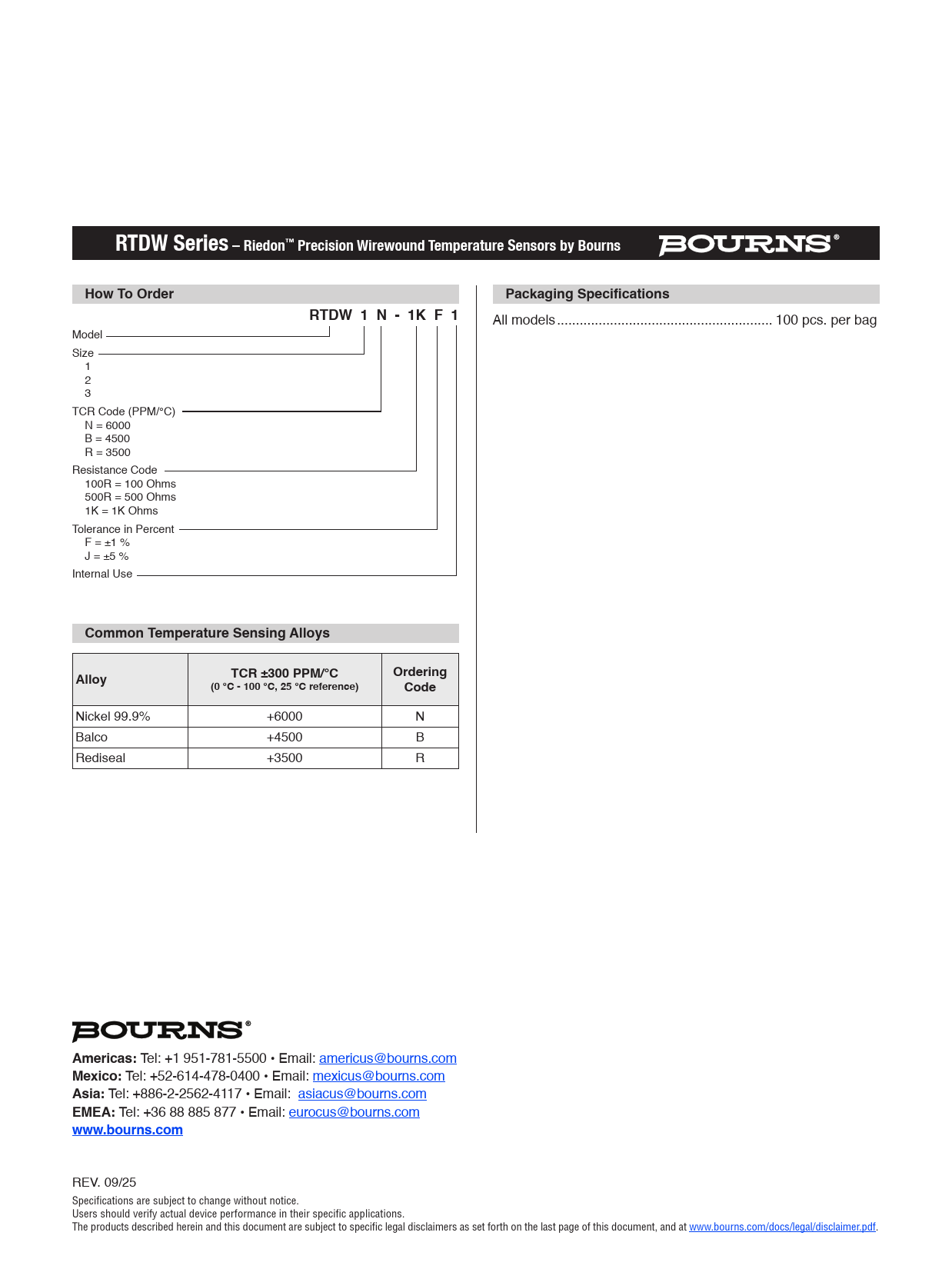

RTDW Series – Riedon™ Precision Wirewound Temperature Sensors by Bourns How To Order Packaging Specifications RTDW 1 N - 1K F 1
All models ... 100 pcs. per bag Model Size 1 2 3 TCR Code (PPM/°C) N = 6000 B = 4500 R = 3500 Resistance Code 100R = 100 Ohms 500R = 500 Ohms 1K = 1K Ohms Tolerance in Percent F = ±1 % J = ±5 % Internal Use
Common Temperature Sensing Alloys Alloy TCR ±300 PPM/°C Ordering (0 °C - 100 °C, 25 °C reference) Code
Nickel 99.9% +6000 N Balco +4500 B Rediseal +3500 R
Americas:
Tel: +1 951-781-5500 • Email: americus@bourns.com
Mexico:
Tel: +52-614-478-0400 • Email: mexicus@bourns.com
Asia:
Tel: +886-2-2562-4117 • Email: asiacus@bourns.com
EMEA:
Tel: +36 88 885 877 • Email: eurocus@bourns.com
www.bourns.com
REV. 09/25 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
RTDW Series – Riedon™ Precision Wirewound Temperature Sensors by Bourns How To Order Packaging Specifications RTDW 1 N - 1K F 1
All models ... 100 pcs. per bag Model Size 1 2 3 TCR Code (PPM/°C) N = 6000 B = 4500 R = 3500 Resistance Code 100R = 100 Ohms 500R = 500 Ohms 1K = 1K Ohms Tolerance in Percent F = ±1 % J = ±5 % Internal Use
Common Temperature Sensing Alloys Alloy TCR ±300 PPM/°C Ordering (0 °C - 100 °C, 25 °C reference) Code
Nickel 99.9% +6000 N Balco +4500 B Rediseal +3500 R
