Datasheet DFLS230L (Diodes) - 4
| 制造商 | Diodes |
| 描述 | Schottky |
| 页数 / 页 | 5 / 4 — DFLS230L. Package Outline Dimensions. PowerDI123. Dim. Min. Max. Typ. All … |
| 文件格式/大小 | PDF / 372 Kb |
| 文件语言 | 英语 |
DFLS230L. Package Outline Dimensions. PowerDI123. Dim. Min. Max. Typ. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions. (in mm)
该数据表的模型线
文件文字版本

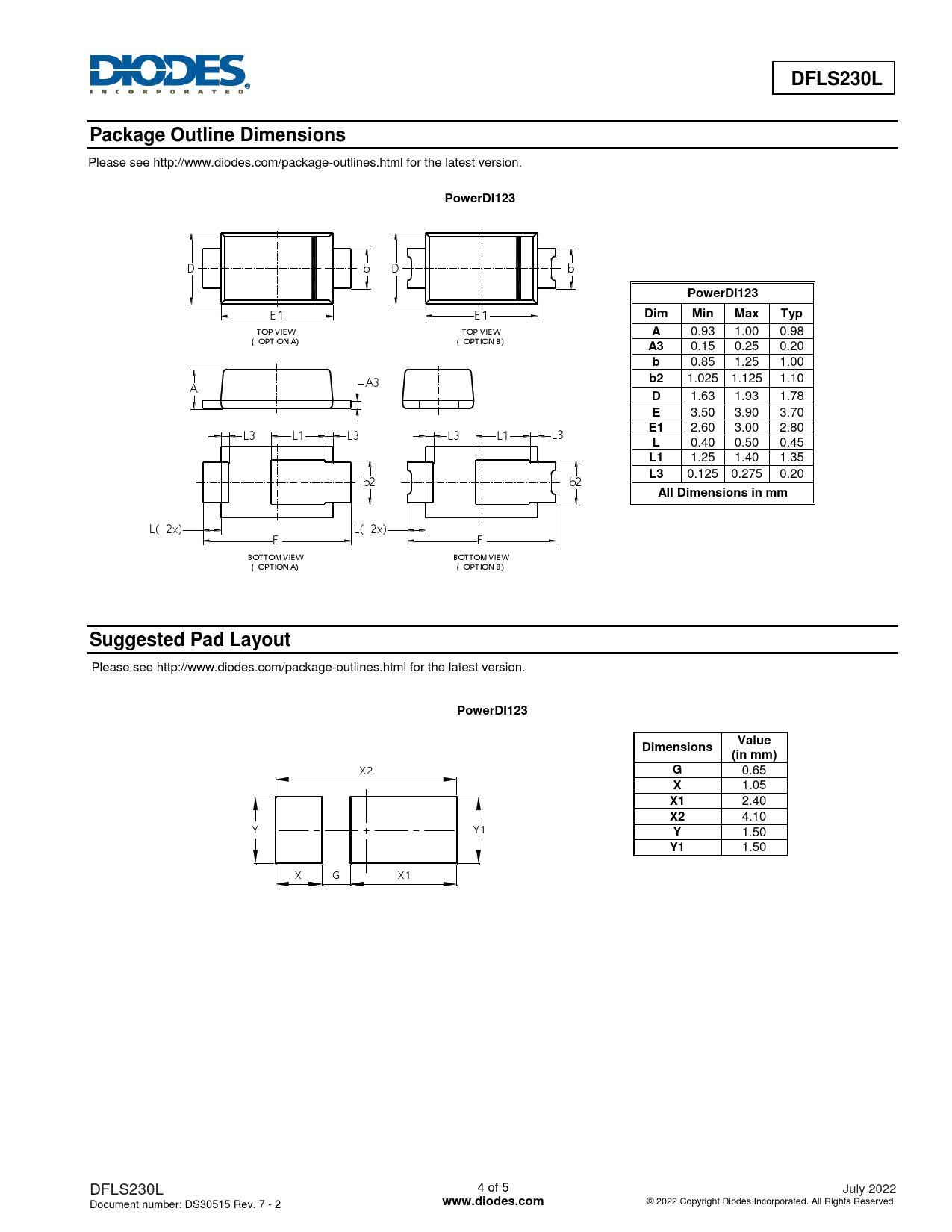

DFLS230L Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
D b D b
PowerDI123
E 1 E 1
Dim Min Max Typ
TOP VIE W TOP VIE W
A
0.93 1.00 0.98 ( OPTION A) ( OPTION B)
A3
0.15 0.25 0.20
b
0.85 1.25 1.00
b2
1.025 1.125 1.10 A A3
D
1.63 1.93 1.78
E
3.50 3.90 3.70 L3 L1 L3 L3 L1 L3
E1
2.60 3.00 2.80
L
0.40 0.50 0.45
L1
1.25 1.40 1.35 b2 b2
L3
0.125 0.275 0.20
All Dimensions in mm
L( 2x) L( 2x) E E BOTTOM VIE W BOTTOM VIE W ( OPTION A) ( OPTION B)
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123 Value Dimensions (in mm)
X2
G
0.65
X
1.05
X1
2.40
X2
4.10 Y Y1
Y
1.50
Y1
1.50 X G X1 DFLS230L 4 of 5 July 2022 Document number: DS30515 Rev. 7 - 2
www.diodes.com
© 2022 Copyright Diodes Incorporated. All Rights Reserved.
