Datasheet DMMT3904WQ (Diodes) - 2
| 制造商 | Diodes |
| 描述 | Dual NPN, 40V, 0.2A, SOT363 |
| 页数 / 页 | 6 / 2 — DMMT3904WQ. Absolute Maximum Ratings. Characteristic. Symbol. Value. … |
| 文件格式/大小 | PDF / 466 Kb |
| 文件语言 | 英语 |
DMMT3904WQ. Absolute Maximum Ratings. Characteristic. Symbol. Value. Unit. Thermal Characteristics – Total Device. ESD Ratings
该数据表的模型线
文件文字版本

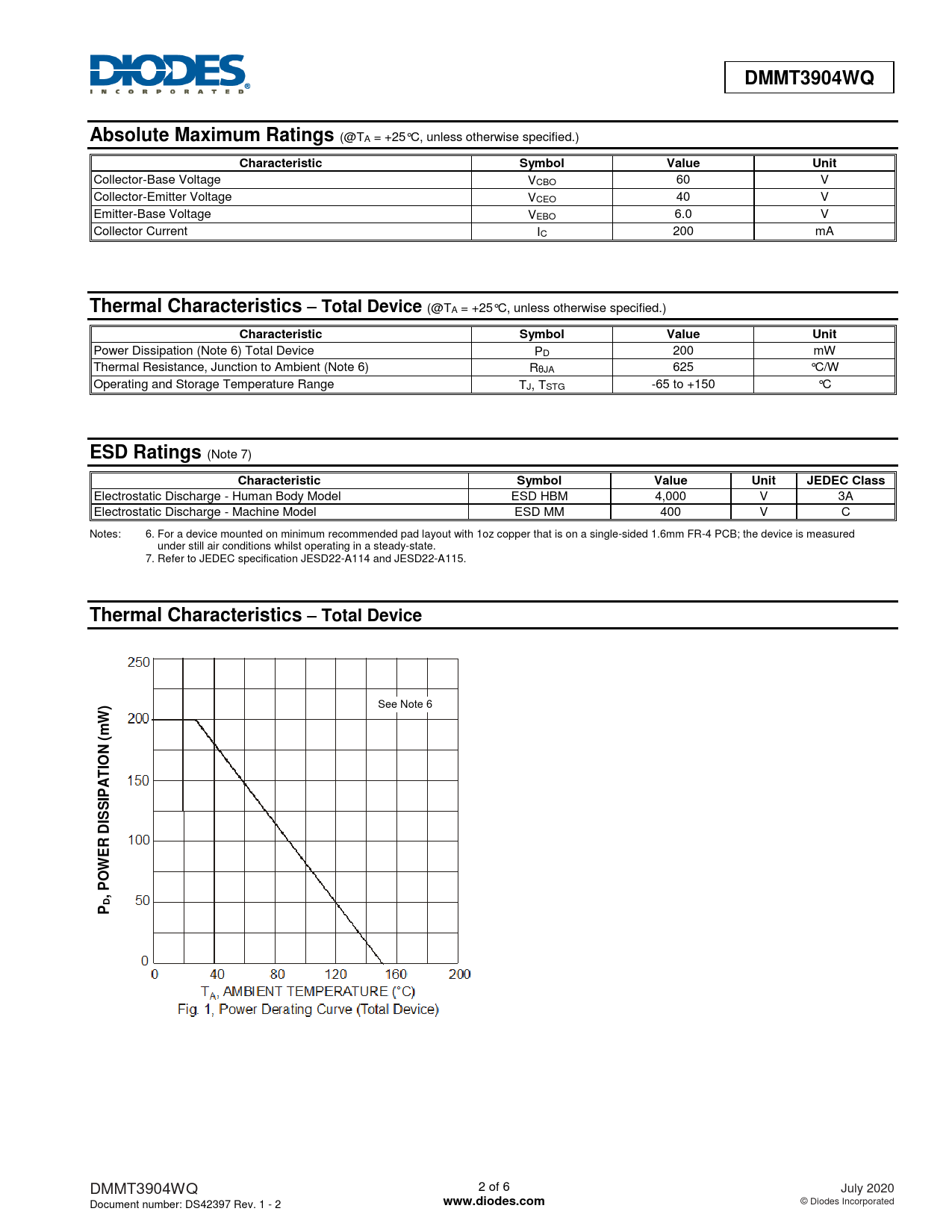

DMMT3904WQ Absolute Maximum Ratings
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Collector-Base Voltage VCBO 60 V Collector-Emitter Voltage VCEO 40 V Emitter-Base Voltage VEBO 6.0 V Collector Current IC 200 mA
Thermal Characteristics – Total Device
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Power Dissipation (Note 6) Total Device PD 200 mW Thermal Resistance, Junction to Ambient (Note 6) RθJA 625 °C/W Operating and Storage Temperature Range TJ, TSTG -65 to +150 °C
ESD Ratings
(Note 7)
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge - Human Body Model ESD HBM 4,000 V 3A Electrostatic Discharge - Machine Model ESD MM 400 V C Notes: 6. For a device mounted on minimum recommended pad layout with 1oz copper that is on a single-sided 1.6mm FR-4 PCB; the device is measured under still air conditions whilst operating in a steady-state. 7. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
Thermal Characteristics – Total Device
See Note 6
W) (m PATION WER DISSI PO , D P
DMMT3904WQ 2 of 6 July 2020 Document number: DS42397 Rev. 1 - 2
www.diodes.com
© Diodes Incorporated
