Datasheet DMMT3904W (Diodes) - 5
| 制造商 | Diodes |
| 描述 | Dual NPN, 40V, 0.2A, SOT363 |
| 页数 / 页 | 6 / 5 — DMMT3904W. Package Outline Dimensions. SOT363. Dim Min Max. Typ. All … |
| 文件格式/大小 | PDF / 619 Kb |
| 文件语言 | 英语 |
DMMT3904W. Package Outline Dimensions. SOT363. Dim Min Max. Typ. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions. (in mm)
该数据表的模型线
文件文字版本

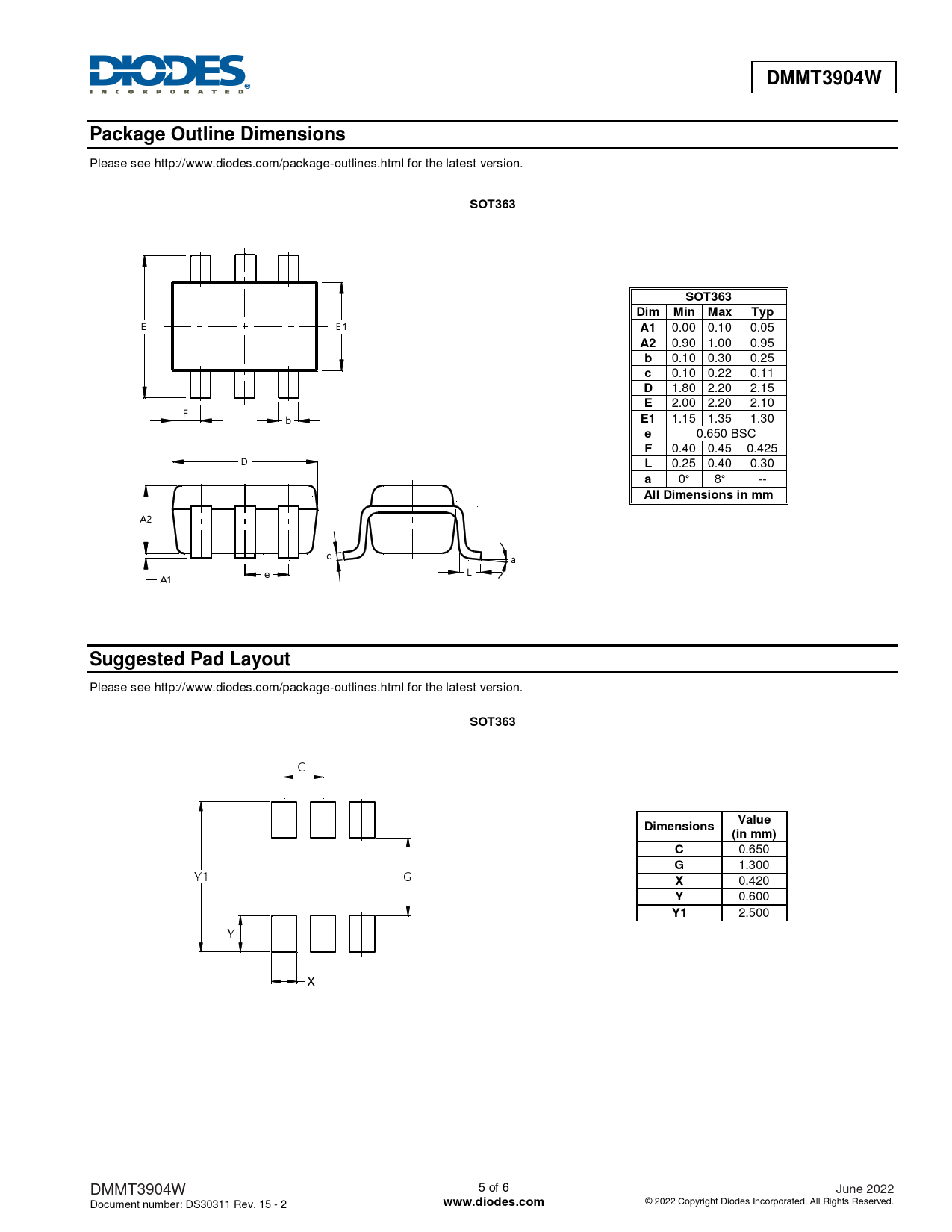

DMMT3904W Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363 SOT363 Dim Min Max Typ
E E 1
A1
0.00 0.10 0.05
A2
0.90 1.00 0.95
b
0.10 0.30 0.25
c
0.10 0.22 0.11
D
1.80 2.20 2.15
E
2.00 2.20 2.10 F b
E1
1.15 1.35 1.30
e
0.650 BSC
F
0.40 0.45 0.425 D
L
0.25 0.40 0.30
a
0° 8° --
All Dimensions in mm
A2 c a e L A1
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363
C
Value Dimensions (in mm) C
0.650
G
1.300 Y1 G
X
0.420
Y
0.600
Y1
2.500 Y X DMMT3904W 5 of 6 June 2022 Document number: DS30311 Rev. 15 - 2
www.diodes.com
© 2022 Copyright Diodes Incorporated. All Rights Reserved.
