Datasheet SK3 (First Silicon) - 3
| 制造商 | First Silicon |
| 描述 | Voltage 20V ~ 100V , 3.0 Amper Surface Mount Schottky Barrier Rectifiers |
| 页数 / 页 | 3 / 3 — SK32A ~ SK310A. Package Dimensions in inches and (millmeters) |
| 文件格式/大小 | PDF / 261 Kb |
| 文件语言 | 英语 |
SK32A ~ SK310A. Package Dimensions in inches and (millmeters)
该数据表的模型线
文件文字版本

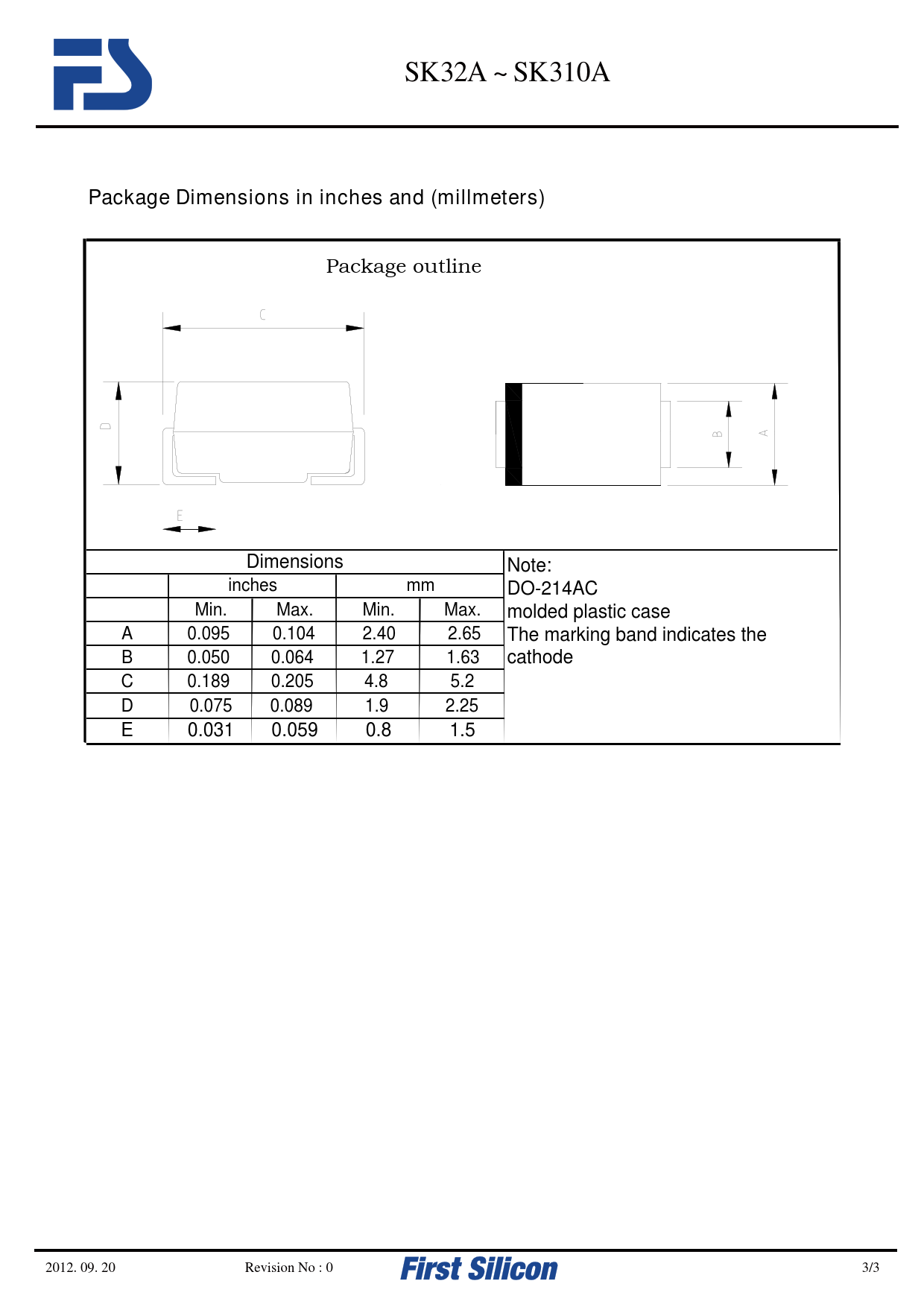

SK32A ~ SK310A Package Dimensions in inches and (millmeters)
Package outline Dimensions Note: inches mm DO-214AC Min. Max. Min. Max. molded plastic case A 0.095 0.104 2.40 2.65 The marking band indicates the B 0.050 0.064 1.27 1.63 cathode C 0.189 0.205 4.8 5.2 D 0.075 0.089 1.9 2.25 E 0.031 0.059 0.8 1.5 2012. 09. 20 Revision No : 0 3/3
