Datasheet MAX40108 (Analog Devices) - 10
| 制造商 | Analog Devices |
| 描述 | 1V, Low-Power, Precision Operational Amplifier |
| 页数 / 页 | 13 / 10 — Pin Description (continued). PIN. NAME. FUNCTION. WLP. TDFN |
| 文件格式/大小 | PDF / 587 Kb |
| 文件语言 | 英语 |

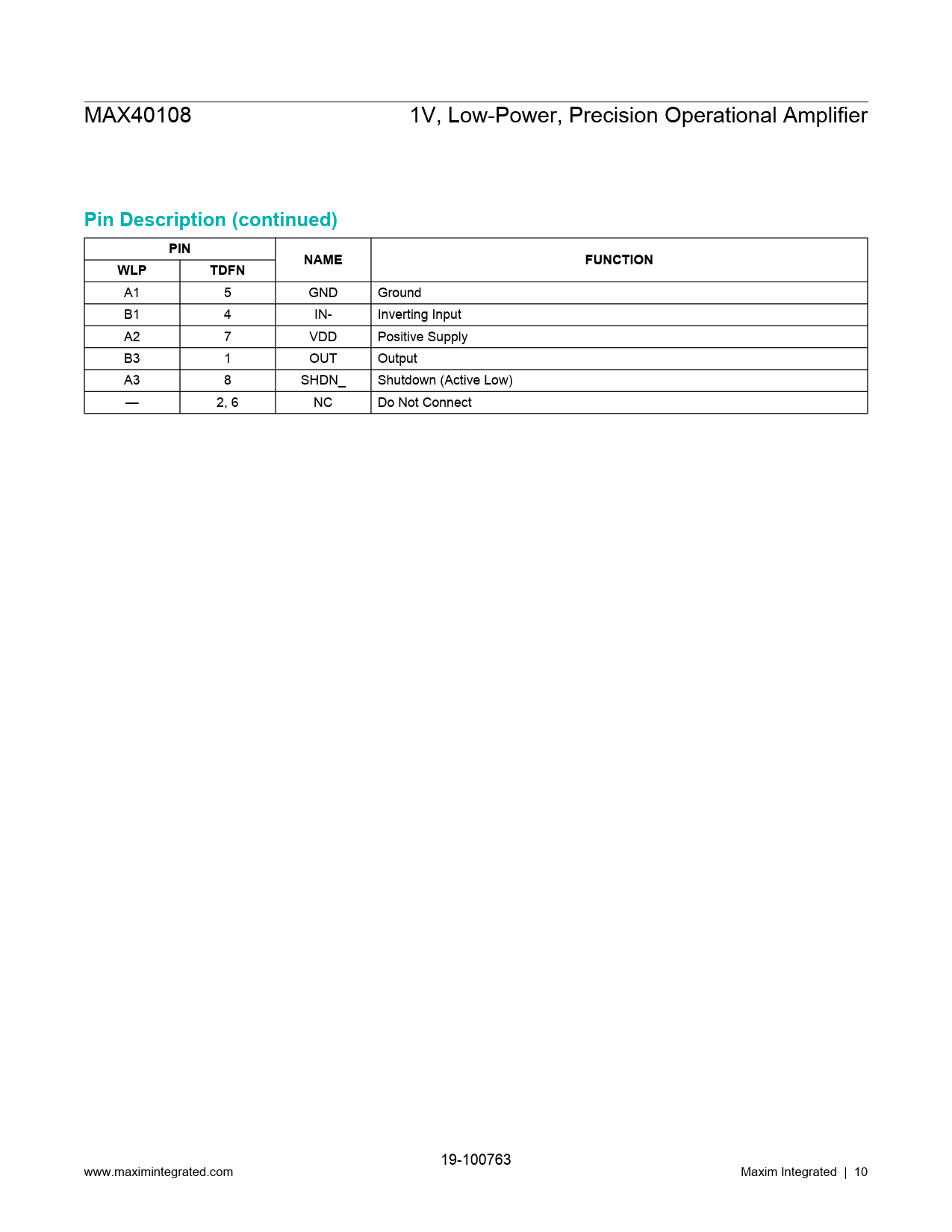

Pin Description (continued). PIN. NAME. FUNCTION. WLP. TDFN
该数据表的模型线
文件文字版本
MAX40108 1V, Low-Power, Precision Operational Amplifier
Pin Description (continued) PIN NAME FUNCTION WLP TDFN
A1 5 GND Ground B1 4 IN- Inverting Input A2 7 VDD Positive Supply B3 1 OUT Output A3 8 SHDN_ Shutdown (Active Low) — 2, 6 NC Do Not Connect 19-100763 www.maximintegrated.com Maxim Integrated | 10 Document Outline General Description Applications Benefits and Features Typical Application Circuit Absolute Maximum Ratings Package Information WLP TDFN Electrical Characteristics Electrical Characteristics (continued) Typical Operating Characteristics Typical Operating Characteristics (continued) Pin Configurations WLP TDFN Pin Description Pin Description (continued) Detailed Description Auto-Zero Shutdown Operation Applications Information Overview Power-Up Settling Time Capacitive-Load Stability Power Supplies and Layout Ordering Information Revision History
Pin Description (continued) PIN NAME FUNCTION WLP TDFN
A1 5 GND Ground B1 4 IN- Inverting Input A2 7 VDD Positive Supply B3 1 OUT Output A3 8 SHDN_ Shutdown (Active Low) — 2, 6 NC Do Not Connect 19-100763 www.maximintegrated.com Maxim Integrated | 10 Document Outline General Description Applications Benefits and Features Typical Application Circuit Absolute Maximum Ratings Package Information WLP TDFN Electrical Characteristics Electrical Characteristics (continued) Typical Operating Characteristics Typical Operating Characteristics (continued) Pin Configurations WLP TDFN Pin Description Pin Description (continued) Detailed Description Auto-Zero Shutdown Operation Applications Information Overview Power-Up Settling Time Capacitive-Load Stability Power Supplies and Layout Ordering Information Revision History
