Golledge Electronics Ltd. SAW Resonator 433.920 MHz. Model: TC0219A. Part No: MA05774. Rev No: 5. A. FEATURES:. B. MAXIMUM RATING:
该数据表的模型线
文件文字版本
Tel: +44 1460 256 100
Golledge Electronics Ltd
Fax: +44 1460 256 101 Eaglewood Park, ILMINSTER www.golledge.com Somerset, TA19 9DQ, UK

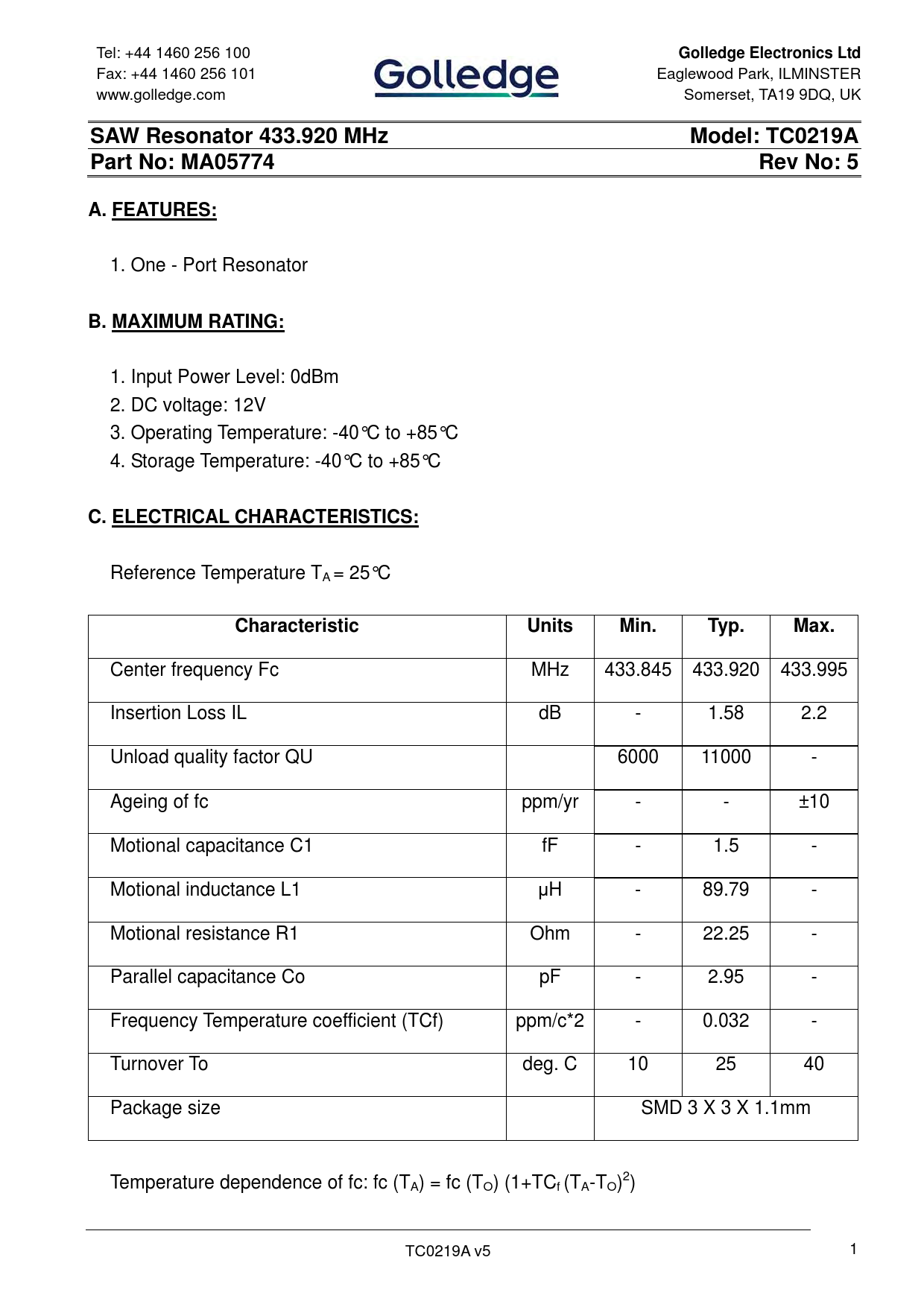

SAW Resonator 433.920 MHz Model: TC0219A Part No: MA05774 Rev No: 5 A. FEATURES:
1. One - Port Resonator
B. MAXIMUM RATING:
1. Input Power Level: 0dBm 2. DC voltage: 12V 3. Operating Temperature: -40°C to +85°C 4. Storage Temperature: -40°C to +85°C
C. ELECTRICAL CHARACTERISTICS:
Reference Temperature TA = 25°C
Characteristic Units Min. Typ. Max.
Center frequency Fc MHz 433.845 433.920 433.995 Insertion Loss IL dB - 1.58 2.2 Unload quality factor QU 6000 11000 - Ageing of fc ppm/yr - - ±10 Motional capacitance C1 fF - 1.5 - Motional inductance L1 μH - 89.79 - Motional resistance R1 Ohm - 22.25 - Parallel capacitance Co pF - 2.95 - Frequency Temperature coefficient (TCf) ppm/c*2 - 0.032 - Turnover To deg. C 10 25 40 Package size SMD 3 X 3 X 1.1mm Temperature dependence of fc: fc (TA) = fc (TO) (1+TCf (TA-TO)2) TC0219A v5 1
Golledge Electronics Ltd
Fax: +44 1460 256 101 Eaglewood Park, ILMINSTER www.golledge.com Somerset, TA19 9DQ, UK
SAW Resonator 433.920 MHz Model: TC0219A Part No: MA05774 Rev No: 5 A. FEATURES:
1. One - Port Resonator
B. MAXIMUM RATING:
1. Input Power Level: 0dBm 2. DC voltage: 12V 3. Operating Temperature: -40°C to +85°C 4. Storage Temperature: -40°C to +85°C
C. ELECTRICAL CHARACTERISTICS:
Reference Temperature TA = 25°C
Characteristic Units Min. Typ. Max.
Center frequency Fc MHz 433.845 433.920 433.995 Insertion Loss IL dB - 1.58 2.2 Unload quality factor QU 6000 11000 - Ageing of fc ppm/yr - - ±10 Motional capacitance C1 fF - 1.5 - Motional inductance L1 μH - 89.79 - Motional resistance R1 Ohm - 22.25 - Parallel capacitance Co pF - 2.95 - Frequency Temperature coefficient (TCf) ppm/c*2 - 0.032 - Turnover To deg. C 10 25 40 Package size SMD 3 X 3 X 1.1mm Temperature dependence of fc: fc (TA) = fc (TO) (1+TCf (TA-TO)2) TC0219A v5 1
