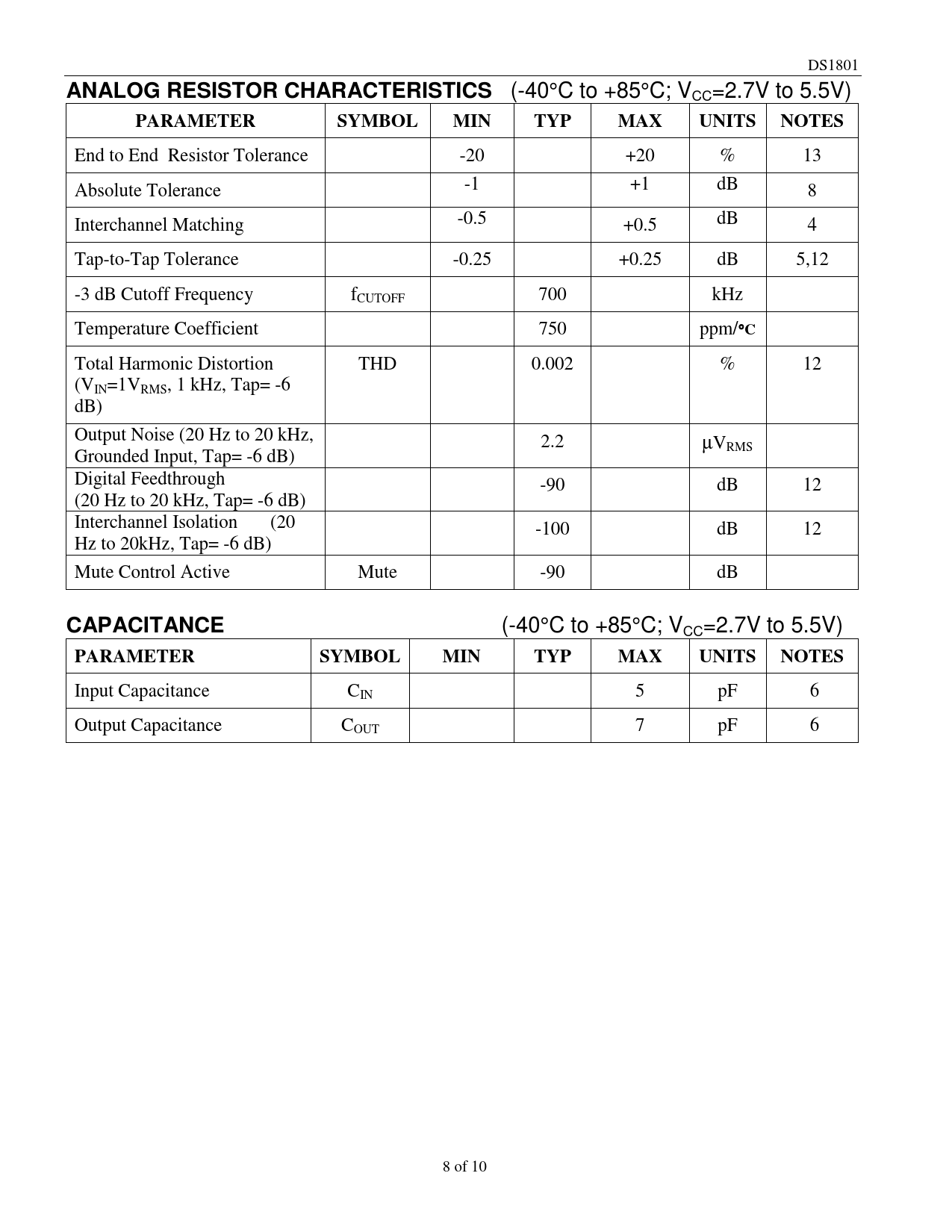

DS1801
ANALOG RESISTOR CHARACTERISTICS
(-40°C to +85°C; VCC=2.7V to 5.5V)
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
End to End Resistor Tolerance -20 +20 % 13 Absolute Tolerance -1 +1 dB 8 Interchannel Matching -0.5 +0.5 dB 4 Tap-to-Tap Tolerance -0.25 +0.25 dB 5,12 -3 dB Cutoff Frequency fCUTOFF 700 kHz Temperature Coefficient 750 ppm/°
C
Total Harmonic Distortion THD 0.002 % 12 (VIN=1VRMS, 1 kHz, Tap= -6 dB) Output Noise (20 Hz to 20 kHz, 2.2 µVRMS Grounded Input, Tap= -6 dB) Digital Feedthrough -90 dB 12 (20 Hz to 20 kHz, Tap= -6 dB) Interchannel Isolation (20 -100 dB 12 Hz to 20kHz, Tap= -6 dB) Mute Control Active Mute -90 dB
CAPACITANCE
(-40°C to +85°C; VCC=2.7V to 5.5V)
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
Input Capacitance CIN 5 pF 6 Output Capacitance COUT 7 pF 6 8 of 10
