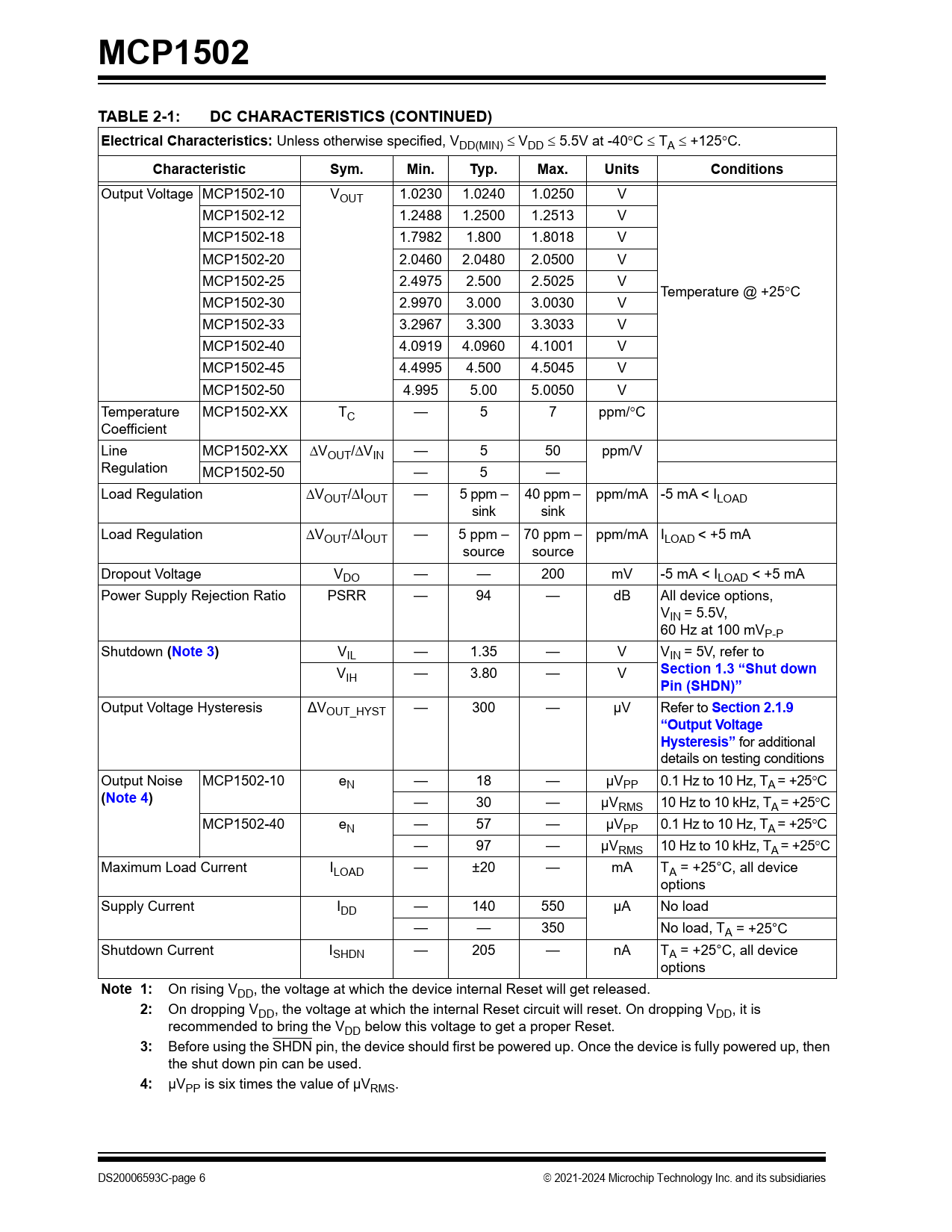

MCP1502 TABLE 2-1: DC CHARACTERISTICS (CONTINUED) Electrical Characteristics:
Unless otherwise specified, VDD(MIN) VDD  5.5V at -40C  TA  +125C.
Characteristic Sym. Min. Typ. Max. Units Conditions
Output Voltage MCP1502-10 VOUT 1.0230 1.0240 1.0250 V MCP1502-12 1.2488 1.2500 1.2513 V MCP1502-18 1.7982 1.800 1.8018 V MCP1502-20 2.0460 2.0480 2.0500 V MCP1502-25 2.4975 2.500 2.5025 V Temperature @ +25C MCP1502-30 2.9970 3.000 3.0030 V MCP1502-33 3.2967 3.300 3.3033 V MCP1502-40 4.0919 4.0960 4.1001 V MCP1502-45 4.4995 4.500 4.5045 V MCP1502-50 4.995 5.00 5.0050 V Temperature MCP1502-XX TC — 5 7 ppm/C Coefficient Line MCP1502-XX VOUT/VIN — 5 50 ppm/V Regulation MCP1502-50 — 5 — Load Regulation VOUT/IOUT — 5 ppm – 40 ppm – ppm/mA -5 mA < ILOAD sink sink Load Regulation VOUT/IOUT — 5 p pm – 70 ppm – ppm/mA ILOAD < +5 mA source source Dropout Voltage VDO — — 200 mV -5 mA < ILOAD < +5 mA Power Supply Rejection Ratio PSRR — 94 — dB All device options, VIN = 5.5V, 60 Hz at 100 mVP-P Shutdown
(Note 3)
VIL — 1.35 — V VIN = 5V, refer to
Section 1.3 “Shut down
VIH — 3.80 — V
Pin (SHDN)”
Output Voltage Hysteresis ΔVOUT_HYST — 300 — µV Refer to
Section 2.1.9 “Output Voltage Hysteresis”
for additional details on testing conditions Output Noise MCP1502-10 eN — 18 — µVPP 0.1 Hz to 10 Hz, TA = +25C
(Note 4 )
— 30 — µVRMS 10 Hz to 10 kHz, TA = +25C MCP1502-40 eN — 57 — µVPP 0.1 Hz to 10 Hz, TA = +25C — 97 — µVRMS 10 Hz to 10 kHz, TA = +25C Maximum Load Current ILOAD — ±20 — mA TA = +25°C, all device options Supply Current IDD — 140 550 µA No load — — 350 No load, TA = +25°C Shutdown Current ISHDN — 205 — nA TA = +25°C, all device options
Note 1:
On rising VDD, the voltage at which the device internal Reset will get released.
2:
On dropping VDD, the voltage at which the internal Reset circuit will reset. On dropping VDD, it is recommended to bring the VDD below this voltage to get a proper Reset.
3:
Before using the SHDN pin, the device should first be powered up. Once the device is fully powered up, then the shut down pin can be used.
4:
µVPP is six times the value of µVRMS. DS20006593C-page 6  2021-2024 Microchip Technology Inc. and its subsidiaries Document Outline MCP1501 Data Sheet - High-Precision Buffered Voltage Reference Features Applications Related Parts General Description Package Types Block Diagram 1.0 Pin Function Table TABLE 1-1: Pin Function Table 1.1 Buffered VREF Output (OUT) 1.2 System Ground (GND) 1.3 Shut down Pin (SHDN) 1.4 Power Supply Input (VDD) 2.0 Electrical Characteristics Absolute Maximum Ratings(†) TABLE 2-1: DC Characteristics (Continued) TABLE 2-2: Temperature Specifications 2.1 Terminology 2.1.1 Output Voltage (VOUT) 2.1.2 Input Voltage (VIN) 2.1.3 Temperature Coefficient (Tc) EQUATION 2-1: TC Calculation 2.1.4 Dropout Voltage (VDO) 2.1.5 Line Regulation EQUATION 2-2: EQUATION 2-3: EQUATION 2-4: EQUATION 2-5: EQUATION 2-6: 2.1.6 Load Regulation EQUATION 2-7: EQUATION 2-8: EQUATION 2-9: EQUATION 2-10: EQUATION 2-11: 2.1.7 Power Supply Rejection Ratio (PSRR) 2.1.8 Long-Term Drift 2.1.9 Output Voltage Hysteresis 2.1.10 Layout Consideration for Load Regulation 3.0 Typical Operating Curves FIGURE 3-1: MCP1502-10 VREF Output vs. Temperature, VDD = 5.5V. FIGURE 3-2: MCP1502-20 VREF Output vs. Temperature, VDD = 5.5V. FIGURE 3-3: MCP1502-40 VREF Output vs. Temperature, VDD = 5.5V. FIGURE 3-4: Load Regulation vs. Temperature. FIGURE 3-5: IDD vs. Temperature. FIGURE 3-6: MCP1502 – Line Regulation vs. Temperature. FIGURE 3-7: IDD vs. VDD for All Options. FIGURE 3-8: Noise vs. Frequency, No Load, TA = +25°C. FIGURE 3-9: PSRR vs. Frequency, No Load, TA = +25°C. FIGURE 3-10: PSRR vs. Frequency, 1 kΩ Load, TA = +25°C. FIGURE 3-11: Dropout Voltage vs. Load, TA = +25°C. FIGURE 3-12: MCP1502 Tempco Distribution, No Load, VDD = 2.7V. FIGURE 3-13: MCP1502 Tempco Distribution, No Load, VDD = 5.5V. FIGURE 3-14: VOUT Drift vs. Time, TA = +25°C, No Load, 800 Units. FIGURE 3-15: MCP1502-10 VREF and Load Regulation vs. Load Current. FIGURE 3-16: MCP1502-20 VREF and Load Regulation vs. Load Current. FIGURE 3-17: MCP1502-40 VREF and Load Regulation vs. Load Current. FIGURE 3-18: MCP1502 Output Voltage Histogram, VDD = 2.7V. FIGURE 3-19: MCP1502 Output Voltage Histogram, VDD = 5.5V. FIGURE 3-20: Fast Ramp Start-up @ +25°C for All Options. FIGURE 3-21: Slow Ramp Start-up @ +25°C for All Options. FIGURE 3-22: IDD Turn-On Transient Response. FIGURE 3-23: Shut down Low-to-High Slow Ramp Turn-On Transient Response @ +25°C for All Options. FIGURE 3-24: Load Regulation Transient Response @ +25°C for All Options. FIGURE 3-25: Line Regulation Transient Response @ +25°C for All Options. FIGURE 3-26: MCP1502-10 Transient Response vs. Capacitive Load, VDD = 5V. FIGURE 3-27: MCP1502-20 Transient Response vs. Capacitive Load, VDD = 5V. FIGURE 3-28: MCP1502-40 Transient Response vs. Capacitive Load, VDD = 5V. FIGURE 3-29: MCP1502-10 Transient Response vs. RS, VDD = 5V, CL = 4.7 nF. FIGURE 3-30: MCP1502-20 Transient Response vs. RS, VDD = 5V, CL = 4.7 nF. FIGURE 3-31: MCP1502-40 Transient Response vs. RS, VDD = 5V, CL = 4.7 nF. FIGURE 3-32: MCP1502-10 Transient Response vs. VDD, CL = 4.7 nF. FIGURE 3-33: MCP1502-20 Transient Response vs. VDD, CL = 4.7 nF. FIGURE 3-34: MCP1502-40 Transient Response vs. VDD, CL = 4.7 nF. 4.0 Theory of Operation 5.0 Application Circuits 5.1 Application Tips 5.1.1 Basic Application Circuit FIGURE 5-1: Basic Circuit Configuration. FIGURE 5-2: Output Noise Reducing Filter. EQUATION 5-1: 5.1.2 Load Capacitor 5.1.3 Printed Circuit Board Layout Considerations 5.2 Typical Applications Circuits 5.2.1 Negative Voltage Reference FIGURE 5-3: Negative Voltage Reference. 5.2.2 A/D Converter Reference FIGURE 5-4: ADC Example Circuit. FIGURE 5-5: SAR ADC Example Circuit. 6.0 Package Information 6.1 Package Markings Package Drawings Appendix A: Revision History Product Identification System Trademarks Worldwide Sales and Service
