Datasheet STM32H7S3x8, STM32H7S7x8 (STMicroelectronics) - 3
| 制造商 | STMicroelectronics |
| 描述 | Arm Cortex -M7 32-bit 600 MHz MCU, 64 KB flash, 620 KB RAM, Ethernet, 2x USB, 2x FD-CAN, Advanced Graphics and Security, 2x12-bit ADCs |
| 页数 / 页 | 320 / 3 — STM32H7Sxx8 Contents Contents. 1 Introduction . 14 2 Description 15 3 … |
| 文件格式/大小 | PDF / 4.9 Mb |
| 文件语言 | 英语 |

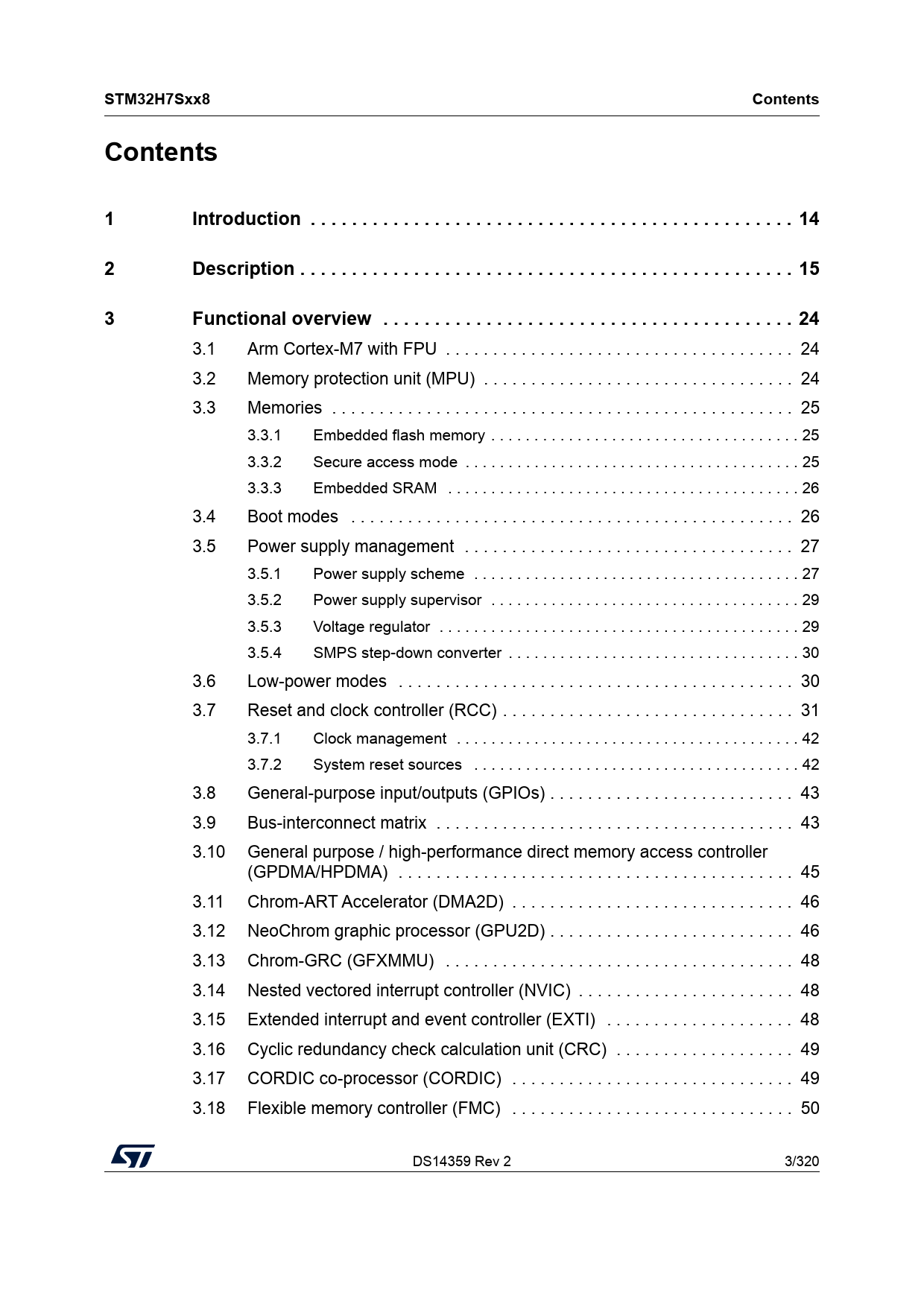

STM32H7Sxx8 Contents Contents. 1 Introduction . 14 2 Description 15 3 Functional overview 24
该数据表的模型线
文件文字版本
STM32H7Sxx8 Contents Contents
1 Introduction . 14 2 Description 15 3 Functional overview 24
3.1 Arm Cortex-M7 with FPU . 24 3.2 Memory protection unit (MPU) . 24 3.3 Memories . 25
3.3.1 Embedded flash memory 25 3.3.2 Secure access mode . 25 3.3.3 Embedded SRAM . 26 3.4 Boot modes . 26 3.5 Power supply management . 27
3.5.1 Power supply scheme 27 3.5.2 Power supply supervisor 29 3.5.3 Voltage regulator 29 3.5.4 SMPS step-down converter 30 3.6 Low-power modes 30 3.7 Reset and clock controller (RCC) . 31
3.7.1 Clock management 42 3.7.2 System reset sources 42 3.8 General-purpose input/outputs (GPIOs) 43 3.9 Bus-interconnect matrix 43 3.10 General purpose / high-performance direct memory access controller
(GPDMA/HPDMA) 45 3.11 Chrom-ART Accelerator (DMA2D) 46 3.12 NeoChrom graphic processor (GPU2D) 46 3.13 Chrom-GRC (GFXMMU) . 48 3.14 Nested vectored interrupt controller (NVIC) . 48 3.15 Extended interrupt and event controller (EXTI) 48 3.16 Cyclic redundancy check calculation unit (CRC) . 49 3.17 CORDIC co-processor (CORDIC) 49 3.18 Flexible memory controller (FMC) 50
