Datasheet MOC3051M, MOC3052M, MOC3053M (ON Semiconductor)
| 制造商 | ON Semiconductor |
| 描述 | 6-Pin DIP Random-Phase Triac Driver Optocoupler (600 Volt Peak) |
| 页数 / 页 | 13 / 1 — DATA SHEET. www.onsemi.com. PDIP6. CASE 646BY. CASE 646BZ. CASE 646BX. … |
| 文件格式/大小 | PDF / 405 Kb |
| 文件语言 | 英语 |

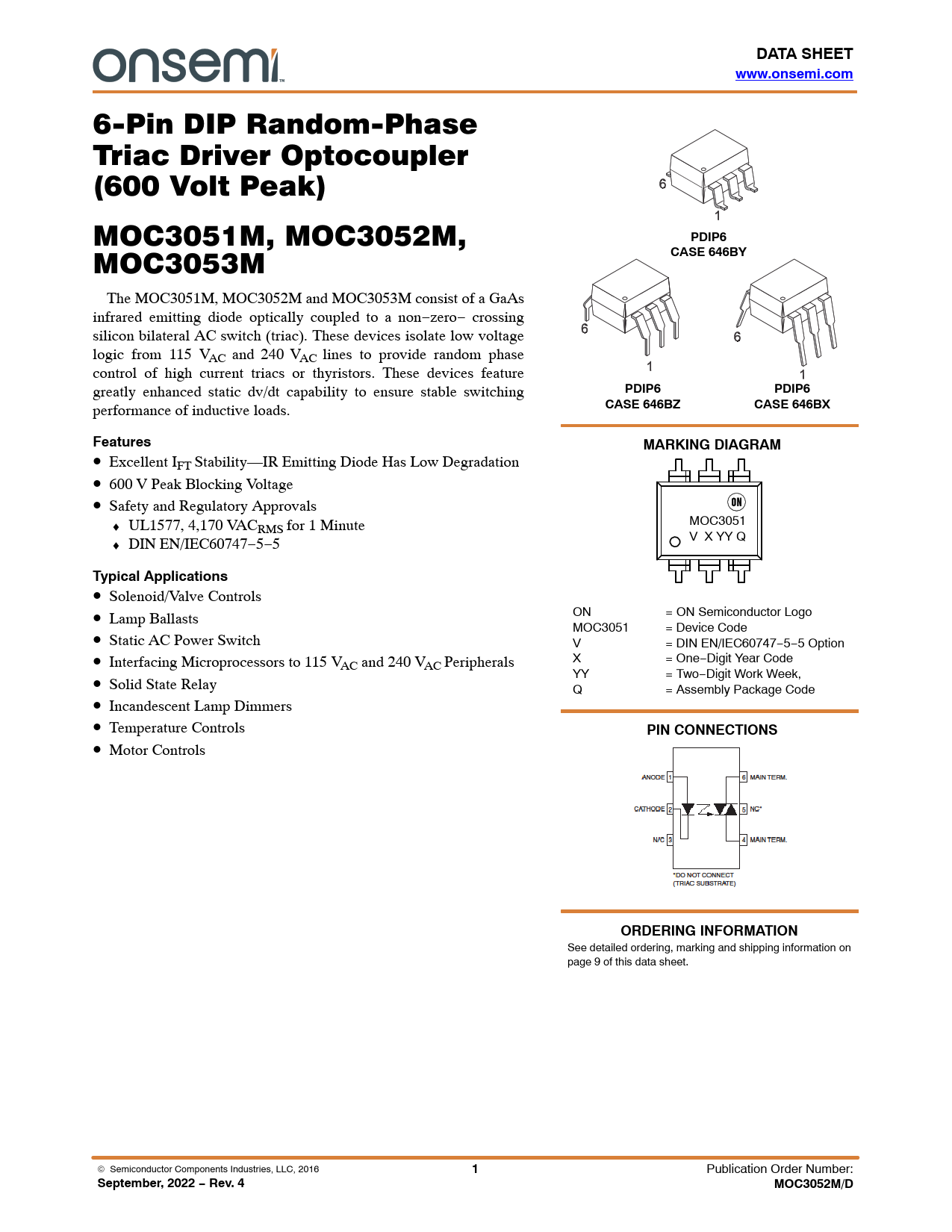

DATA SHEET. www.onsemi.com. PDIP6. CASE 646BY. CASE 646BZ. CASE 646BX. Features. MARKING DIAGRAM. Typical Applications. PIN CONNECTIONS
该数据表的模型线
文件文字版本
link to page 9
DATA SHEET www.onsemi.com
6-Pin DIP Random-Phase Triac Driver Optocoupler (600 Volt Peak) MOC3051M, MOC3052M,
PDIP6 CASE 646BY
MOC3053M The MOC3051M, MOC3052M and MOC3053M consist of a GaAs infrared emitting diode optically coupled to a non−zero− crossing silicon bilateral AC switch (triac). These devices isolate low voltage logic from 115 VAC and 240 VAC lines to provide random phase control of high current triacs or thyristors. These devices feature greatly enhanced static dv/dt capability to ensure stable switching
PDIP6 PDIP6
performance of inductive loads.
CASE 646BZ CASE 646BX Features MARKING DIAGRAM
• Excellent IFT Stability—IR Emitting Diode Has Low Degradation • 600 V Peak Blocking Voltage • Safety and Regulatory Approvals ♦ UL1577, 4,170 VAC MOC3051 RMS for 1 Minute V X YY Q ♦ DIN EN/IEC60747−5−5
Typical Applications
• Solenoid/Valve Controls • Lamp Ballasts ON = ON Semiconductor Logo MOC3051 = Device Code • Static AC Power Switch V = DIN EN/IEC60747−5−5 Option • Interfacing Microprocessors to 115 V X = One−Digit Year Code AC and 240 VAC Peripherals • YY = Two−Digit Work Week, Solid State Relay Q = Assembly Package Code • Incandescent Lamp Dimmers • Temperature Controls
PIN CONNECTIONS
• Motor Controls
ORDERING INFORMATION
See detailed ordering, marking and shipping information on page 9 of this data sheet. © Semiconductor Components Industries, LLC, 2016
1
Publication Order Number:
September, 2022 − Rev. 4 MOC3052M/D
