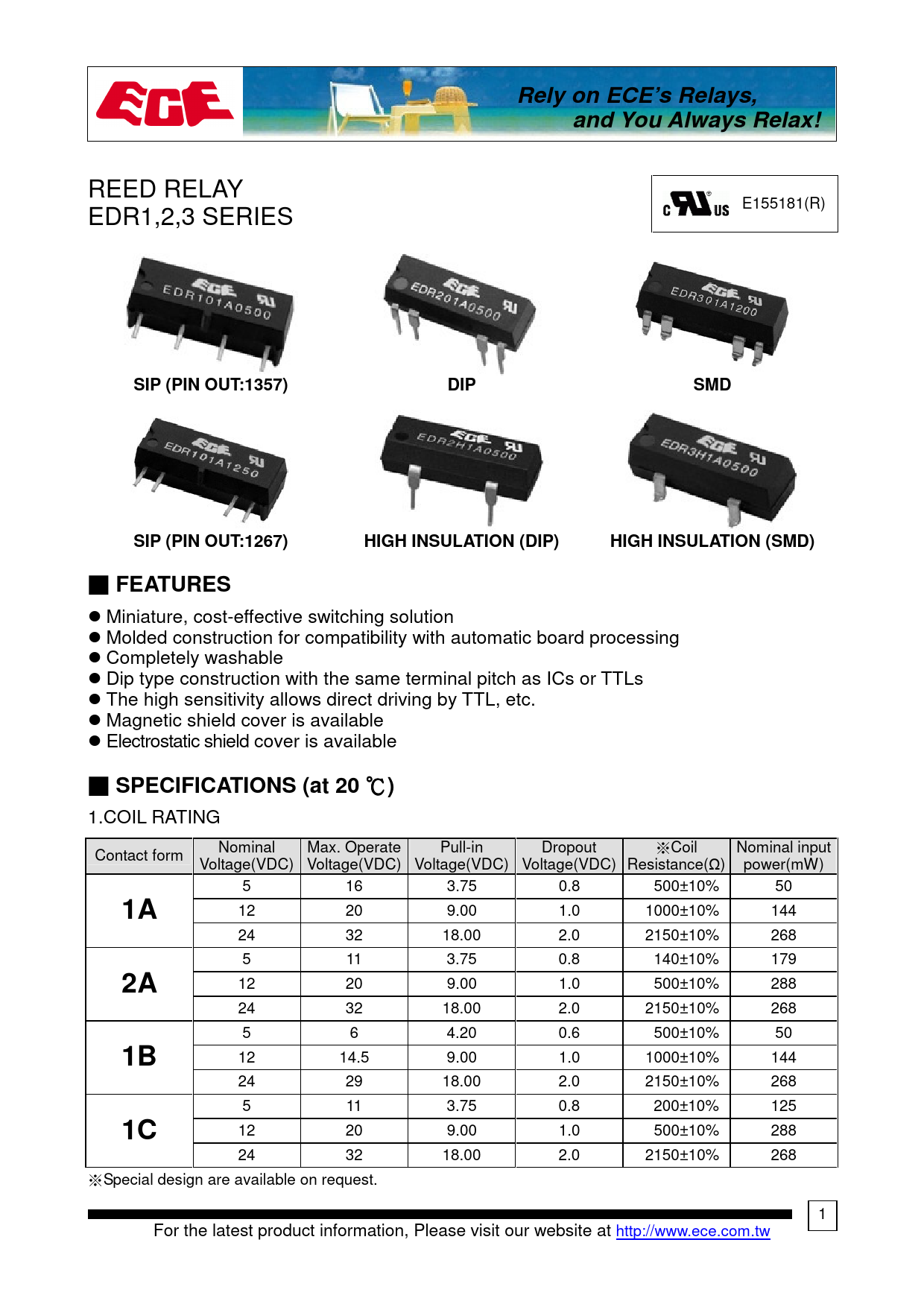

Rely on ECE’s Relays, and You Always Relax!
REED RELAY EDR1,2,3 SERIES E155181(R)
SIP (PIN OUT:1357) DIP SMD SIP (PIN OUT:1267) HIGH INSULATION (DIP) HIGH INSULATION (SMD)
■
FEATURES
Miniature, cost-effective switching solution Molded construction for compatibility with automatic board processing Completely washable Dip type construction with the same terminal pitch as ICs or TTLs The high sensitivity allows direct driving by TTL, etc. Magnetic shield cover is available Electrostatic shield cover is available ■
SPECIFICATIONS (at 20
℃
)
1.COIL RATING Nominal Max. Operate Pull-in Dropout ※Coil Nominal input Contact form Voltage(VDC) Voltage(VDC) Voltage(VDC) Voltage(VDC) Resistance(Ω) power(mW) 5 16 3.75 0.8 500±10% 50 12 20 9.00 1.0 1000±10% 144
1A
24 32 18.00 2.0 2150±10% 268 5 11 3.75 0.8 140±10% 179 12 20 9.00 1.0 500±10% 288
2A
24 32 18.00 2.0 2150±10% 268 5 6 4.20 0.6 500±10% 50 12 14.5 9.00 1.0 1000±10% 144
1B
24 29 18.00 2.0 2150±10% 268 5 11 3.75 0.8 200±10% 125 12 20 9.00 1.0 500±10% 288
1C
24 32 18.00 2.0 2150±10% 268 ※Special design are available on request. 1 For the latest product information, Please visit our website at http://www.ece.com.tw
