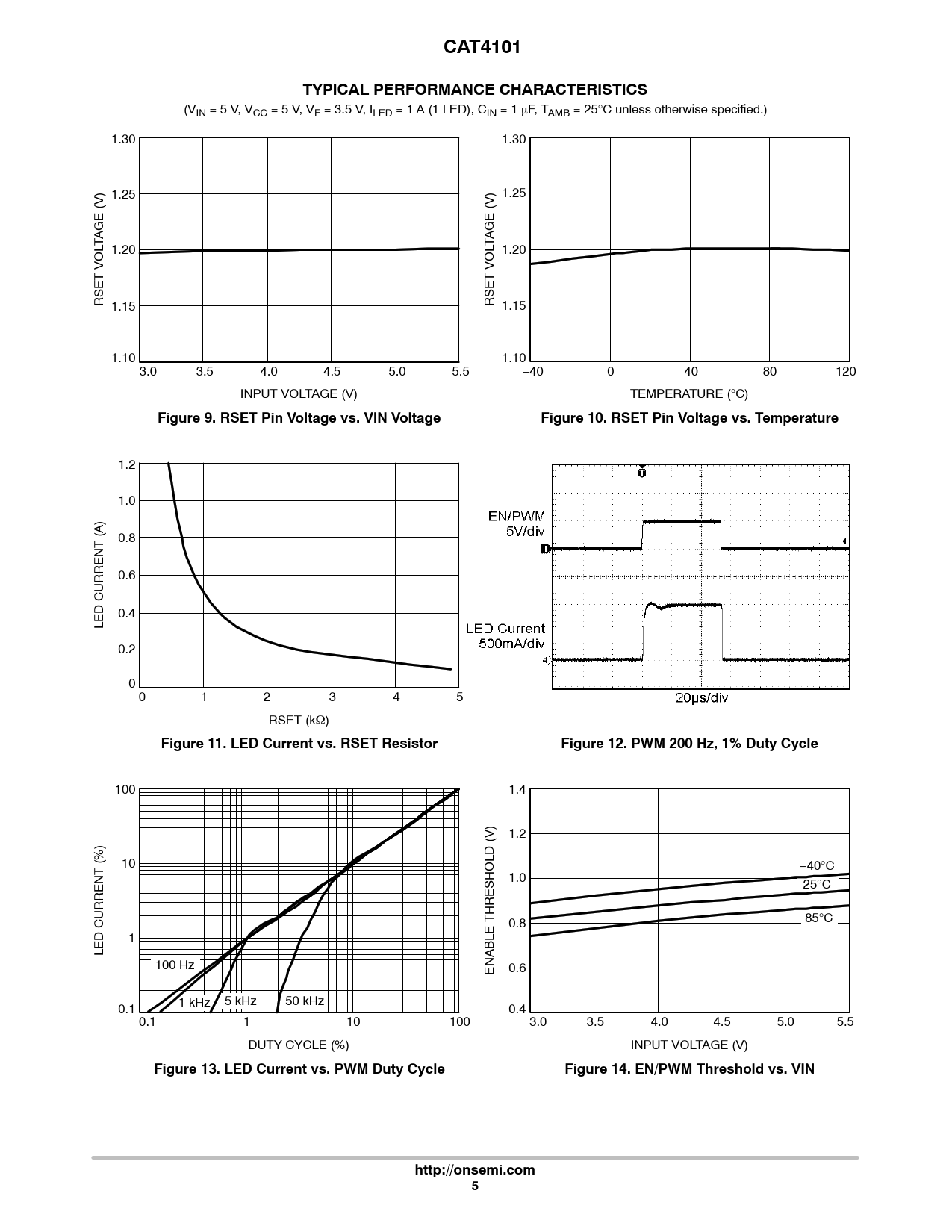

CAT4101. TYPICAL PERFORMANCE CHARACTERISTICS. Figure 9. RSET Pin Voltage vs. VIN Voltage
该数据表的模型线
文件文字版本
CAT4101 TYPICAL PERFORMANCE CHARACTERISTICS
(VIN = 5 V, VCC = 5 V, VF = 3.5 V, ILED = 1 A (1 LED), CIN = 1 mF, TAMB = 25°C unless otherwise specified.) 1.30 1.30 1.25 1.25 TAGE (V) TAGE (V) 1.20 1.20 RSET VOL 1.15 RSET VOL 1.15 1.10 1.10 3.0 3.5 4.0 4.5 5.0 5.5 −40 0 40 80 120 INPUT VOLTAGE (V) TEMPERATURE (°C)
Figure 9. RSET Pin Voltage vs. VIN Voltage Figure 10. RSET Pin Voltage vs. Temperature
1.2 1.0 0.8 0.6 0.4 LED CURRENT (A) 0.2 0 0 1 2 3 4 5 RSET (kW)
Figure 11. LED Current vs. RSET Resistor Figure 12. PWM 200 Hz, 1% Duty Cycle
100 1.4 1.2 10 −40°C 1.0 25°C 0.8 85°C 1 LED CURRENT (%) 100 Hz ENABLE THRESHOLD (V) 0.6 0.1 1 kHz 5 kHz 50 kHz 0.4 0.1 1 10 100 3.0 3.5 4.0 4.5 5.0 5.5 DUTY CYCLE (%) INPUT VOLTAGE (V)
Figure 13. LED Current vs. PWM Duty Cycle Figure 14. EN/PWM Threshold vs. VIN http://onsemi.com 5
