Datasheet MIC5209 (Microchip) - 10
| 制造商 | Microchip |
| 描述 | 500 mA Low-Noise LDO Regulator |
| 页数 / 页 | 30 / 10 — MIC5209. FIGURE 2-13:. FIGURE 2-14:. FIGURE 2-15: |
| 文件格式/大小 | PDF / 2.9 Mb |
| 文件语言 | 英语 |
MIC5209. FIGURE 2-13:. FIGURE 2-14:. FIGURE 2-15:
该数据表的模型线
- MIC5209-1.8YM MIC5209-1.8YM-TR MIC5209-1.8YU MIC5209-1.8YU-TR MIC5209-2.5YM MIC5209-2.5YM-TR MIC5209-2.5YS MIC5209-2.5YS-TR MIC5209-2.5YU MIC5209-2.5YU-TR MIC5209-3.0YM MIC5209-3.0YM-TR MIC5209-3.0YS MIC5209-3.0YS-TR MIC5209-3.0YU MIC5209-3.0YU-TR MIC5209-3.3YM MIC5209-3.3YM-TR MIC5209-3.3YS MIC5209-3.3YS-TR MIC5209-3.3YU MIC5209-3.3YU-TR MIC5209-3.6YM MIC5209-3.6YM-TR MIC5209-3.6YS MIC5209-3.6YS-TR MIC5209-3.6YU MIC5209-3.6YU-TR MIC5209-4.2YS MIC5209-4.2YS-TR MIC5209-5.0YM MIC5209-5.0YM-TR MIC5209-5.0YS MIC5209-5.0YS-TR MIC5209-5.0YU MIC5209-5.0YU-TR MIC5209YM MIC5209YM-TR MIC5209YML-T5 MIC5209YML-TR MIC5209YU MIC5209YU-TR
文件文字版本

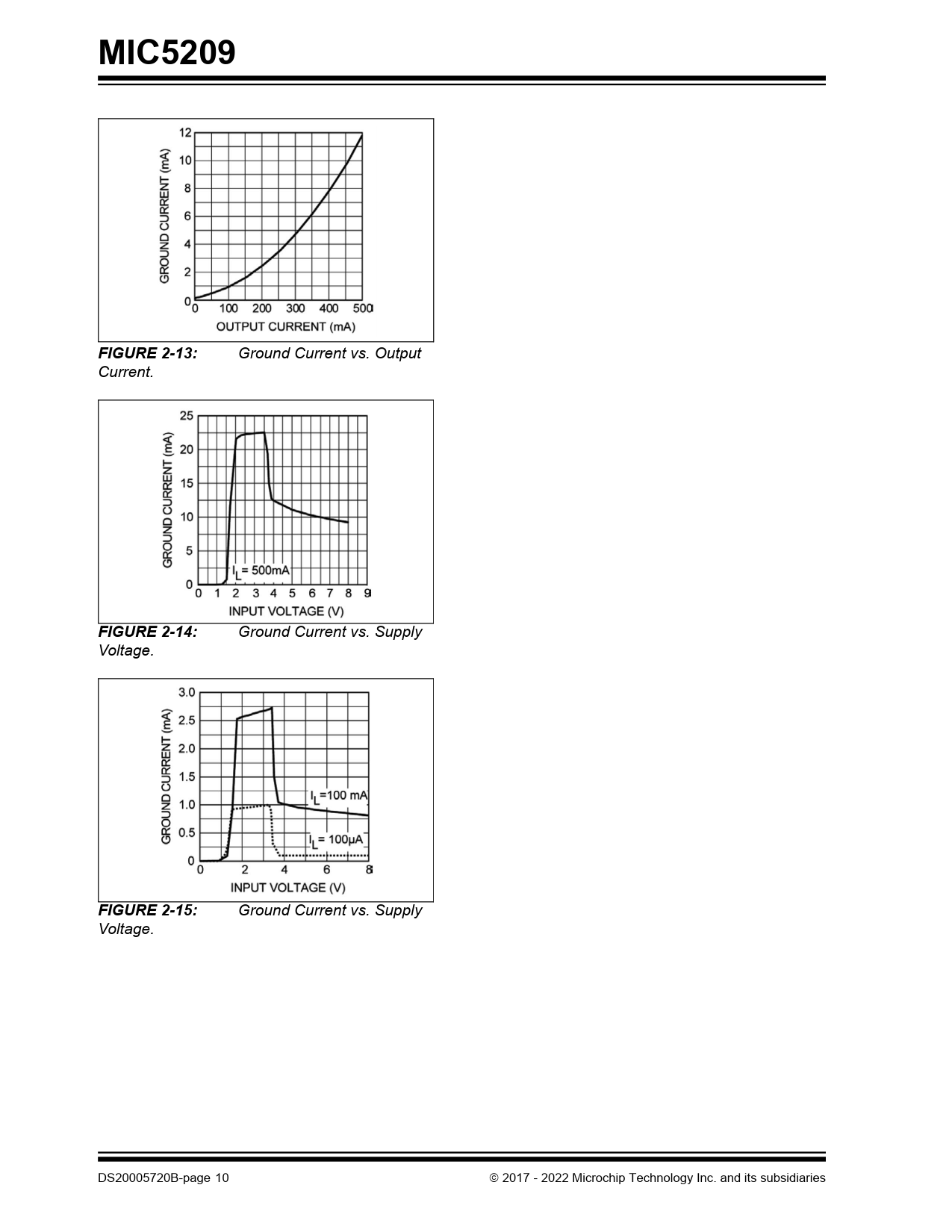

MIC5209 FIGURE 2-13:
Ground Current vs. Output Current.
FIGURE 2-14:
Ground Current vs. Supply Voltage.
FIGURE 2-15:
Ground Current vs. Supply Voltage. DS20005720B-page 10 2017 - 2022 Microchip Technology Inc. and its subsidiaries Document Outline 1.0 Electrical Characteristics 2.0 Typical Performance Curves 3.0 Pin Descriptions 4.0 Applications Information 4.1 Enable/Shutdown 4.2 Input Capacitor 4.3 Output Capacitor 4.4 No-Load Stability 4.5 Reference Bypass Capacitor 4.6 Thermal Considerations 4.7 Low-Voltage Operation 4.8 Fixed Regulator Applications 4.9 Adjustable Regulator Applications 4.10 Slot-1 Power Supply 5.0 Packaging Information 5.1 Package Marking Information Appendix A: Revision History Product Identification System Worldwide Sales and Service
