Datasheet BTA04, BTB04 (STMicroelectronics) - 6
| 制造商 | STMicroelectronics |
| 描述 | Sensitive Gate Triacs |
| 页数 / 页 | 6 / 6 — BTA04 T/D/S/A BTB04 T/D/S/A. PACKAGE MECHANICAL DATA. DIMENSIONS. REF. … |
| 文件格式/大小 | PDF / 449 Kb |
| 文件语言 | 英语 |
BTA04 T/D/S/A BTB04 T/D/S/A. PACKAGE MECHANICAL DATA. DIMENSIONS. REF. Millimeters. Inches. Min. Typ. Max. Min. Typ. Max
该数据表的模型线
文件文字版本

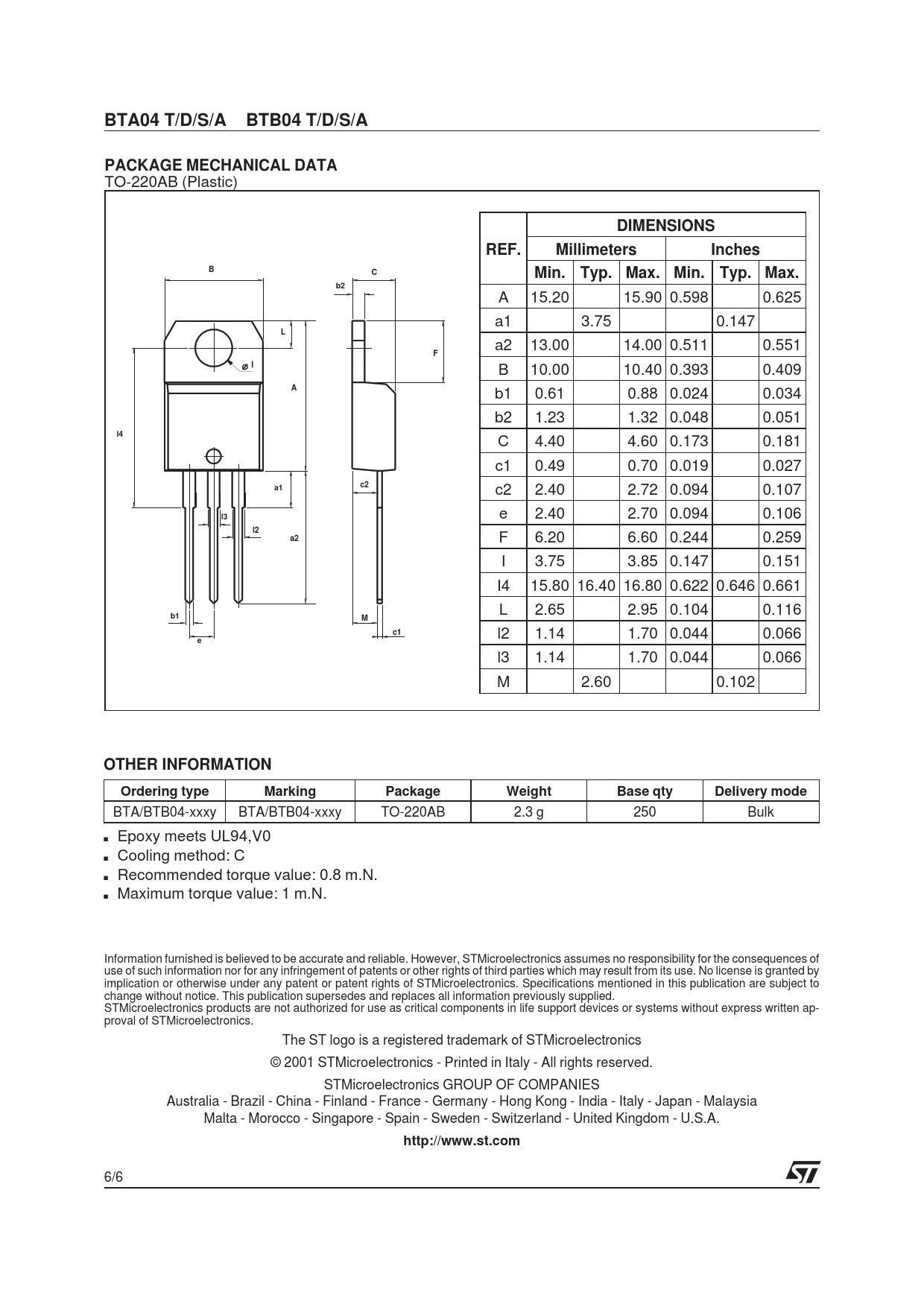

BTA04 T/D/S/A BTB04 T/D/S/A PACKAGE MECHANICAL DATA
TO-220AB (Plastic)
DIMENSIONS REF. Millimeters Inches B C Min. Typ. Max. Min. Typ. Max. b2
A 15.20 15.90 0.598 0.625 a1 3.75 0.147
L
a2 13.00 14.00 0.511 0.551
F I
B 10.00 10.40 0.393 0.409
A
b1 0.61 0.88 0.024 0.034 b2 1.23 1.32 0.048 0.051
l4
C 4.40 4.60 0.173 0.181 c1 0.49 0.70 0.019 0.027
c2 a1
c2 2.40 2.72 0.094 0.107
l3
e 2.40 2.70 0.094 0.106
l2 a2
F 6.20 6.60 0.244 0.259 I 3.75 3.85 0.147 0.151 I4 15.80 16.40 16.80 0.622 0.646 0.661 L 2.65 2.95 0.104 0.116
b1 M c1
l2 1.14 1.70 0.044 0.066
e
l3 1.14 1.70 0.044 0.066 M 2.60 0.102
OTHER INFORMATION Ordering type Marking Package Weight Base qty Delivery mode
BTA/BTB04-xxxy BTA/BTB04-xxxy TO-220AB 2.3 g 250 Bulk ■ Epoxy meets UL94,V0 ■ Cooling method: C ■ Recommended torque value: 0.8 m.N. ■ Maximum torque value: 1 m.N. Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written ap- proval of STMicroelectronics. The ST logo is a registered trademark of STMicroelectronics © 2001 STMicroelectronics - Printed in Italy - All rights reserved. STMicroelectronics GROUP OF COMPANIES Australia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Malaysia Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A.
http://www.st.com
6/6
