页数 / 页5 / 4 — QSE773 — Sidelooker Pin Photodiode. Typical Performance Curves. Fig. 1 …
修订版2
文件格式/大小PDF / 826 Kb
文件语言英语

QSE773 — Sidelooker Pin Photodiode. Typical Performance Curves. Fig. 1 Relative Spectral Sensitivity vs. Wavelength

QSE773 — Sidelooker Pin Photodiode Typical Performance Curves Fig 1 Relative Spectral Sensitivity vs Wavelength

该数据表的模型线

文件文字版本

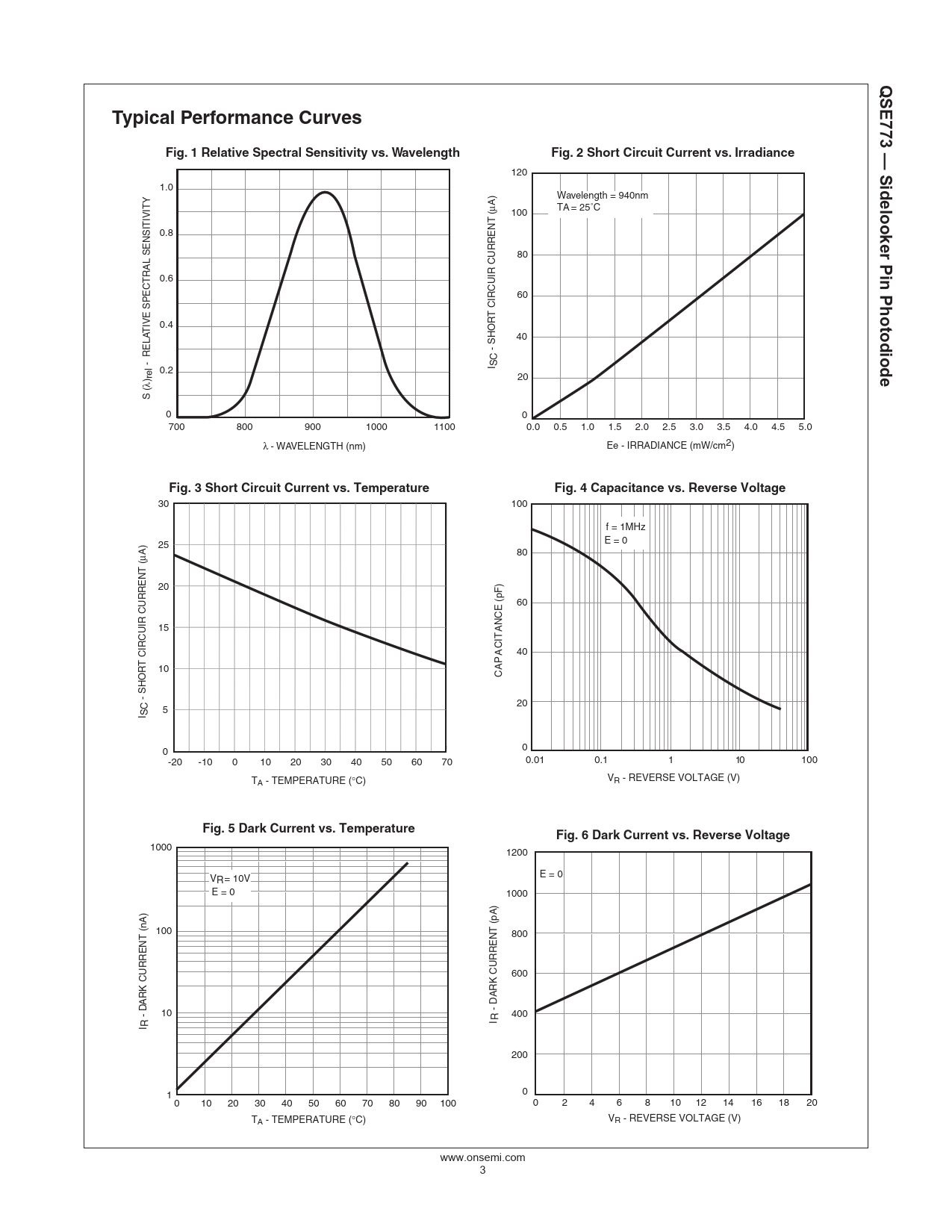

QSE773 — Sidelooker Pin Photodiode Typical Performance Curves Fig. 1 Relative Spectral Sensitivity vs. Wavelength Fig. 2 Short Circuit Current vs. Irradiance
