Datasheet CA3280, CA3280A (Intersil)

制造商Intersil
描述Dual, 9MHz, Operational Transconductance Amplifier (OTA)
页数 / 页10 / 1 — Features. Applications. Pinout. CA3280 (PDIP). D, A1. +IN, A1. Functional …
文件格式/大小PDF / 664 Kb
文件语言英语

Features. Applications. Pinout. CA3280 (PDIP). D, A1. +IN, A1. Functional Diagram. EMITTER, A1 2. 15 -IN, A1. ABC, A1. V+, A1. V- 4. 13 OUT, A1

Datasheet CA3280, CA3280A Intersil

该数据表的模型线

文件文字版本

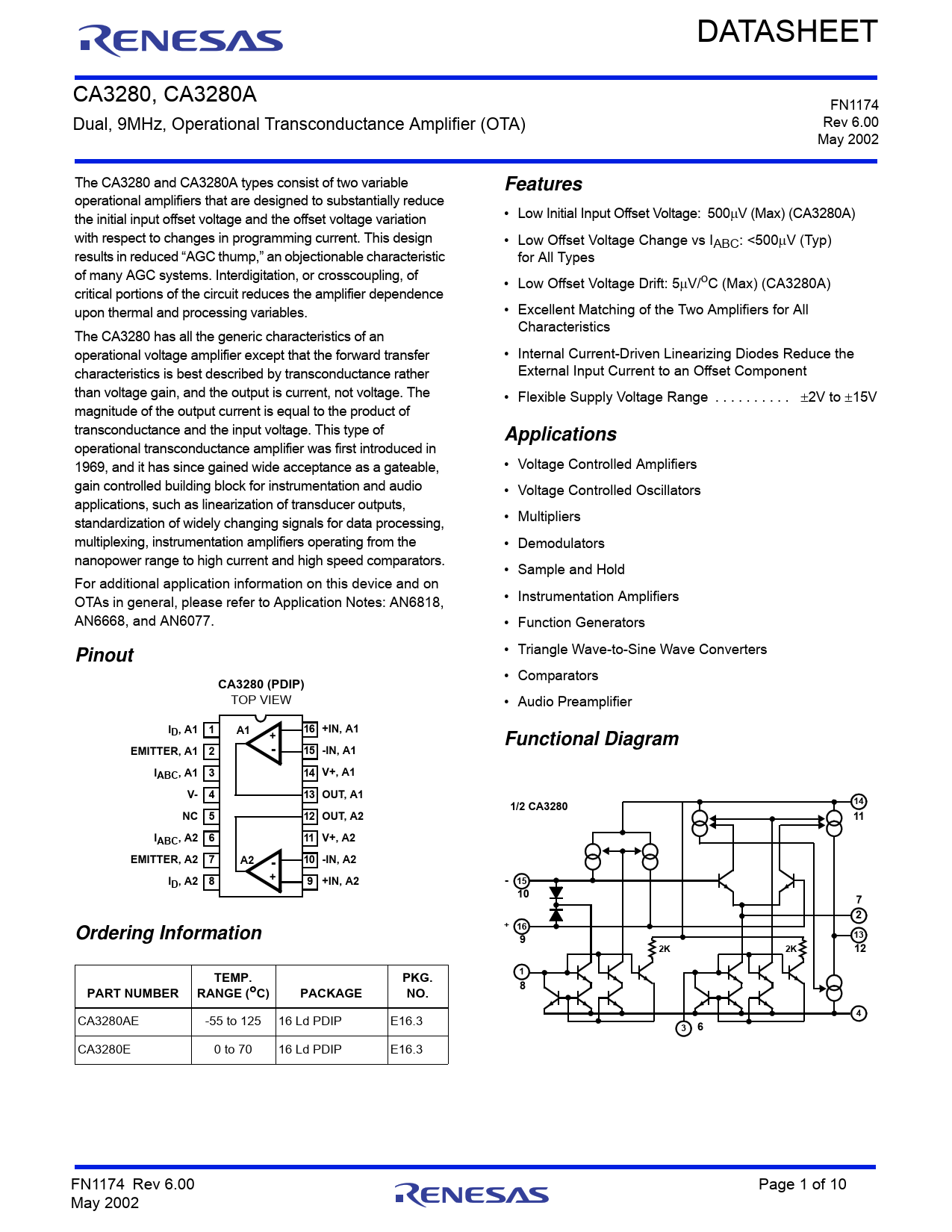

DATASHEET CA3280, CA3280A FN1174 Dual, 9MHz, Operational Transconductance Amplifier (OTA) Rev 6.00 May 2002 The CA3280 and CA3280A types consist of two variable
Features
operational amplifiers that are designed to substantially reduce the initial input offset voltage and the offset voltage variation • Low Initial Input Offset Voltage: 500V (Max) (CA3280A) with respect to changes in programming current. This design • Low Offset Voltage Change vs IABC: <500V (Typ) results in reduced “AGC thump,” an objectionable characteristic for All Types of many AGC systems. Interdigitation, or crosscoupling, of • Low Offset Voltage Drift: 5V/oC (Max) (CA3280A) critical portions of the circuit reduces the amplifier dependence upon thermal and processing variables. • Excellent Matching of the Two Amplifiers for All Characteristics The CA3280 has all the generic characteristics of an operational voltage amplifier except that the forward transfer • Internal Current-Driven Linearizing Diodes Reduce the characteristics is best described by transconductance rather External Input Current to an Offset Component than voltage gain, and the output is current, not voltage. The • Flexible Supply Voltage Range . 2V to 15V magnitude of the output current is equal to the product of transconductance and the input voltage. This type of
Applications
operational transconductance amplifier was first introduced in 1969, and it has since gained wide acceptance as a gateable, • Voltage Controlled Amplifiers gain controlled building block for instrumentation and audio • Voltage Controlled Oscillators applications, such as linearization of transducer outputs, standardization of widely changing signals for data processing, • Multipliers multiplexing, instrumentation amplifiers operating from the • Demodulators nanopower range to high current and high speed comparators. • Sample and Hold For additional application information on this device and on OTAs in general, please refer to Application Notes: AN6818, • Instrumentation Amplifiers AN6668, and AN6077. • Function Generators
Pinout
• Triangle Wave-to-Sine Wave Converters • Comparators
CA3280 (PDIP)
TOP VIEW • Audio Preamplifier
I 1 A1 16 D, A1 +IN, A1 + Functional Diagram EMITTER, A1 2 - 15 -IN, A1 I 3 14 ABC, A1 V+, A1 V- 4 13 OUT, A1 14 1/2 CA3280 NC 5 12 OUT, A2 11 I 6 11 ABC, A2 V+, A2 EMITTER, A2 7 A2 10 -IN, A2 - I 8 + 9 D, A2 +IN, A2 - 15 10 7 2 + Ordering Information 16 13 9 2K 2K 12 TEMP. PKG. 1 8 PART NUMBER RANGE (oC) PACKAGE NO. 4
CA3280AE -55 to 125 16 Ld PDIP E16.3
3 6
CA3280E 0 to 70 16 Ld PDIP E16.3 FN1174 Rev 6.00 Page 1 of 10 May 2002
