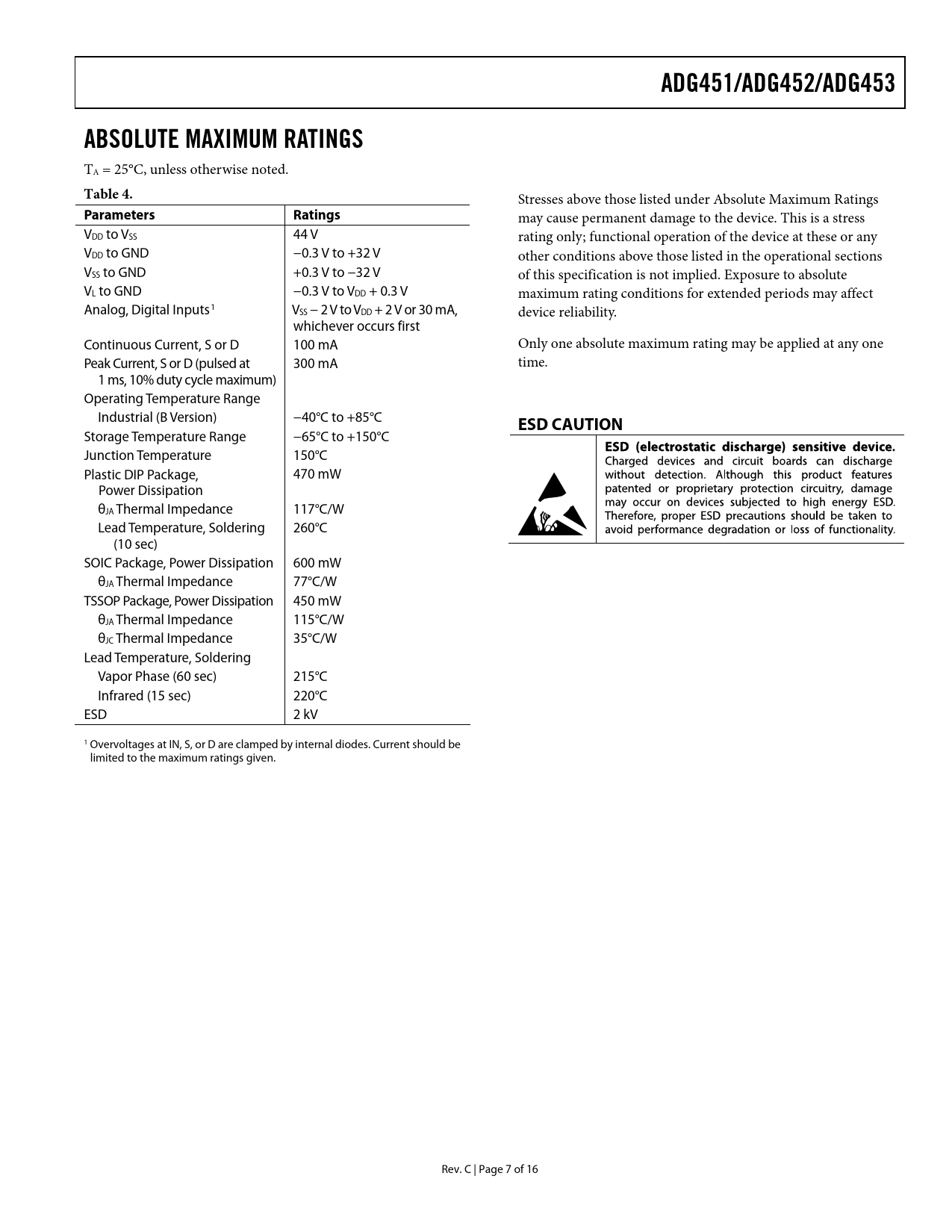

link to page 7 link to page 7 ADG451/ADG452/ADG453ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise noted. Table 4. Stresses above those listed under Absolute Maximum Ratings Parameters Ratings may cause permanent damage to the device. This is a stress VDD to VSS 44 V rating only; functional operation of the device at these or any VDD to GND −0.3 V to +32 V other conditions above those listed in the operational sections VSS to GND +0.3 V to −32 V of this specification is not implied. Exposure to absolute VL to GND −0.3 V to VDD + 0.3 V maximum rating conditions for extended periods may affect Analog, Digital Inputs1 VSS − 2 V to VDD + 2 V or 30 mA, device reliability. whichever occurs first Continuous Current, S or D 100 mA Only one absolute maximum rating may be applied at any one Peak Current, S or D (pulsed at 300 mA time. 1 ms, 10% duty cycle maximum) Operating Temperature Range Industrial (B Version) −40°C to +85°C ESD CAUTION Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Plastic DIP Package, 470 mW Power Dissipation θJA Thermal Impedance 117°C/W Lead Temperature, Soldering 260°C (10 sec) SOIC Package, Power Dissipation 600 mW θJA Thermal Impedance 77°C/W TSSOP Package, Power Dissipation 450 mW θJA Thermal Impedance 115°C/W θJC Thermal Impedance 35°C/W Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C ESD 2 kV 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. C | Page 7 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY PRODUCT HIGHLIGHTS SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY APPLICATIONS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
